Seat Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the buckle switch connector.
  3. Remove in the bolts, then remove the seat.
  4. Install in the reverse order of removal.

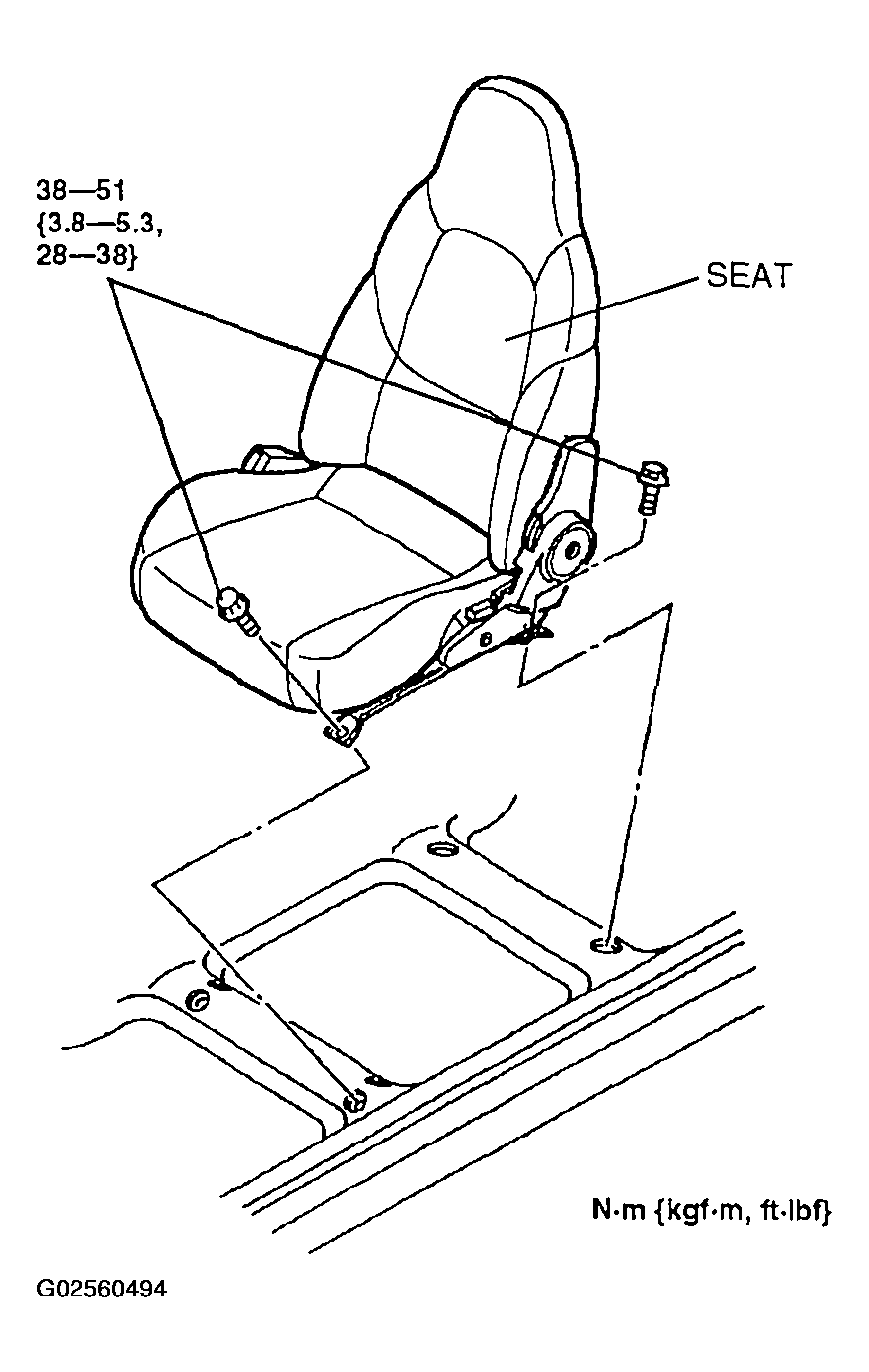

    Fig 1: Removing/Installing Seat
    G02560494Courtesy of MAZDA MOTORS CORP.
