Vertical Adjustment

  1. Measure the upper edge of the door glass and the retainer.
    • If not as specified, loosen the glass stopper installation bolts, move the glass stopper up or down and reposition the door glass.
    DOOR GLASS ADJUSTMENT

    Clearance Standard Minimum Maximum
    a 9.6{0.38} 6.6(0.26} 12.6{0.50}
    b 9.3{0.37} 6.3{0.25} 12.3{0.48}

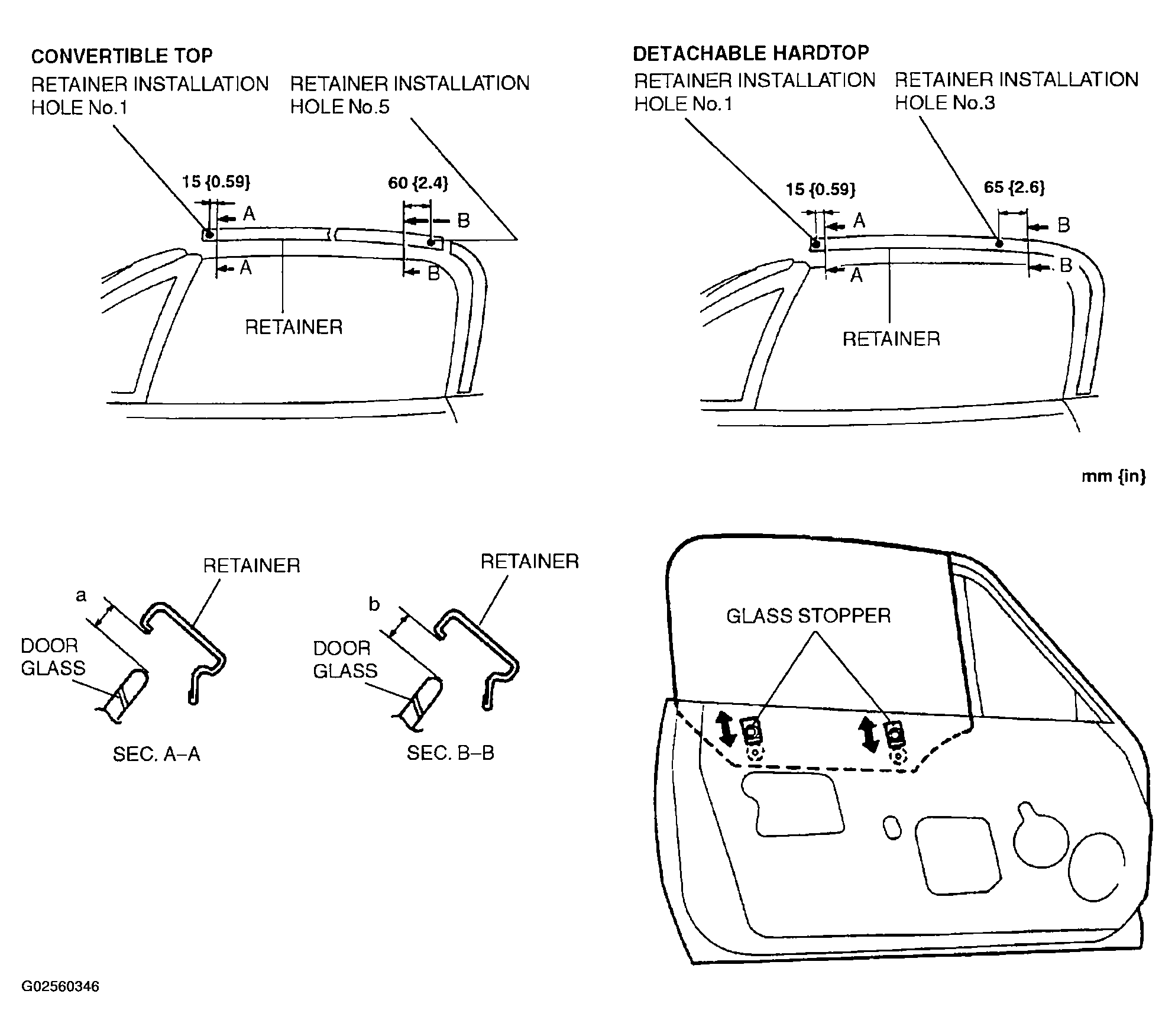

    Fig 1: Adjusting Door Glass - Vertical Adjustment
    G02560346Courtesy of MAZDA MOTORS CORP.
  2. Tighten the bolts.
