Trunk End Trim Removal/Installation: Notes

  1. Pull the internal trunk lid release handle to disengage it from the holder.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
    REMOVAL ORDER OF TRUNK END TRIM

    Removal Order Component
    1 Internal trunk lid release handle cover (See Internal Trunk Lid Release Handle Cover Installation Note )
    2 Fastener
    3 Trunk end trim

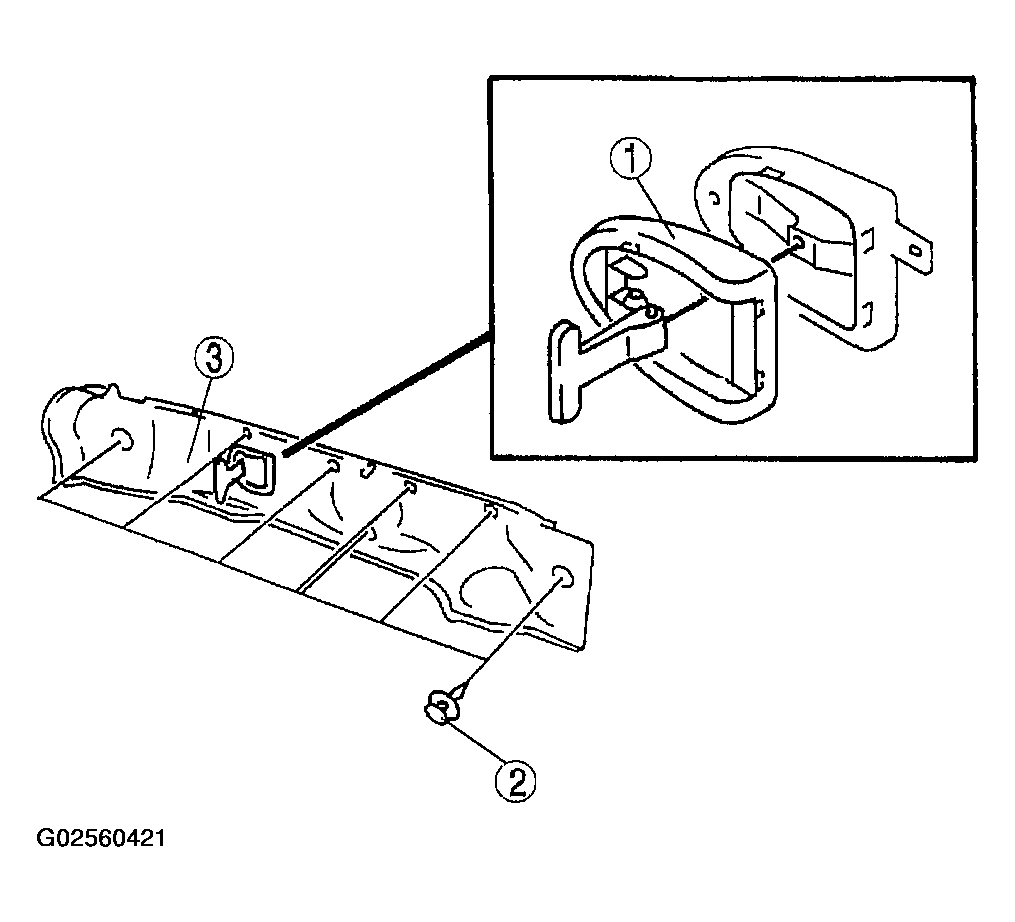

    Fig 1: Removing/Installing Trunk End Trim
    G02560421Courtesy of MAZDA MOTORS CORP.
