Scuff Plate Removal/Installation

  1. Pull the scuff plate upward, then disengage clips A, C and pin B from the body.
  2. Install in the reverse order of removal.

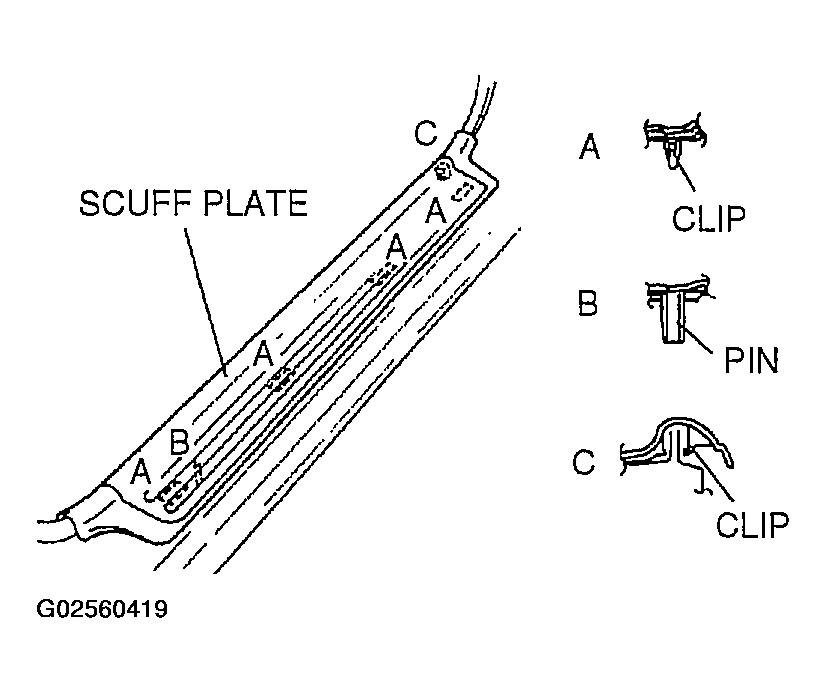

    Fig 1: Locating Scuff Plate Clips
    G02560419Courtesy of MAZDA MOTORS CORP.
