Rear End Mat Removal/Installation

  1. Remove the fasteners.
  2. Remove the rear end mat.
  3. Install in the reverse order of removal.

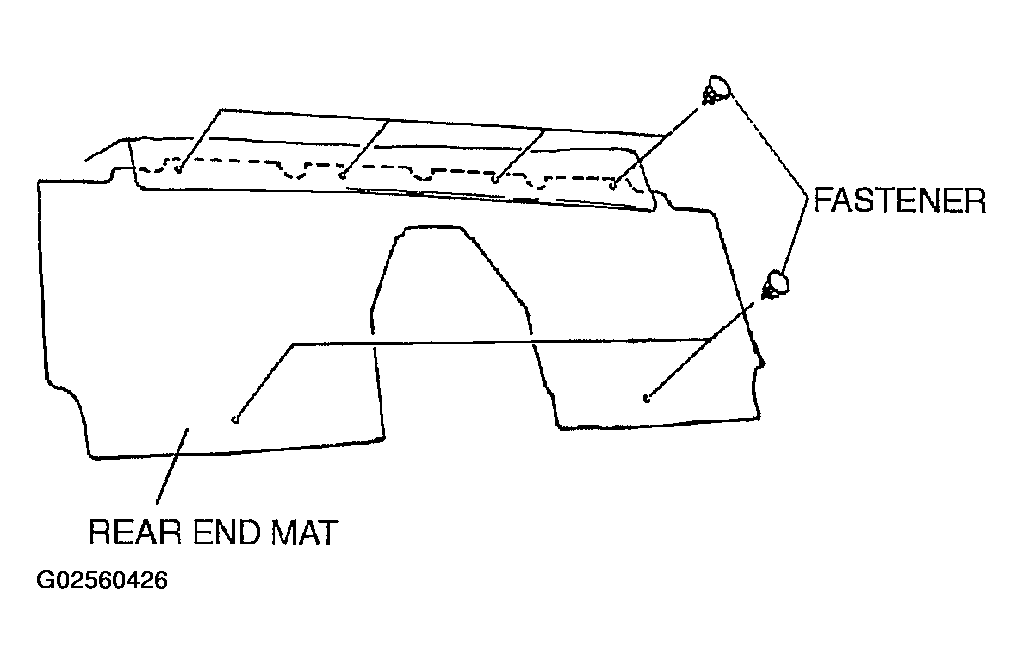

    Fig 1: Removing/Installing Rear End Mat
    G02560426Courtesy of MAZDA MOTORS CORP.
