Front Header Trim Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the striker.
  3. Remove the sunvisor.
  4. Remove the interior light. (See INTERIOR LIGHT REMOVAL/INSTALLATION .)
  5. Pull the front header trim toward you, then disengage the clips A, B and pin C from the body.
  6. Install in the reverse order of removal.

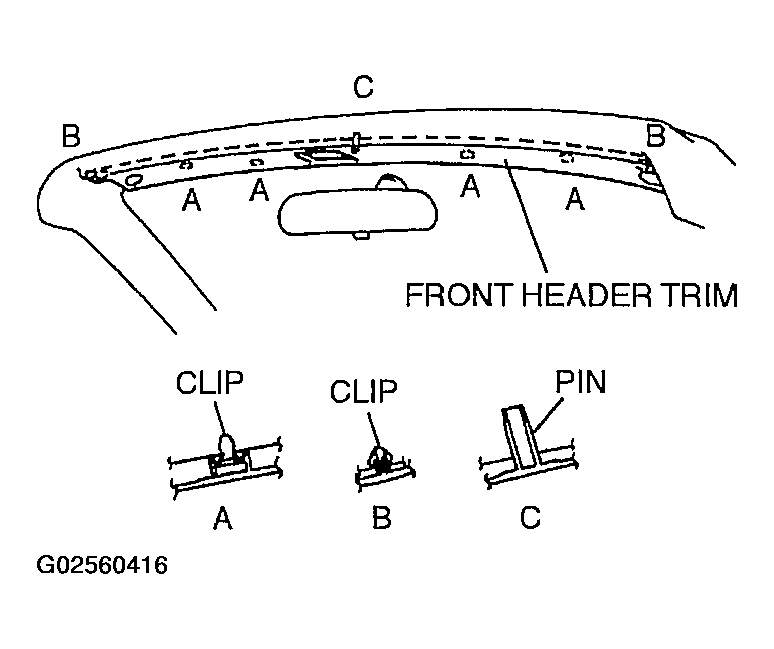

    Fig 1: Locating Front Header Trim Clips
    G02560416Courtesy of MAZDA MOTORS CORP.
