Console Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
    REMOVAL ORDER OF CONSOLE

    Removal Order Component
    1 Power window switch
    2 Shift lever knob (MT)
    3 Console
  3. Install in the reverse order of removal.

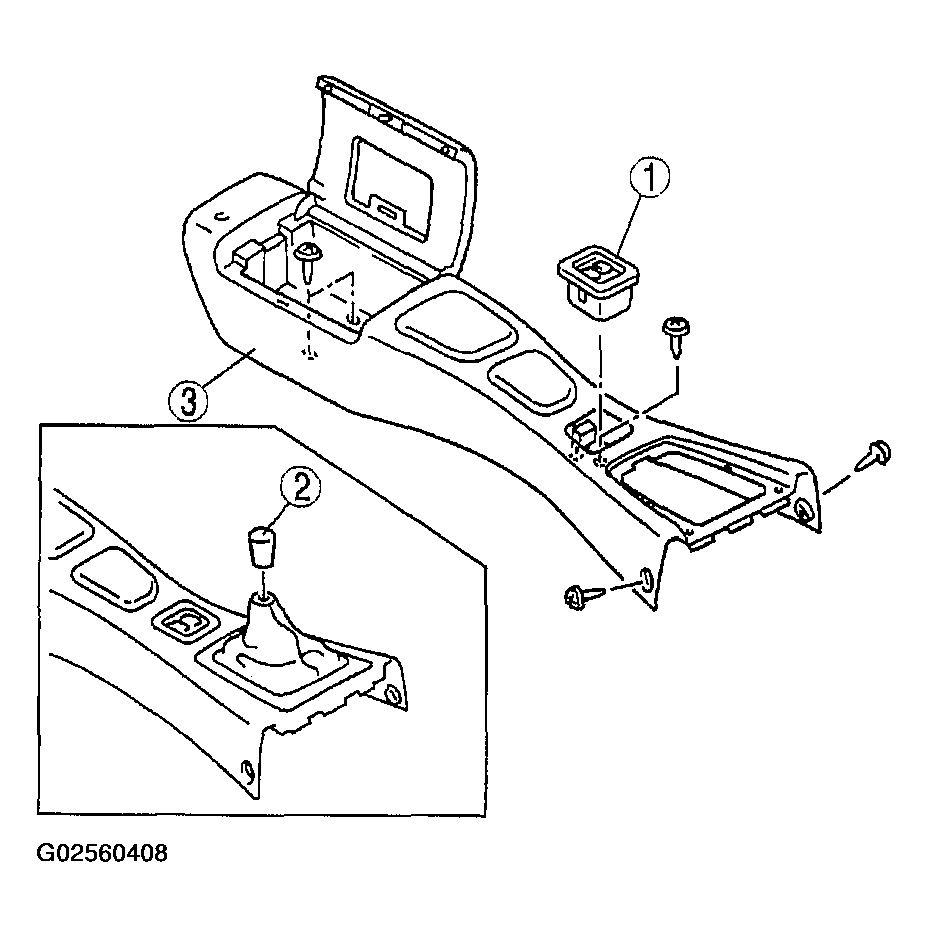

    Fig 1: Removing/Installing Console
    G02560408Courtesy of MAZDA MOTORS CORP.
