Console Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
    DISASSEMBLING ORDER OF CONSOLE

    Disassembling Order Component
    1 Cup holder
    2 Console panel
    3 Set plate (MT)
    4 Boot (MT)
    5 Console lid stopper
    6 Console lid inner
    7 Pin
    8 Console lid lock
    9 Console lid outer
    10 Cover
    11 Hole cover No.1
    12 Hole cover No.2
    13 Console
  2. Assemble in the reverse order of disassembly.

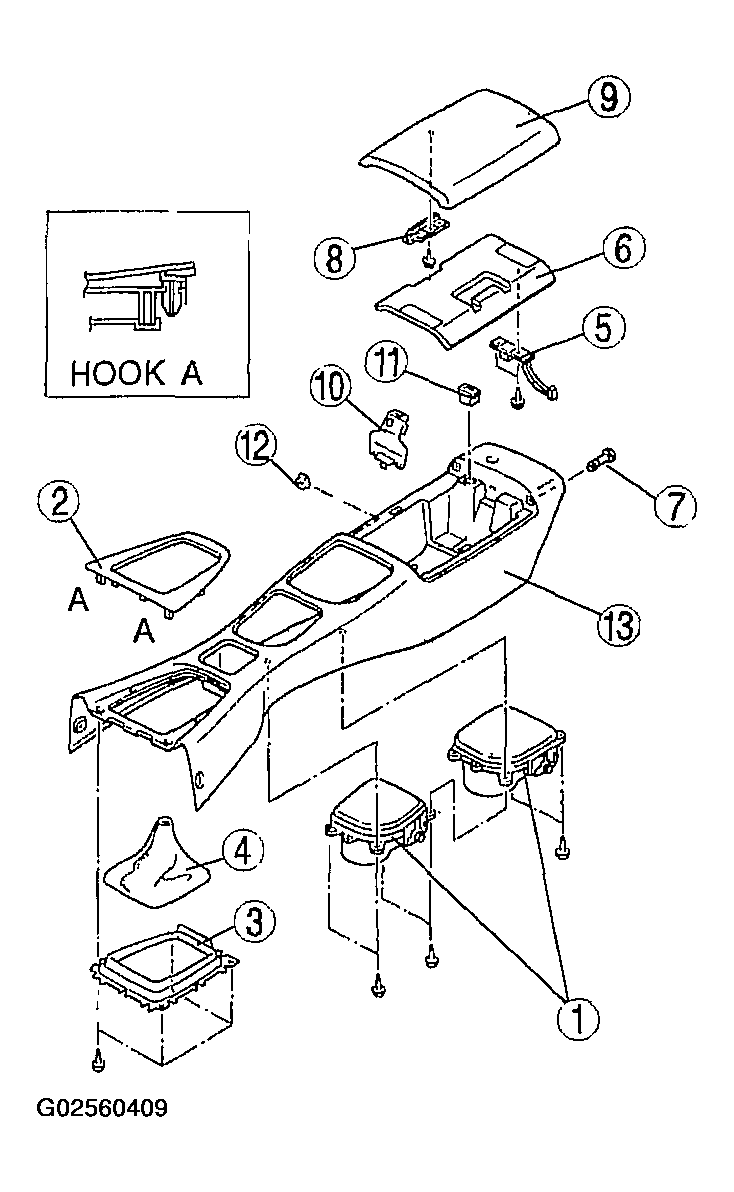

    Fig 1: Disassembling/Assembling Console
    G02560409Courtesy of MAZDA MOTORS CORP.
