AEROBOARD Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the illustration.
  3. Install in the reverse order of removal.

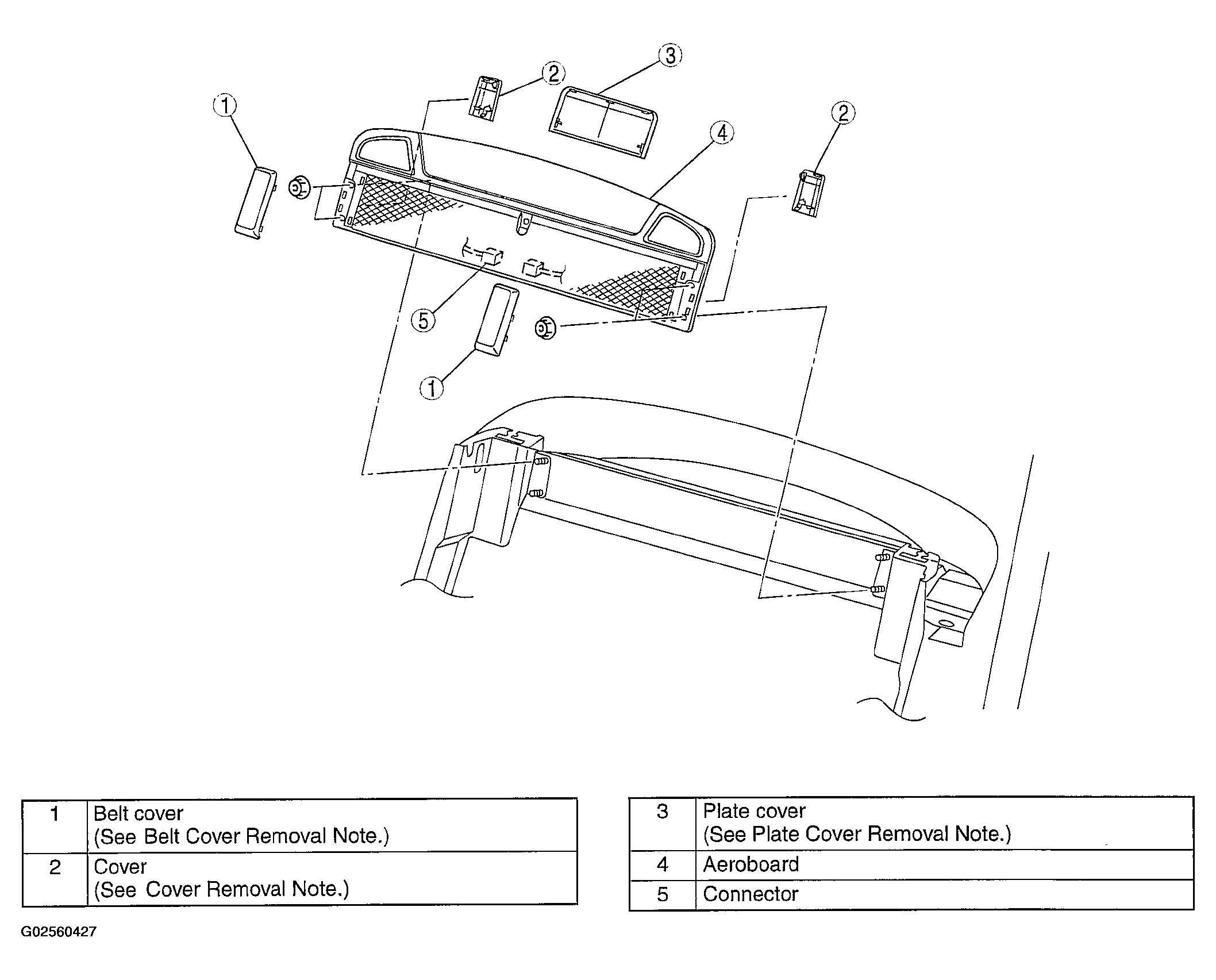

    Fig 1: Removing/Installing Aeroboard
    G02560427Courtesy of MAZDA MOTORS CORP.
