Cover Removal Note

  1. Insert a tape-wrapped flathead screwdriver into the service hole.
  2. Pry with the screwdriver in the direction shown by the arrow to remove the cover.

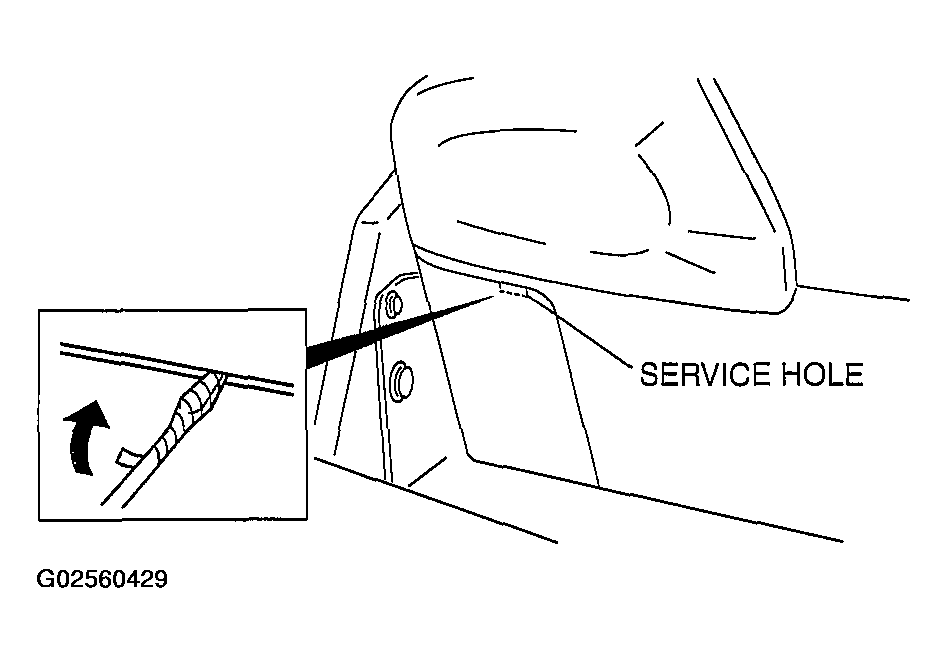

    Fig 1: Inserting Screwdriver Into Service Hole For Cover Removal
    G02560429Courtesy of MAZDA MOTORS CORP.
