AEROBOARD Disassembly/Assembly

  1. Disconnect the negative battery cable.
  2. Remove the aeroboard. (See AEROBOARD REMOVAL/INSTALLATION .)
  3. Remove the aeroboard speaker. (See AEROBOARD SPEAKER REMOVAL/INSTALLATION .)
  4. Remove the aeroboard speaker amplifier. (See AEROBOARD SPEAKER AMPLIFIER REMOVAL/INSTALLATION .)
  5. Disassemble in the order indicated in the illustration.
  6. Assemble in the reverse order of disassembly.

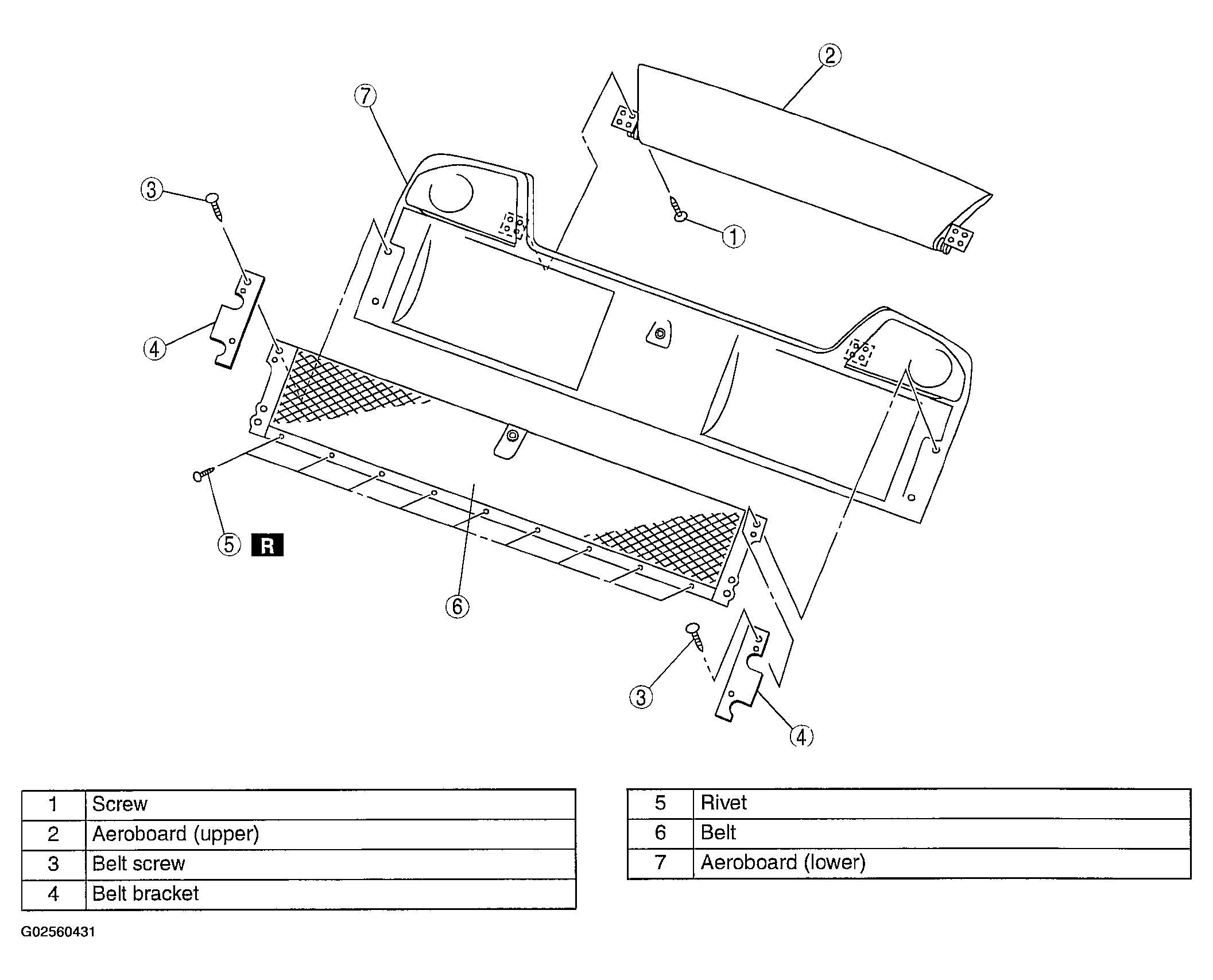

    Fig 1: Disassembling/Assembling Aeroboard
    G02560431Courtesy of MAZDA MOTORS CORP.
