Power Door Lock System Wiring Diagram

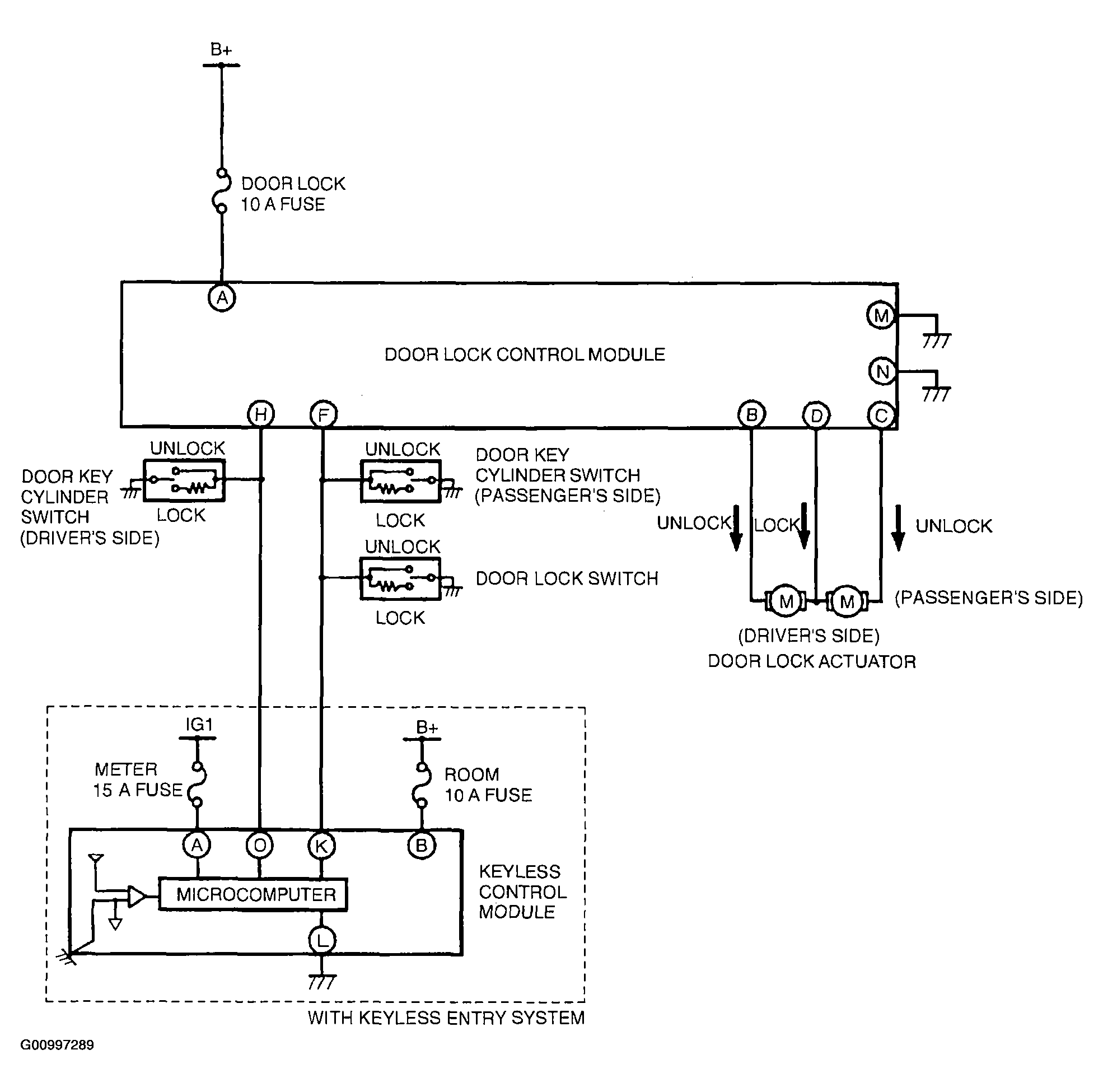

Fig 1: Power Door Lock System Wiring Diagram

G00997289

Courtesy of MAZDA MOTORS CORP.
