Power Door Lock System Location Index

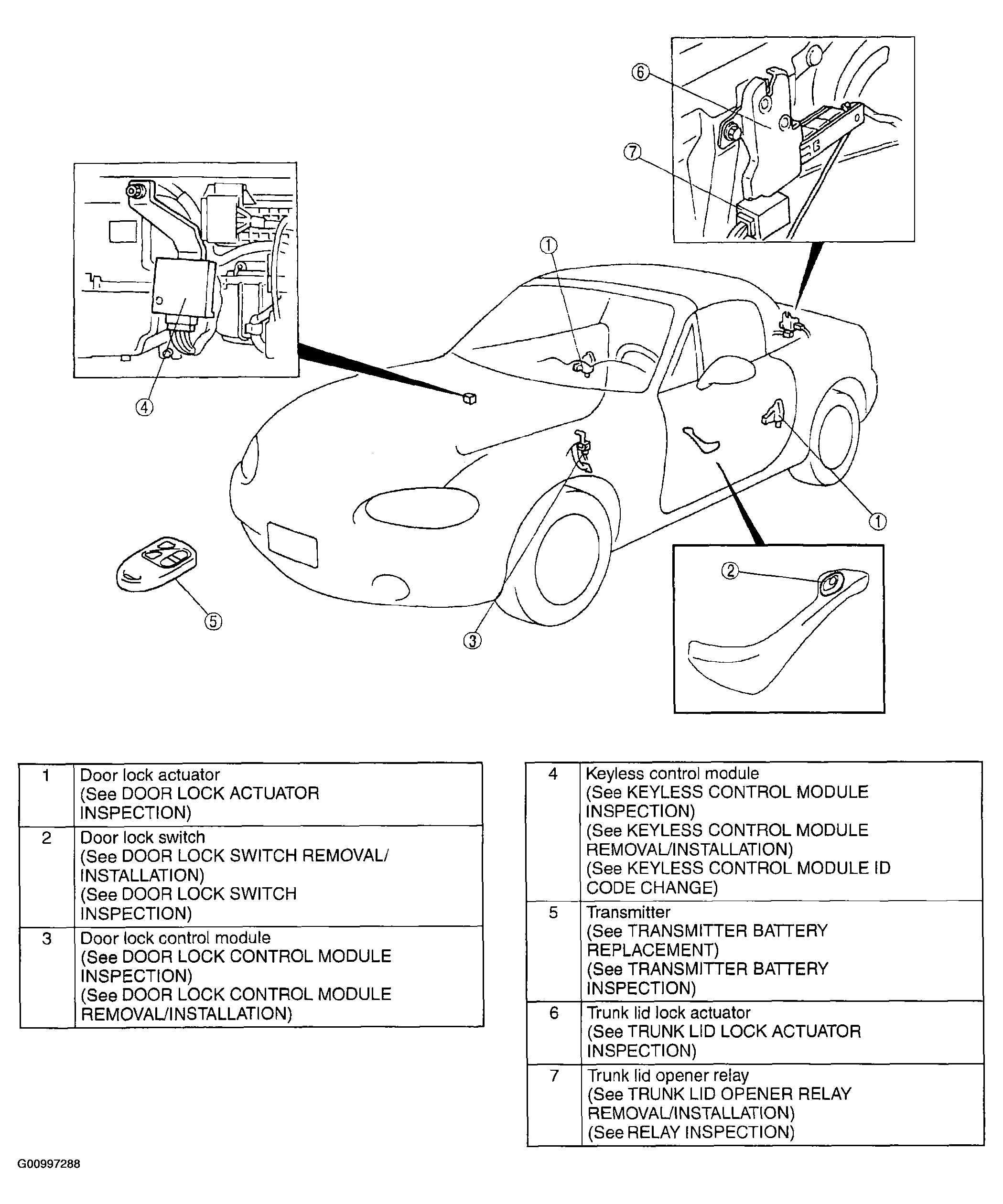

Fig 1: Power Door Lock System Location Index

G00997288

Courtesy of MAZDA MOTORS CORP.
