Hood Lock And Opener Removal/Installation

  1. Remove the upper shroud panel.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Adjust the hood. (See HOOD ADJUSTMENT .)

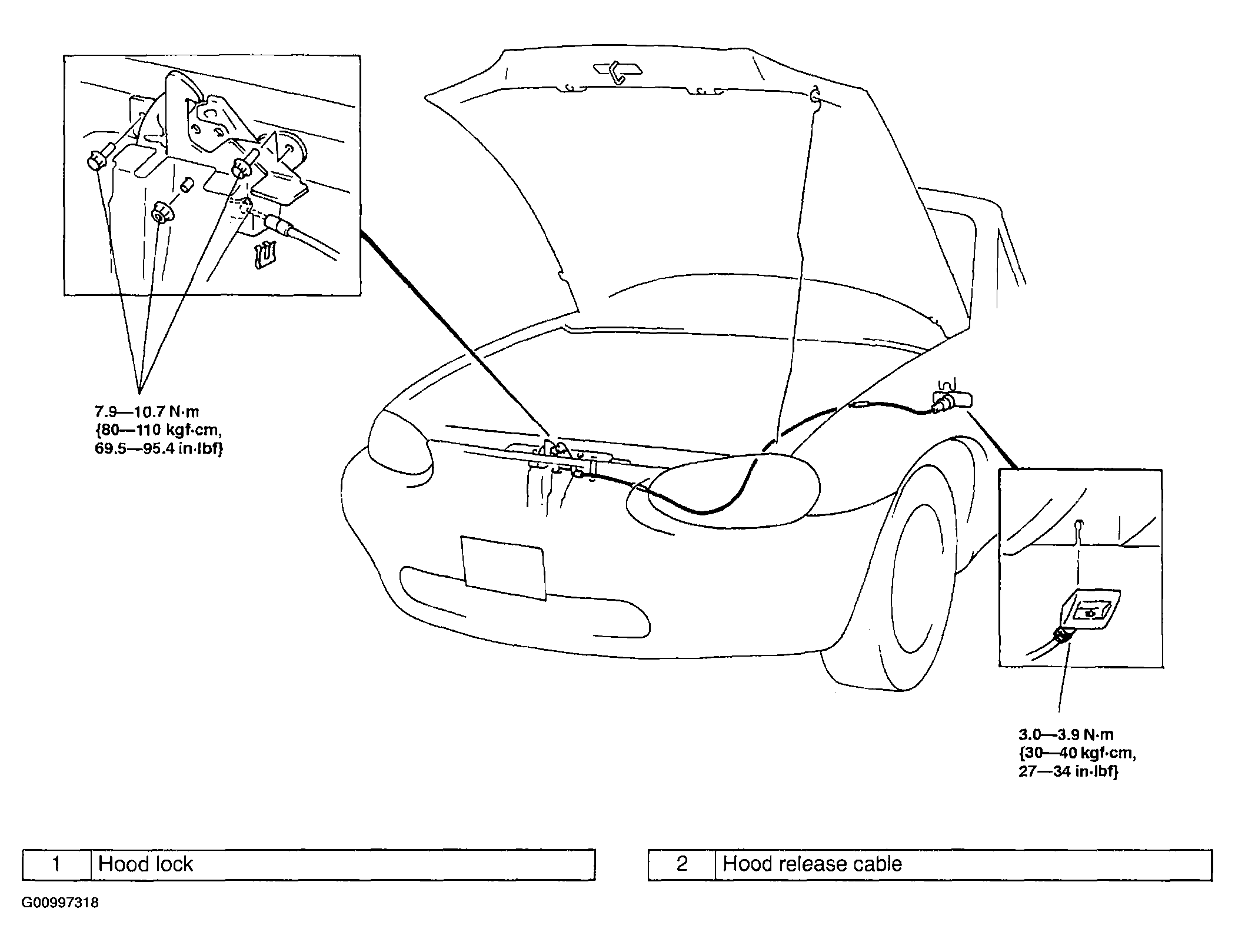

    Fig 1: Removing/Installing Hood Lock & Opener Table
    G00997318Courtesy of MAZDA MOTORS CORP.
