Door Key Cylinder Switch Inspection

  1. Raise the door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove door trim.
  4. Remove the door screen.
  5. Disconnect the door key c} liner switch connector.

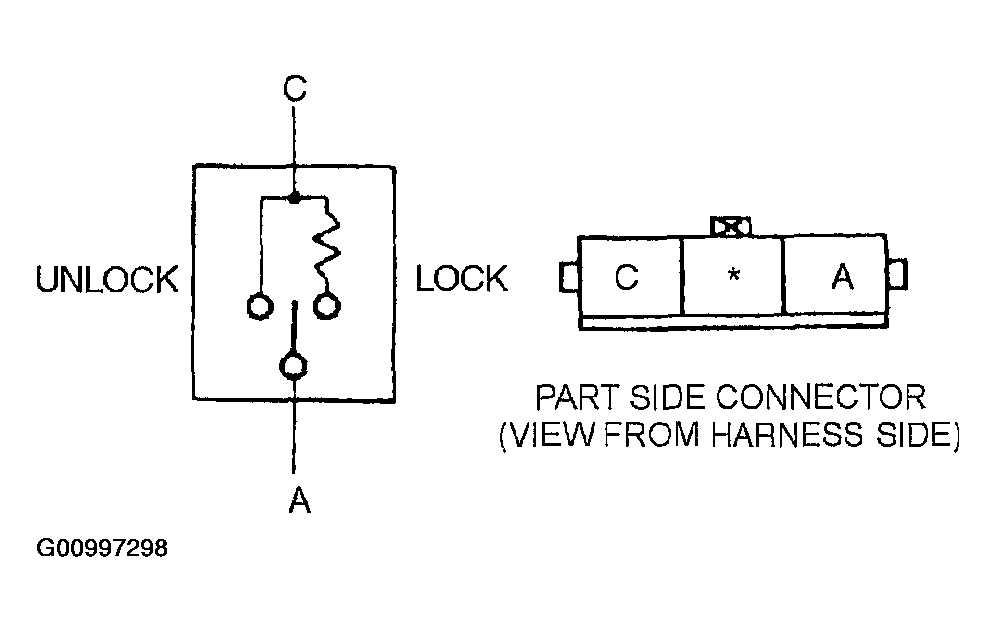

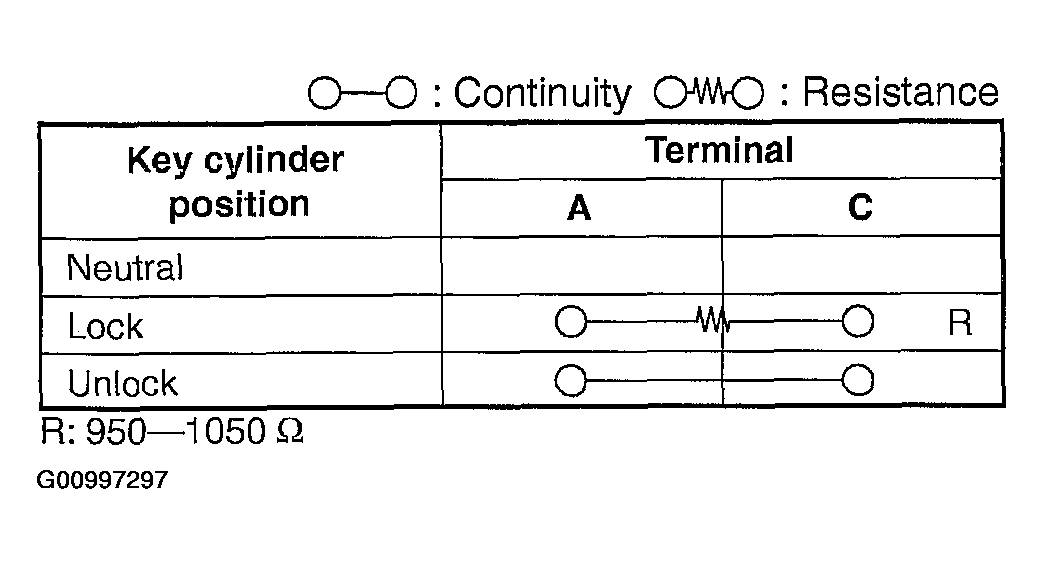

  6. Inspect for continuity between the door key cylinder switch terminals using an ohmmeter.
