Power Antenna Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
    DISASSEMBLING ORDER OF POWER ANTENNA

    Disassembling Order Component
    1 Drain hose
    2 Screw
    3 Bracket
    4 Rod insulator
    5 O-ring
    6 Motor
  2. Assemble in the reverse order of disassembly.

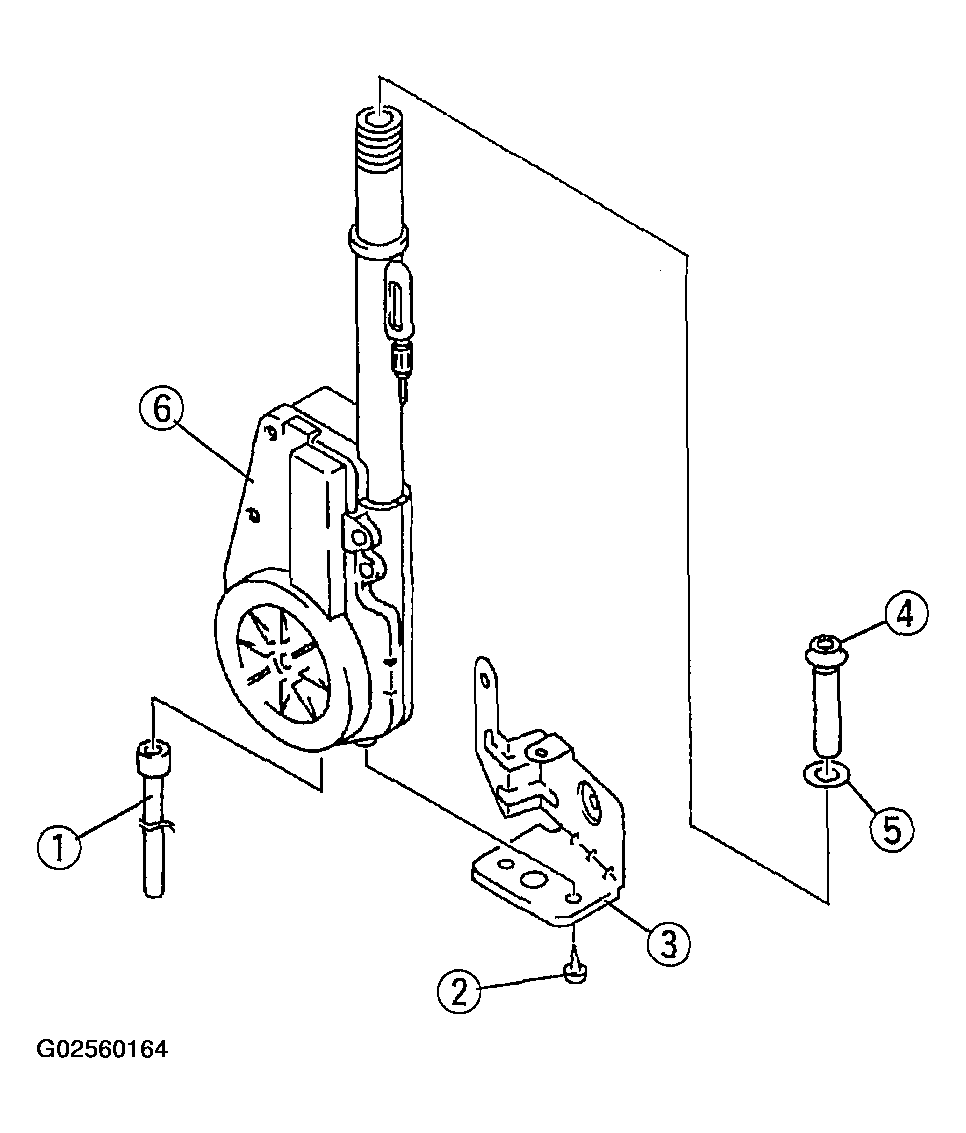

    Fig 1: Disassembling/Assembling Power Antenna
    G02560164Courtesy of MAZDA MOTORS CORP.
