Audio Unit Removal
- Cancel the anti-theft operation. (For vehicles equipped with anti-theft system)
- Disconnect the negative battery cable.

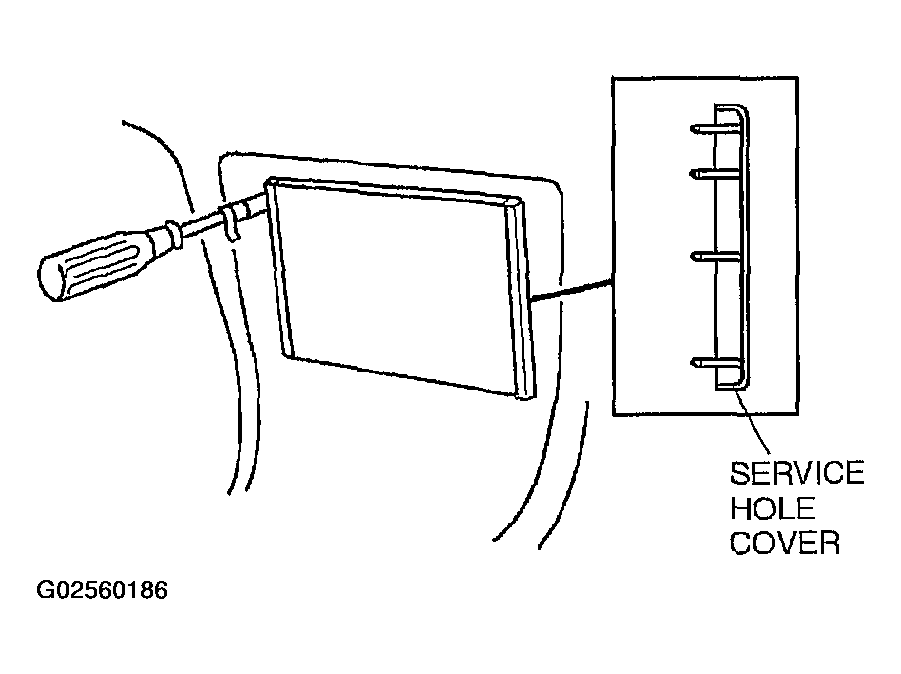

- Remove the service hole covers by inserting a small tape-wrapped flathead screwdriver into the slot and carefully pry them off without scratching the center panel. Pry up and pull off the service hole covers carefully to prevent the posts from breaking off.
NOTE:
- Two sets of the SSTs (Removing tool) are necessary to remove the audio unit.
Courtesy of MAZDA MOTORS CORP.

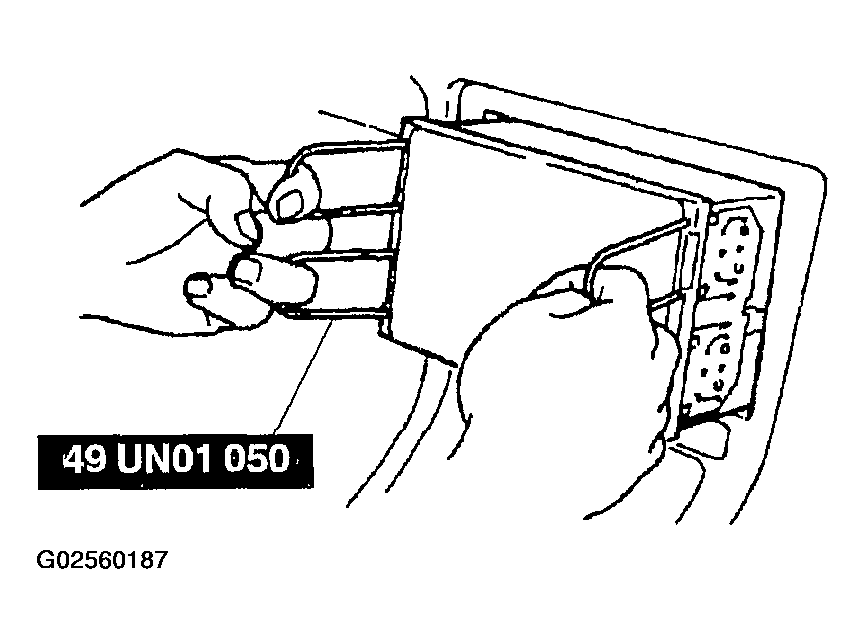

- With the beveled parts of the SST
(Removing tool) facing inward, insert them into the audio unit.
- Pull the SST
(Removing tool) outward and rearward to slide out the audio unit.
- Disconnect the audio unit connectors and antenna jacks.
Courtesy of MAZDA MOTORS CORP.
