Audio Amplifier Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    REMOVAL ORDER OF AUDIO AMPLIFIER

    Removal Order Component
    1 Audio amplifier connector
    2 Nut
    3 Audio amplifier

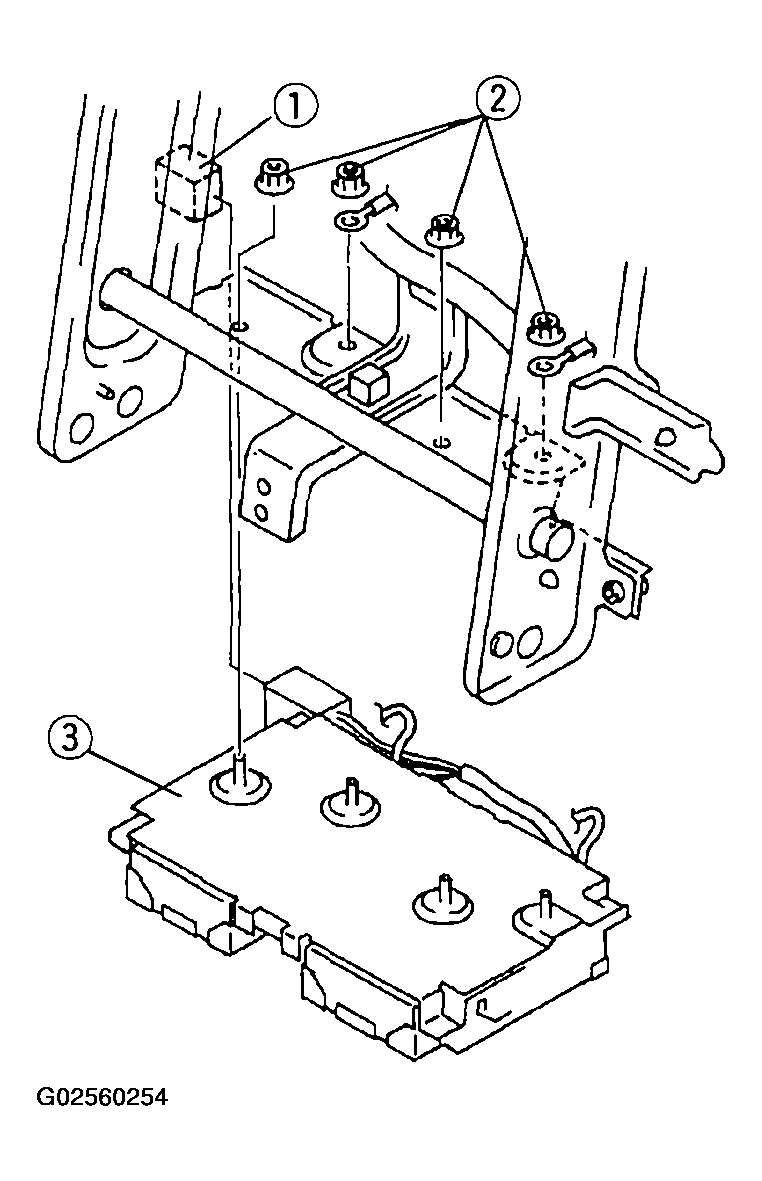

    Fig 1: Removing/Installing Audio Amplifier
    G02560254Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
