Canceling the Code Number

Complete each step  1- 3 ) within 10 seconds  or the canceling procedure will be canceled.

1. Turn the ignition switch to ACC position and then turn off the audio unit.
2. First press the AUTO-M button, then simultaneously press channel button 6 for approximately 2 seconds  until "CODE" appears on the display.

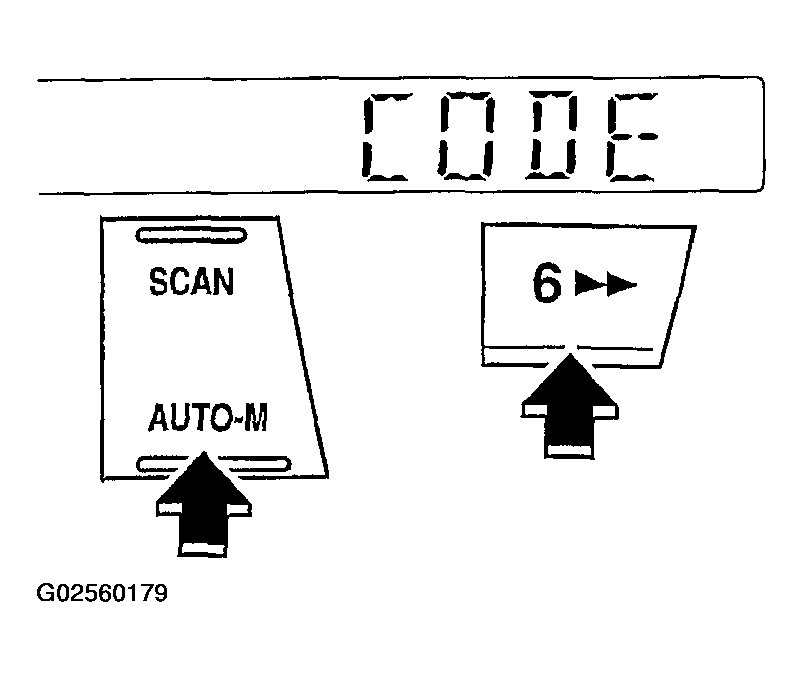

   Fig 1: Code Display On Audio Unit - Canceling Code Number

   Courtesy of MAZDA MOTORS CORP.
3. Press the AUTO-M button again, then simultaneously press channel button 6 until dashes appear on the display.

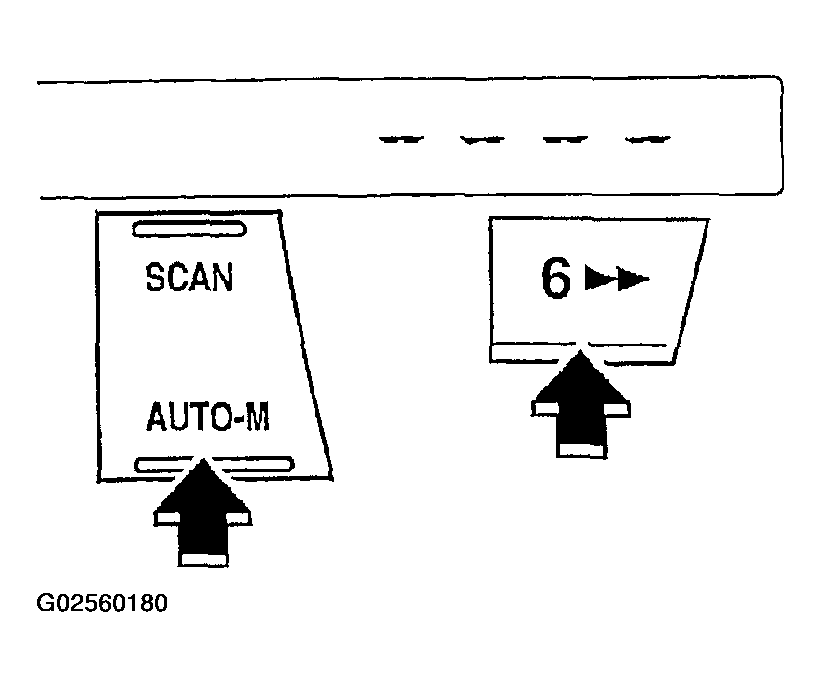

   Fig 2: Dashes Appear On Display - Canceling Code Number

   Courtesy of MAZDA MOTORS CORP.
4. Use channel buttons 1-4 to input the current code number. Press button 1 for the first digit, 2 for the second, 3 for the third, and 4 for the last digit. Input the number within 10 seconds.  If the display is deleted, repeat the procedure from Step  1.
   NOTE:

   • Perform Step  5 within 10 seconds after Step  4.

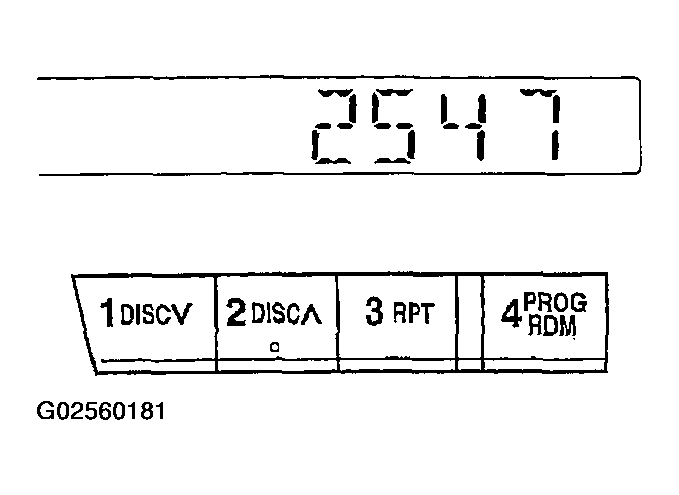

   Fig 3: Code Number Display - Canceling Code Number

   Courtesy of MAZDA MOTORS CORP.
5. With the code number displayed, press the AUTO-M button, then simultaneously press channel button 6 for approximately 2 seconds.  "CODE" will be displayed for approximately 5 seconds.  After it disappears, the code number is canceled.
6. If "Err" (error) appears on the display, repeat the procedure from Step  4.
   Fig 4: Code Setting Display - Canceling Code Number

   Courtesy of MAZDA MOTORS CORP.
