AEROBOARD Speaker Removal/Installation: Notes

CAUTION:

When removing or installing an aeroboard speaker, touching the radio cone paper could cause poor sound quality. When removing or installing an aeroboard speaker, hold the speaker bracket and handle with care.

Disconnect the negative battery cable.

Remove in the order indicated in the table.

REMOVAL ORDER OF AEROBOARD SPEAKER

Rermoval Order	Component
1	Cover (See Cover Removal Note .)
2	Speaker cover (See Speaker Cover Removal Note .)
3	Aeroboard speaker connector
4	Screw
5	Aeroboard speaker

Install in the reverse order of removal.

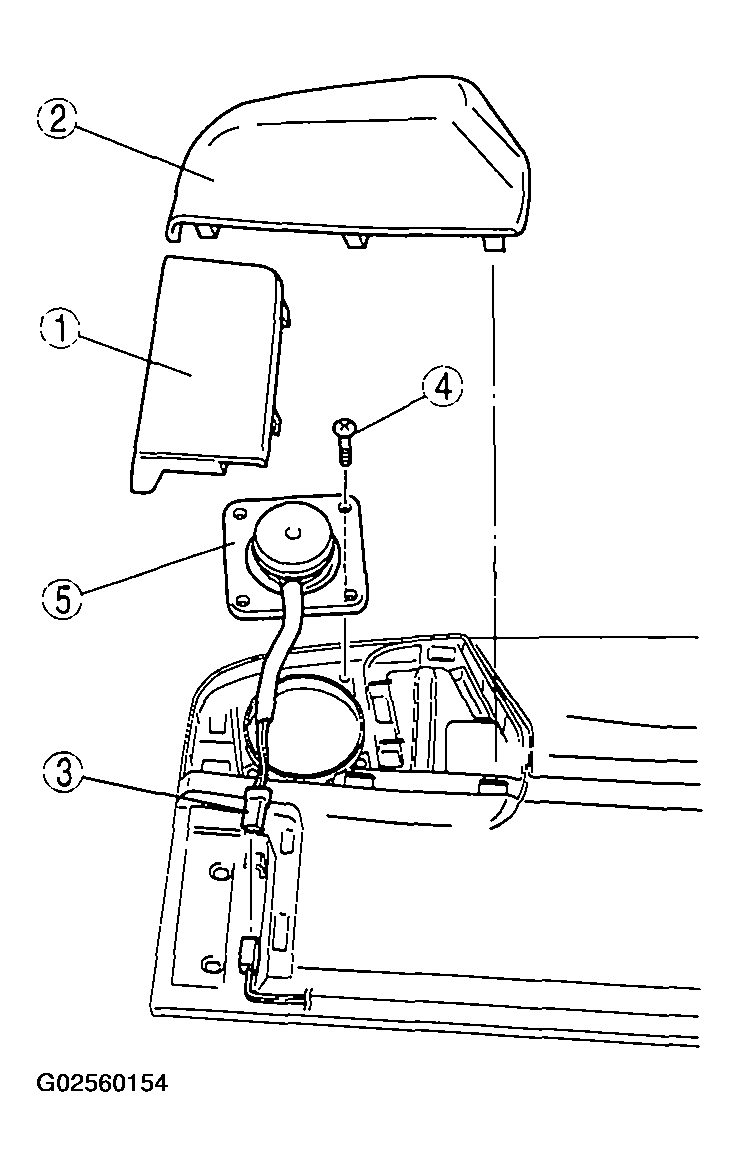

Fig 1: Removing/Installing Aeroboard Speaker
Courtesy of MAZDA MOTORS CORP.
