Symptom Troubleshooting (Power Door Lock System)
>>
No. 3 Transmitter Id Code Cannot Be Reprogrammed
>>
Diagnostic procedure
Diagnostic procedure

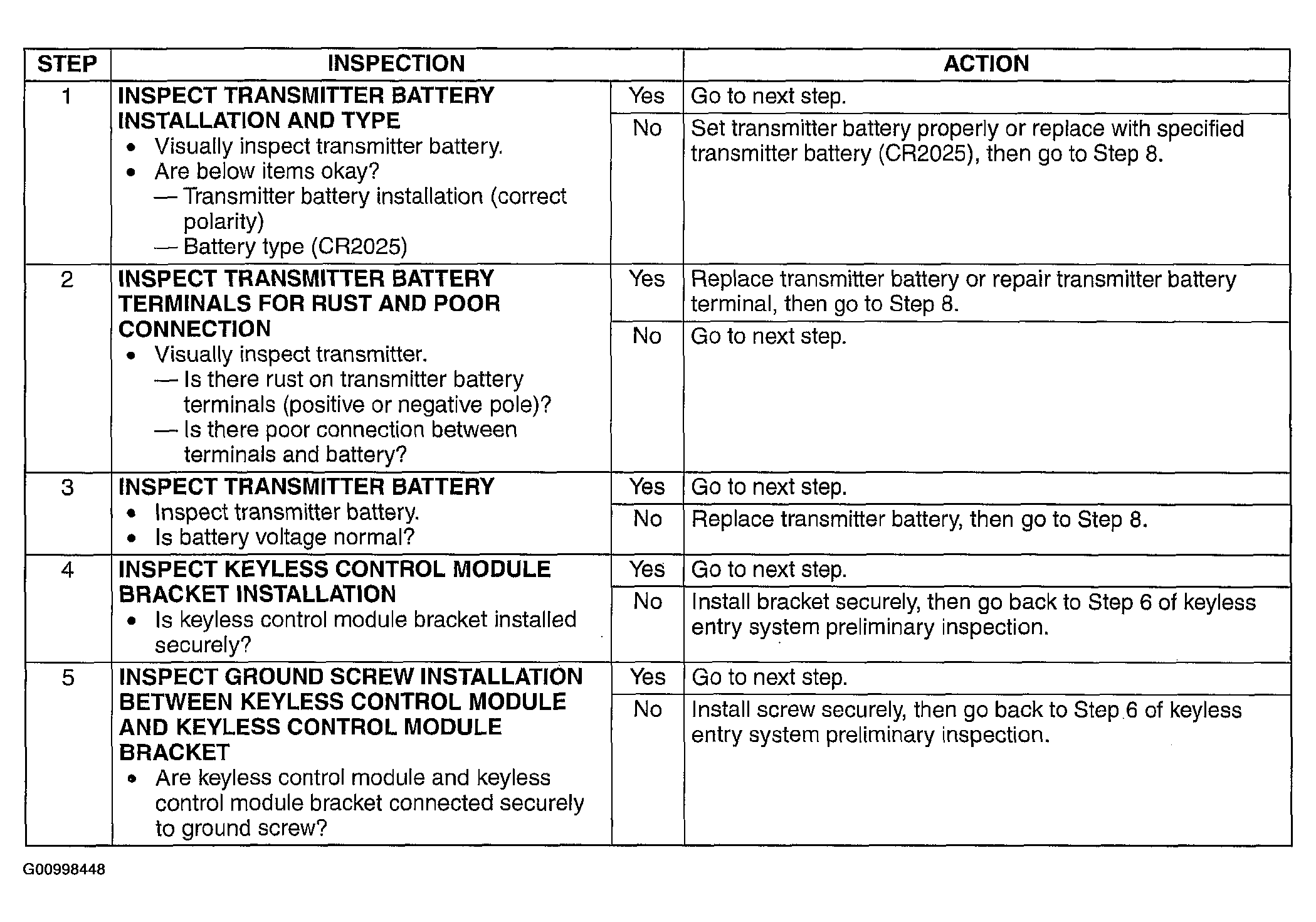

Fig 1: Diagnostic Procedure Table (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

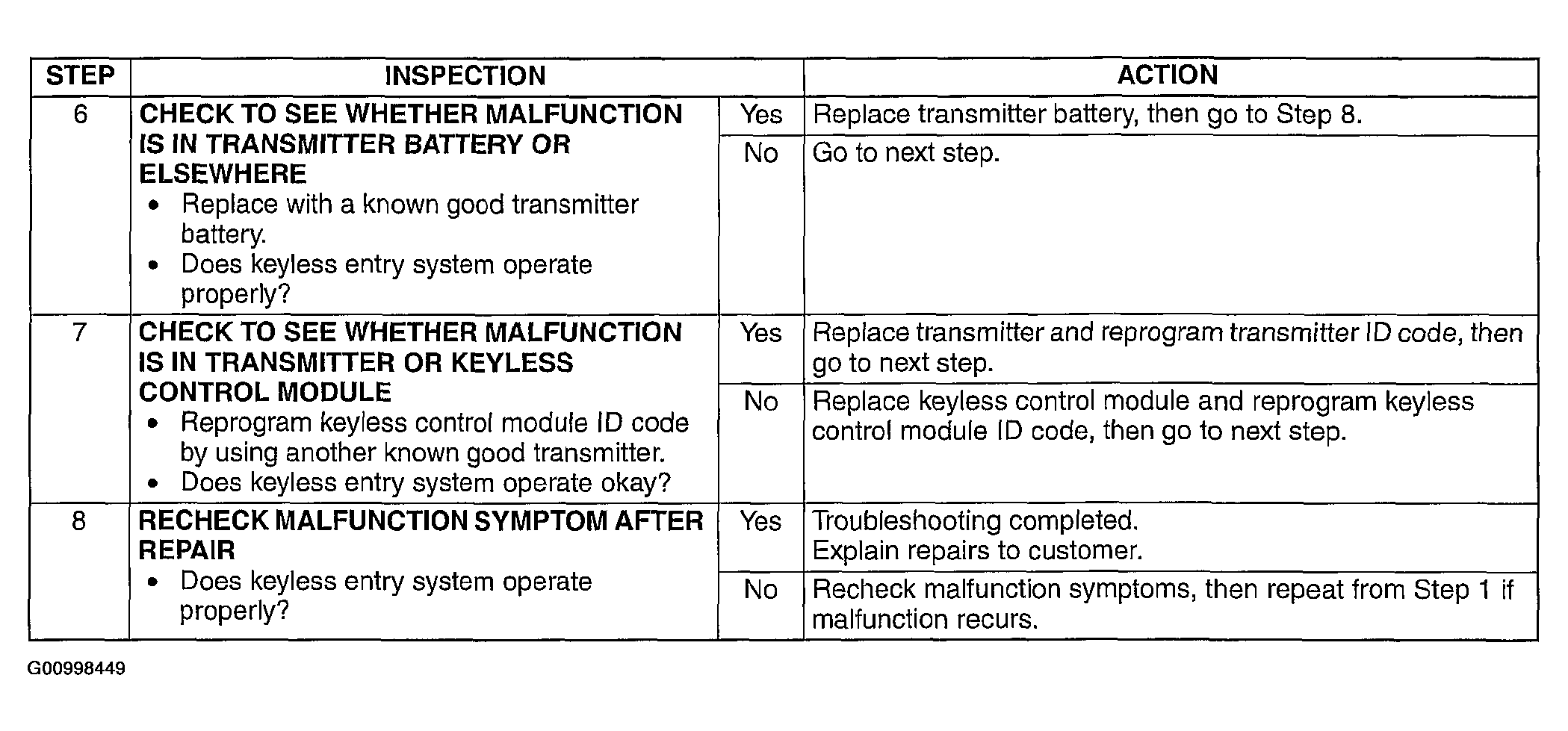

Fig 2: Diagnostic Procedure Table (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
