Home >> Mazda >> 2004 >> MPV LX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - Overhaul [Ja5EL] >> Low Clutch Inspection >> Spring & Retainer Inspection >> Specification

Spring & Retainer Inspection: Specification

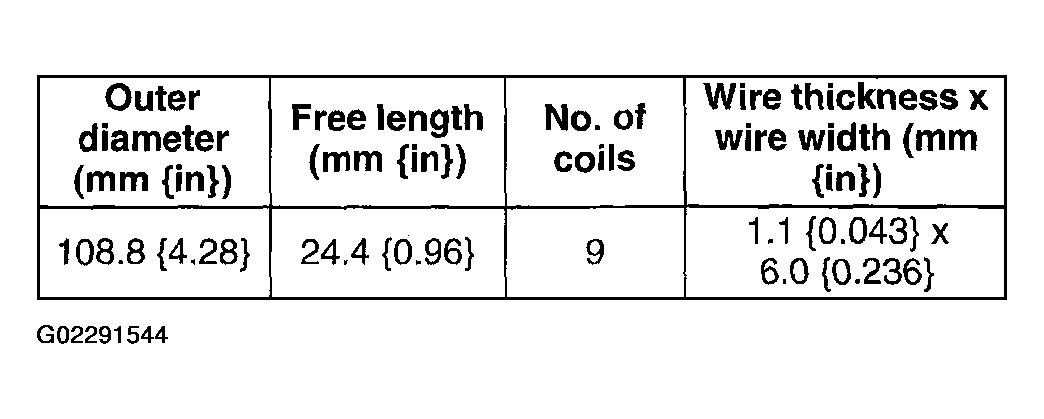

Fig 1: Identifying Spring Specifications

G02291544

Courtesy of MAZDA MOTORS CORP.
