Electrical System
>>
Direction Of View For Connector
>>
Vehicle Harness-Side Connector
Vehicle Harness-Side Connector
NOTE:
Part names are shown only when there are multiple connector drawings.
The viewing direction of vehicle harness-side connectors is from the harness side.

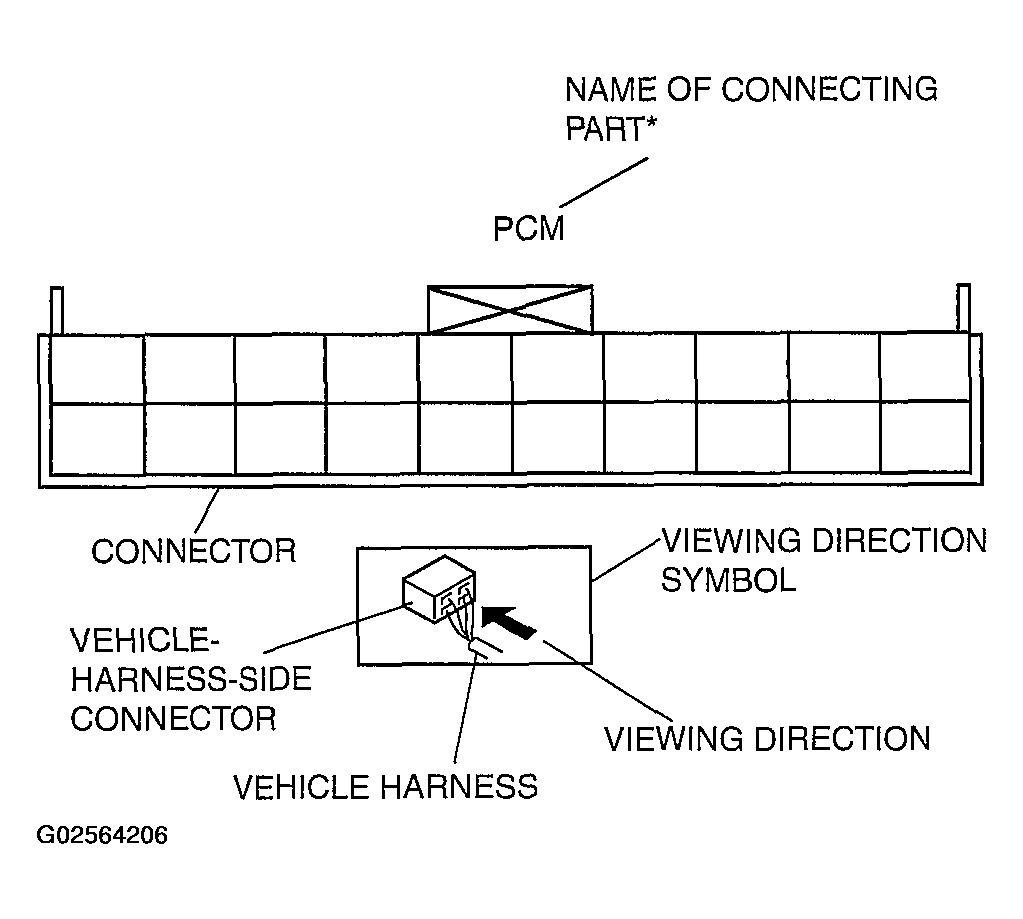

Fig 1: Viewing Direction Of Vehicle Harness-Side Connector
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
