Control System Component Location Index

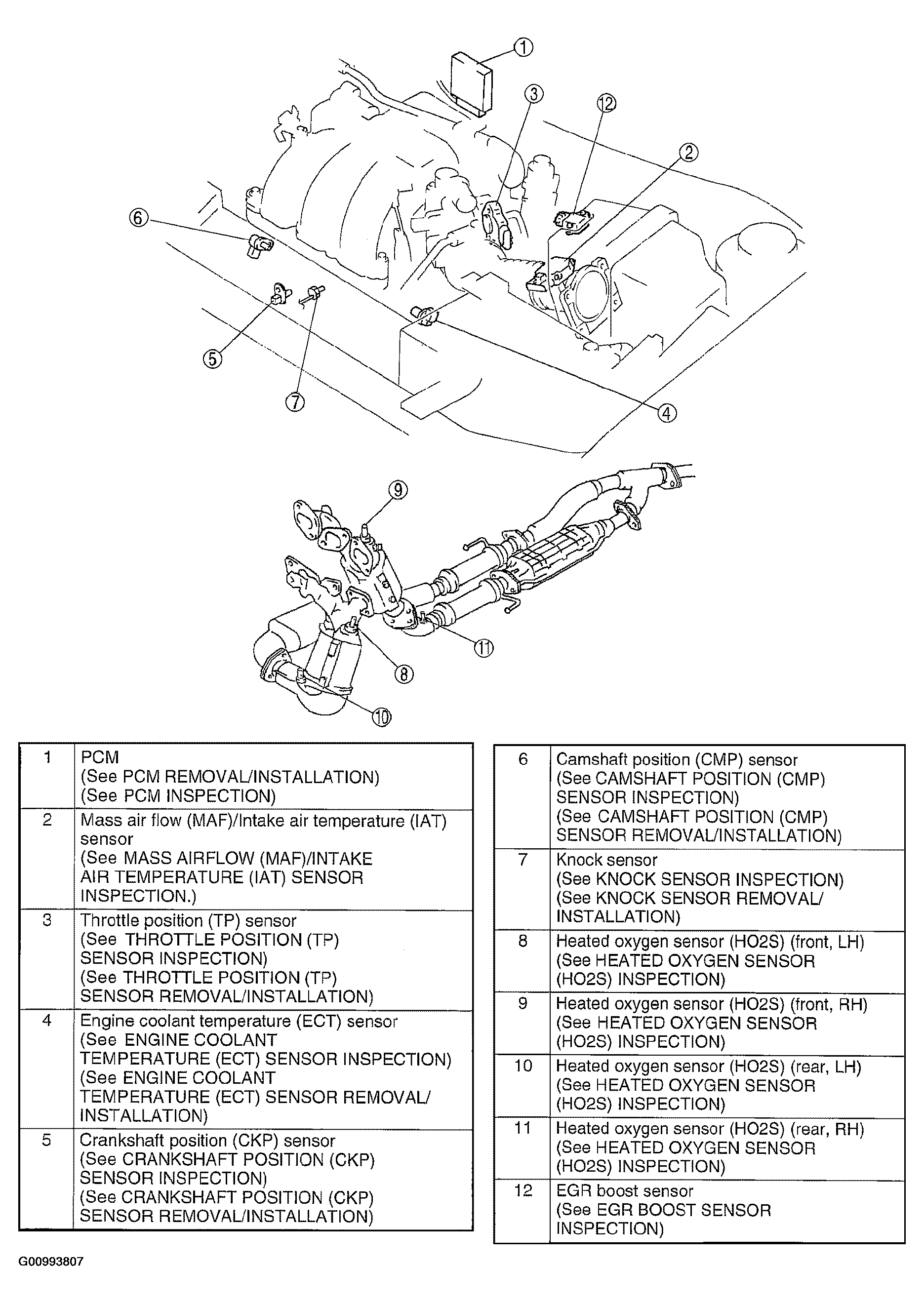

Fig 1: Control System Component Location Index

G00993807

Courtesy of MAZDA MOTORS CORP.
