Disassembly & Reassembly

  1. Disassemble components as shown in the illustration. See Fig 1 .
  2. Reassemble in the reverse order of removal. Tighten bolts to specifications. See TORQUE SPECIFICATIONS  .

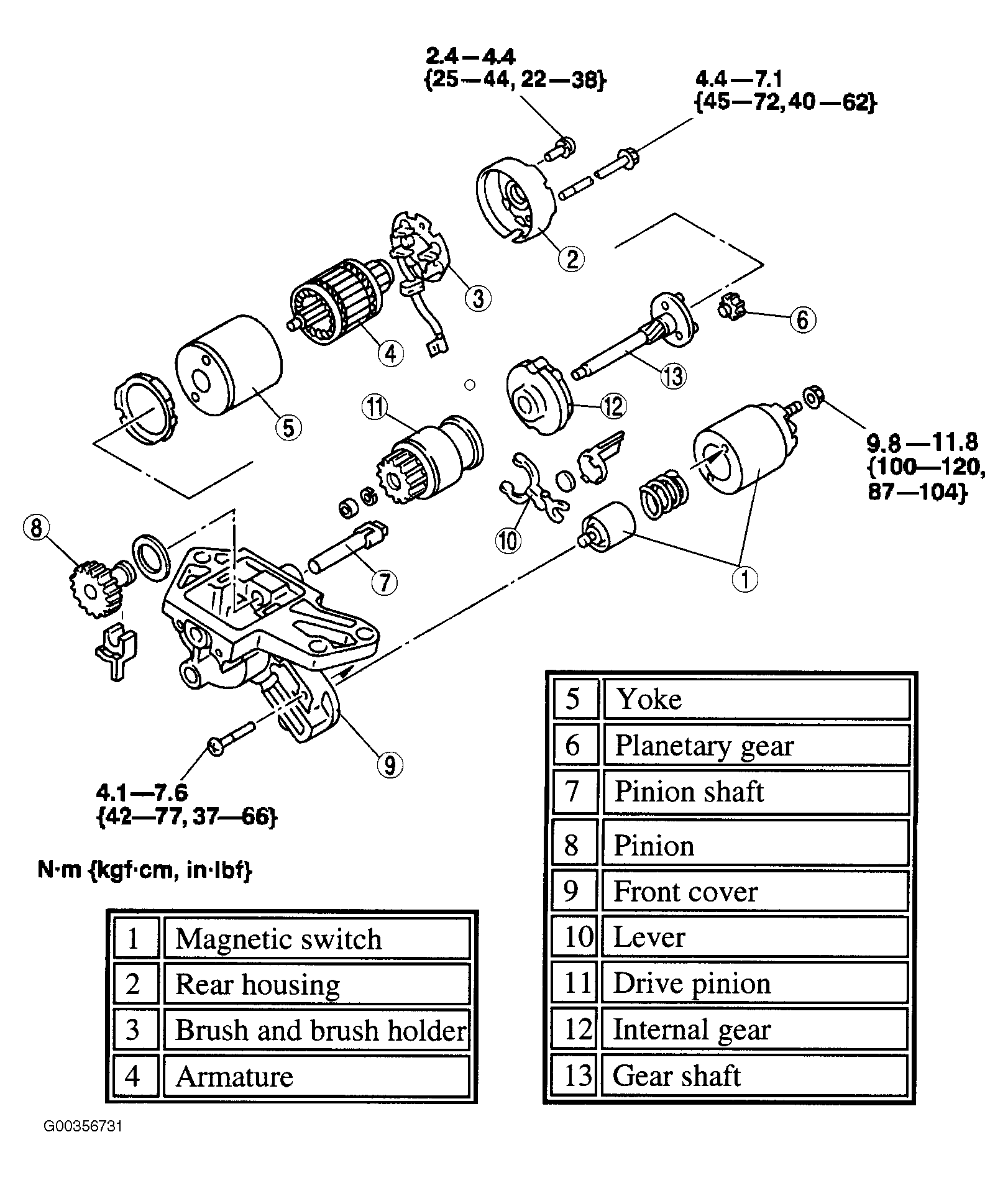

Fig 1: Exploded View Starter Assembly
G00356731Courtesy of MAZDA MOTORS CORP.
