On-Vehicle Inspection

Disconnect the terminal component No. 2 connector.

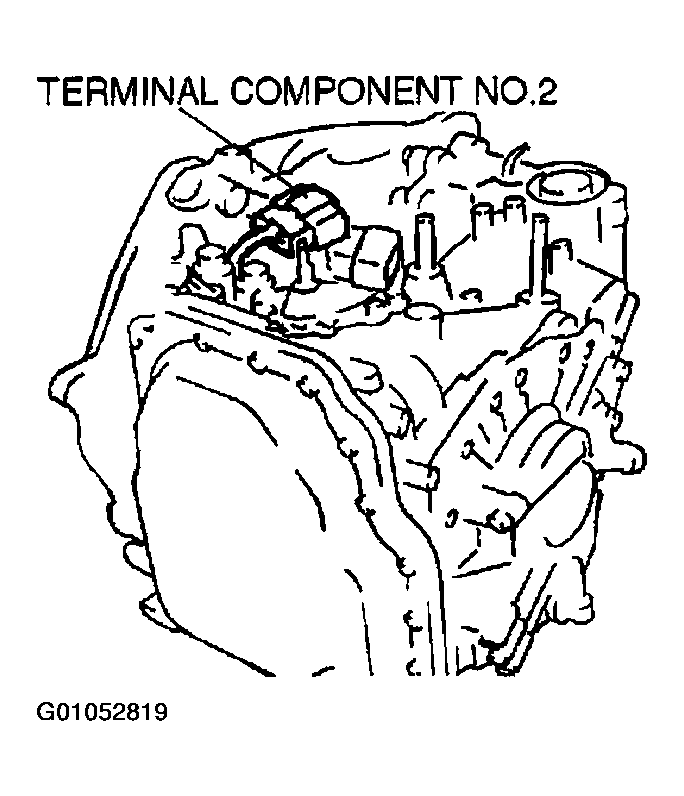

Fig 1: Locating Terminal Component No. 2 Connector
Courtesy of MAZDA MOTORS CORP.
Measure resistance between the terminals A and B.
- If not as specified, inspect the VSS. (See INSPECTION OF INDIVIDUAL PART .)
  Resistance (ATF Temperature: 20°C {68°F})

  513-627 Ohms
Connect the terminal component No. 2 connector.

Fig 2: Identifying Terminal Component No. 2 Connector Terminals
Courtesy of MAZDA MOTORS CORP.
