Solenoid Valve Removal/Installation
- Remove the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)

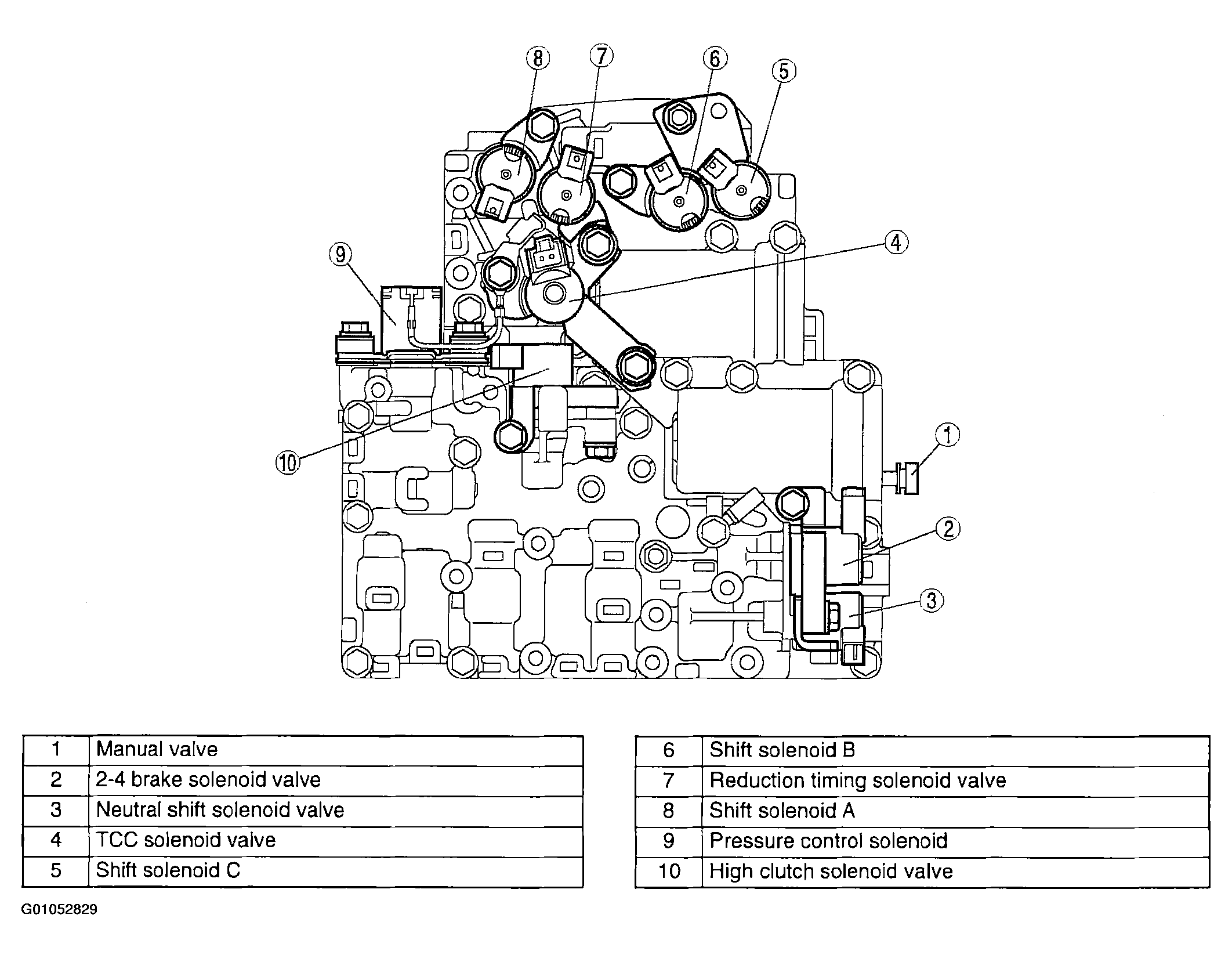

- Remove the solenoid valves and manual valve.
- Apply ATF to a new O-ring and install it on the solenoid valve.
- Install the solenoid valve and manual valve in the control valve body.
Tightening Torque
8.34-10.30 N.m {85-105 kgf.cm, 74-91 in.lbf}
- Install the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
- Add the ATF while the engine is idling, and inspect the ATF level and leakage. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .) (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL INSPECTION .)
- Carry out the time lag test and line pressure test. (See MECHANICAL SYSTEM TEST .)
- Carry out the road test. (See ROAD TEST .)
