Vehicle Speed At Shift Point Table

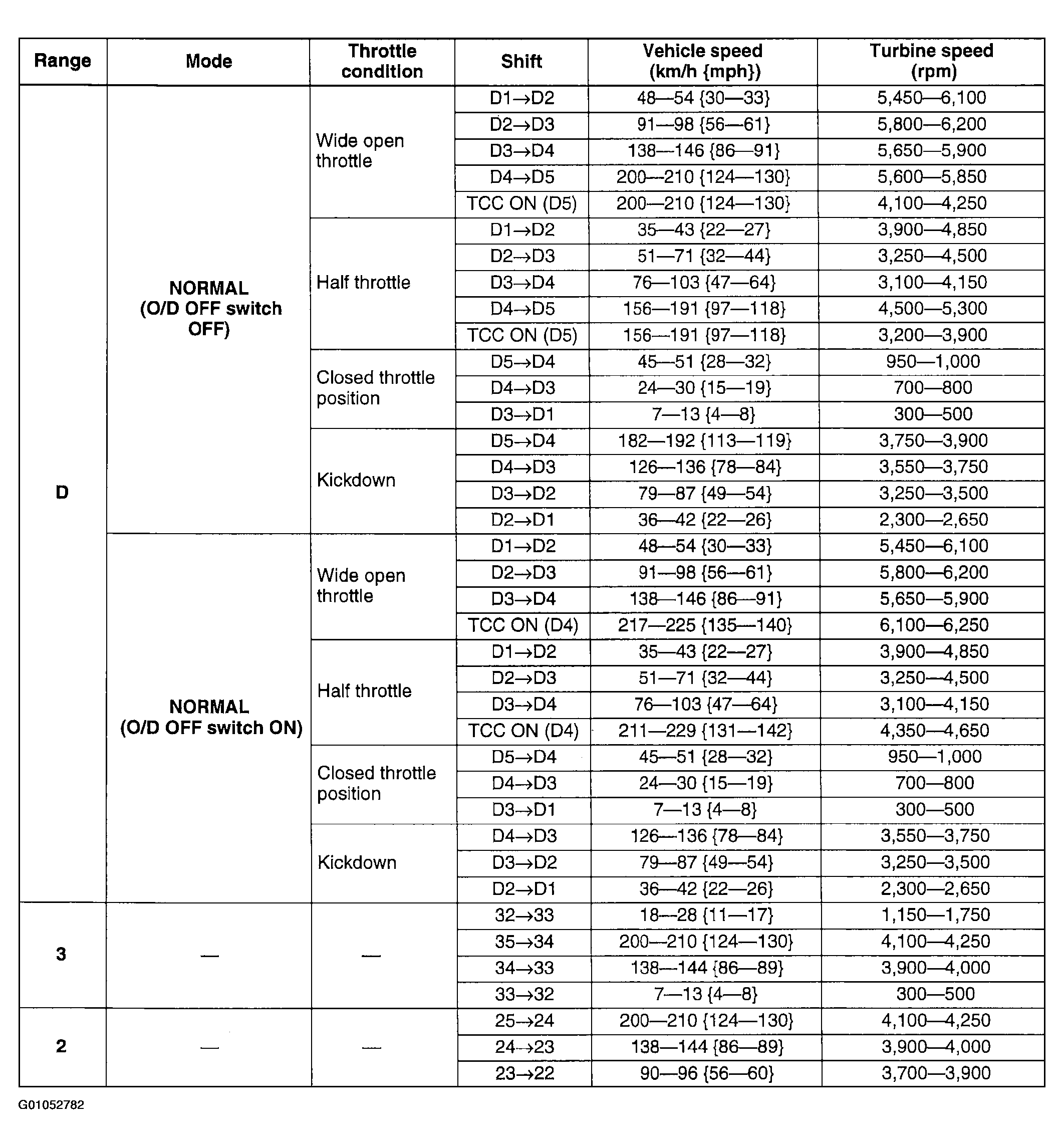

Fig 1: Vehicle Speed At Shift Point Table

G01052782

Courtesy of MAZDA MOTORS CORP.
