Forward Flushing

  1. Connect power flushing equipment so the flushing fluid flows in the direction of normal fluid flow.
  2. Flush oil cooler/lines until discharge fluid is clean.

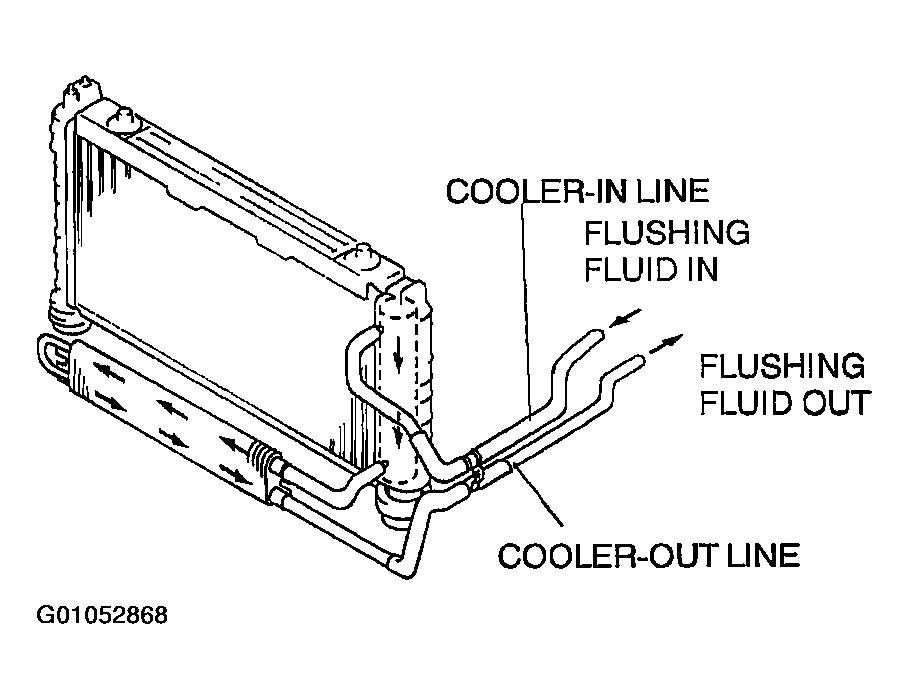

    Fig 1: Flushing Oil Cooler/Lines - Forward Flushing
    G01052868Courtesy of MAZDA MOTORS CORP.
