Technical Data [Steering System)
>>
Steering Technical Data
Steering Technical Data

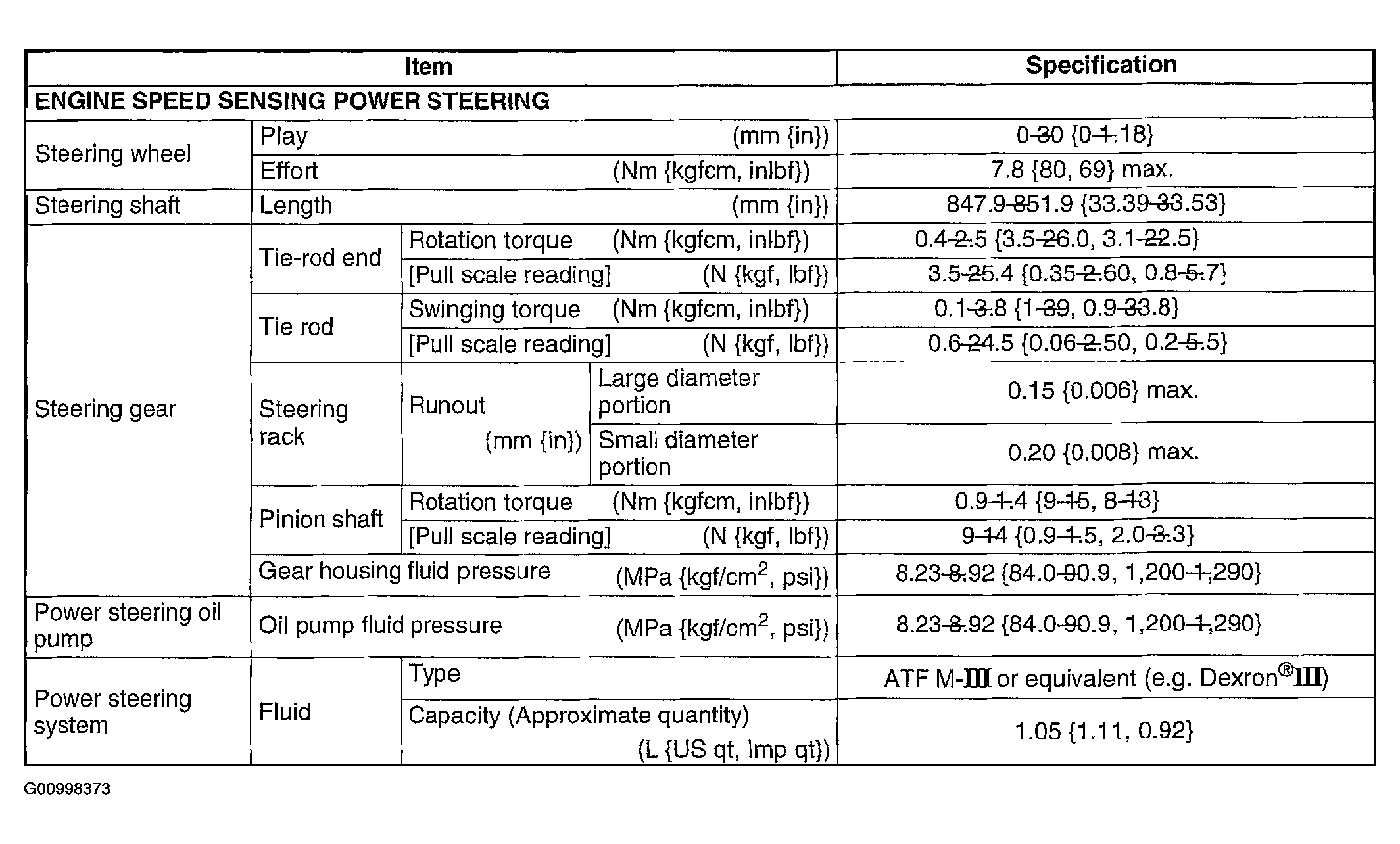

Fig 1: Steering Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
