Steering Gear And Linkage Installation Note

1. Loosely tighten nuts 3, 4 and bolt 2.
2. Tighten the mounting bracket nuts and bolts to the specified torque in the order shown.

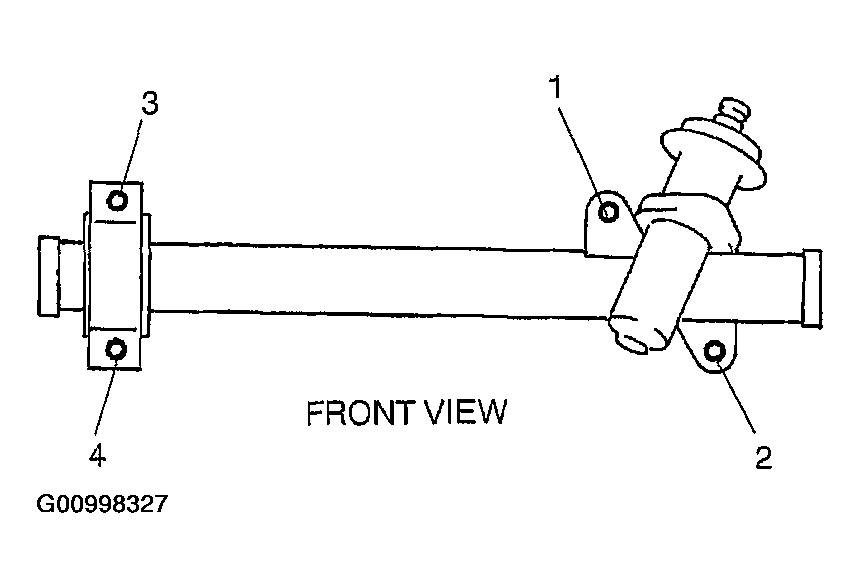

   Fig 1: Locating Steering Gear & Linkage Nuts

   Courtesy of MAZDA MOTORS CORP.
3. Tighten the crossmember nuts.

Tightening Torque

93.1 - 131.3 N.m

{9.50 - 13.38 kgf.cm, 68.67-96.84 ft.lbf}
