Vane Assembly Note

  1. Place the vanes in the rotor with the rounded edges contacting the cam.

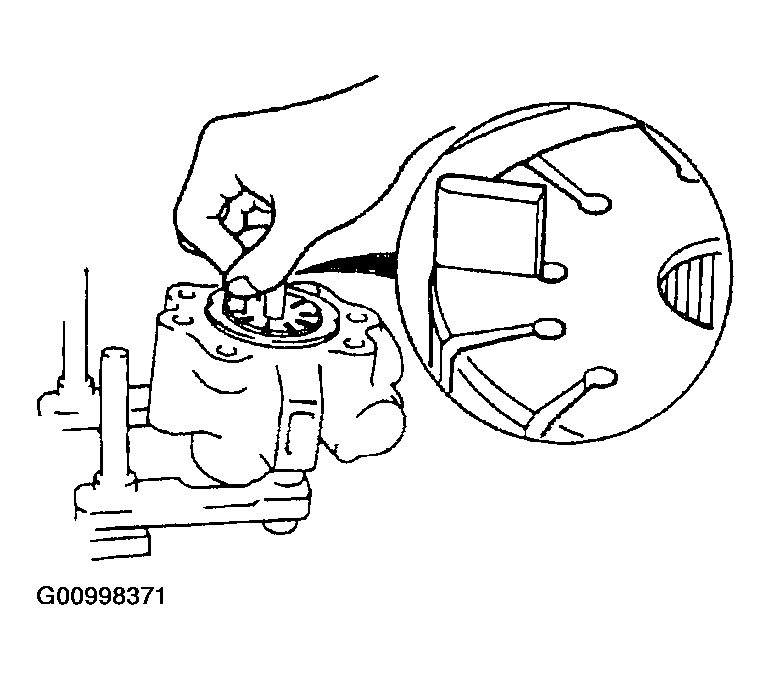

    Fig 1: Placing Vanes In Rotor
    G00998371Courtesy of MAZDA MOTORS CORP.
