Driver's Seat

  1. Disconnect the buckle switch connector.
  2. Inspect for continuity between the buckle switch terminals using an ohmmeter.
    • If not as specified, replace the front buckle.

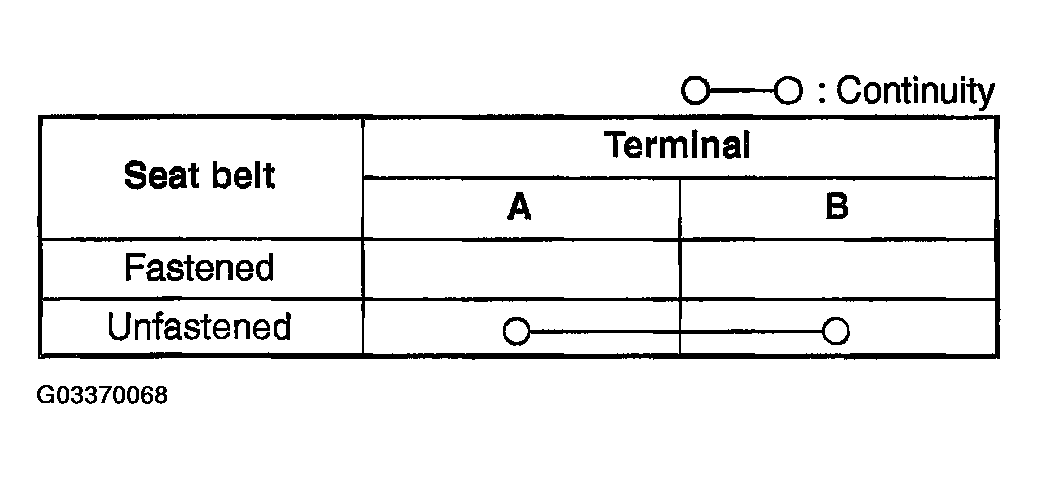

    Fig 1: Disconnecting Buckle Switch Connector
    G03370068Courtesy of MAZDA MOTORS CORP.

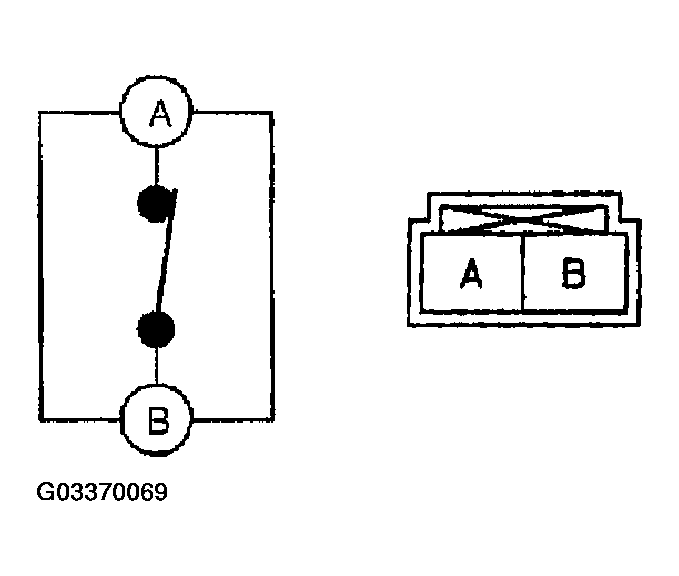

    Fig 2: Inspecting For Continuity Between Buckle Switch Terminals
    G03370069Courtesy of MAZDA MOTORS CORP.
