Data Link Connector
Data Link Connector

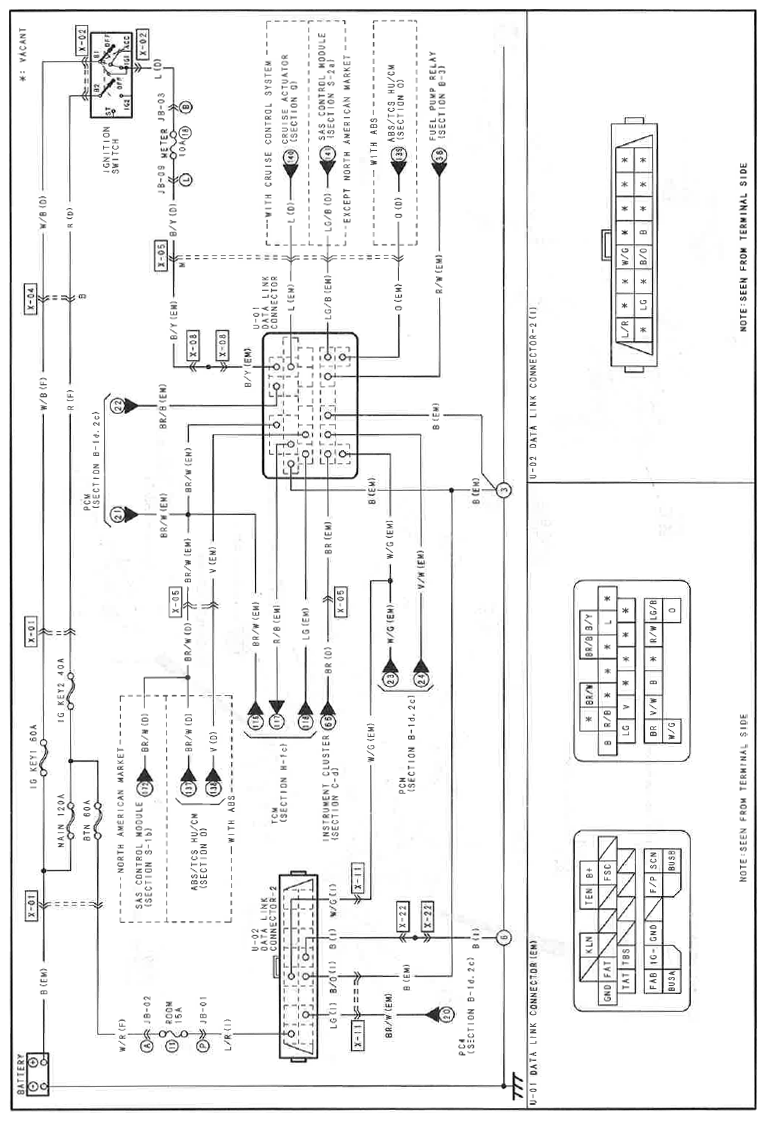

Fig 1: Data Link Connector Wiring Diagram (U; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

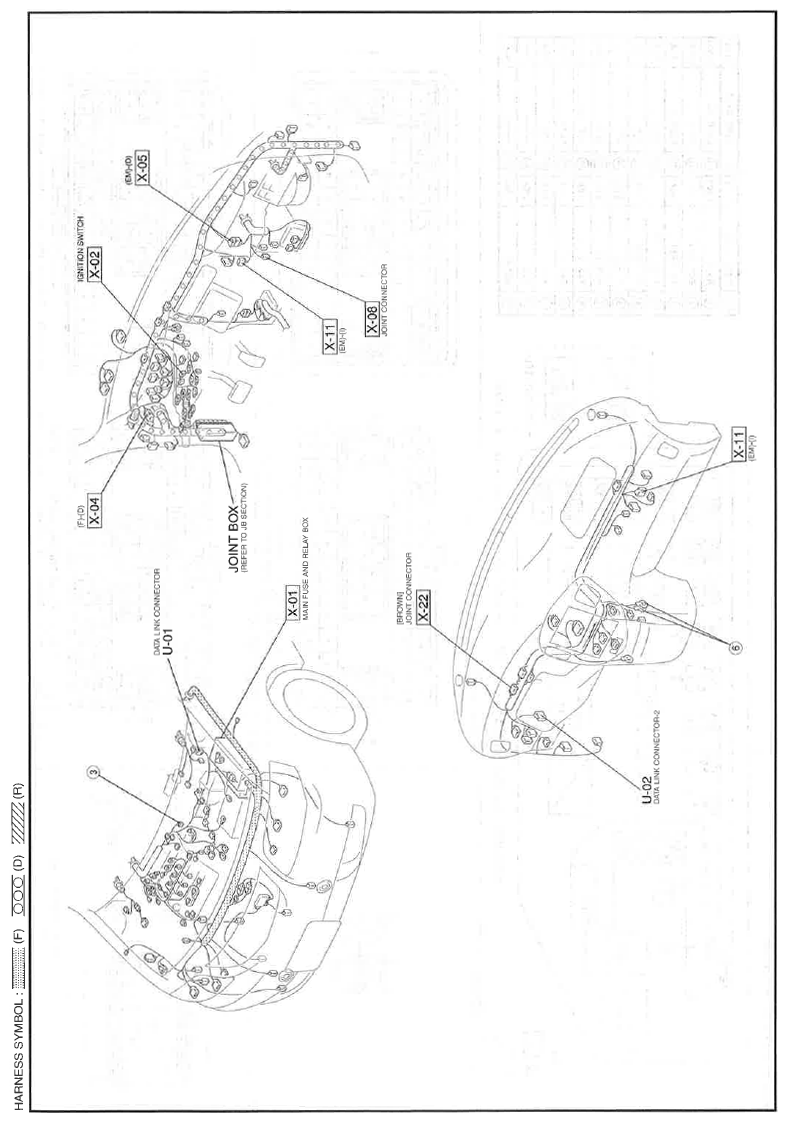

Fig 2: Data Link Connector Wiring Diagram (U; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
