OEM Wiring Diagram
>>
Interior Lighting System
>>
Theft-Deterrent System
Theft-Deterrent System

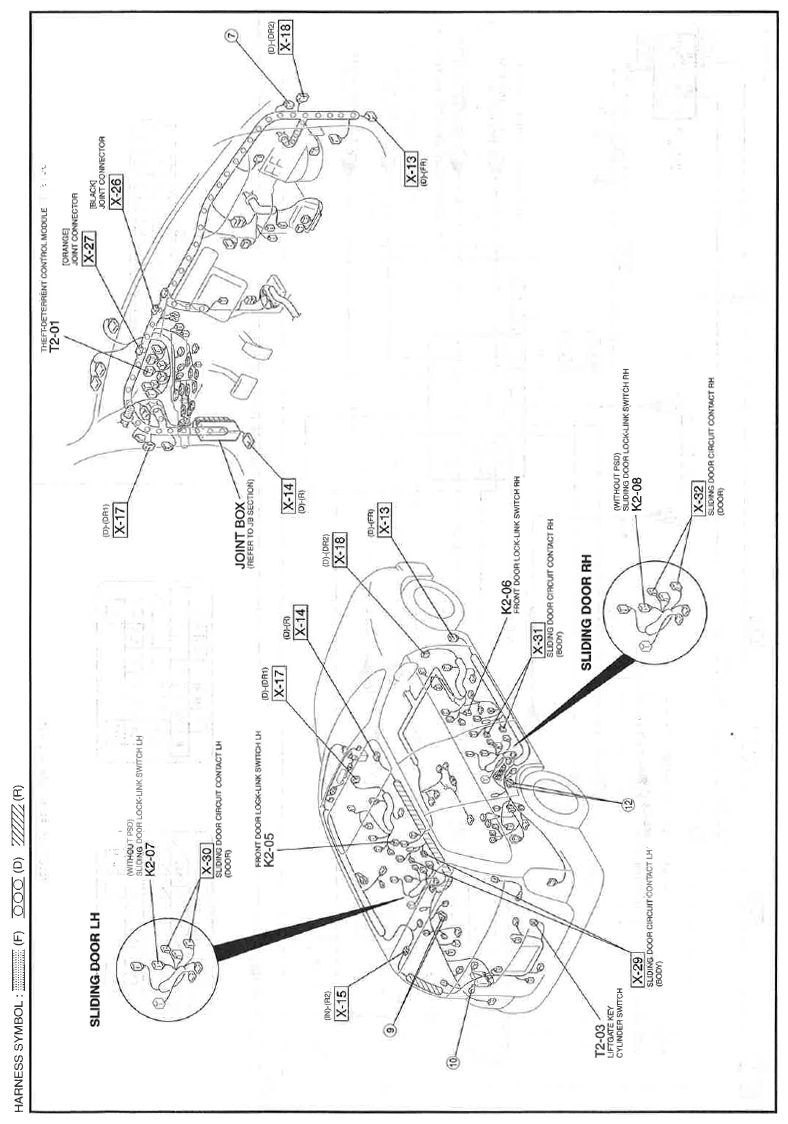

Fig 1: Theft-Deterrent System Wiring Diagram (T-2a; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

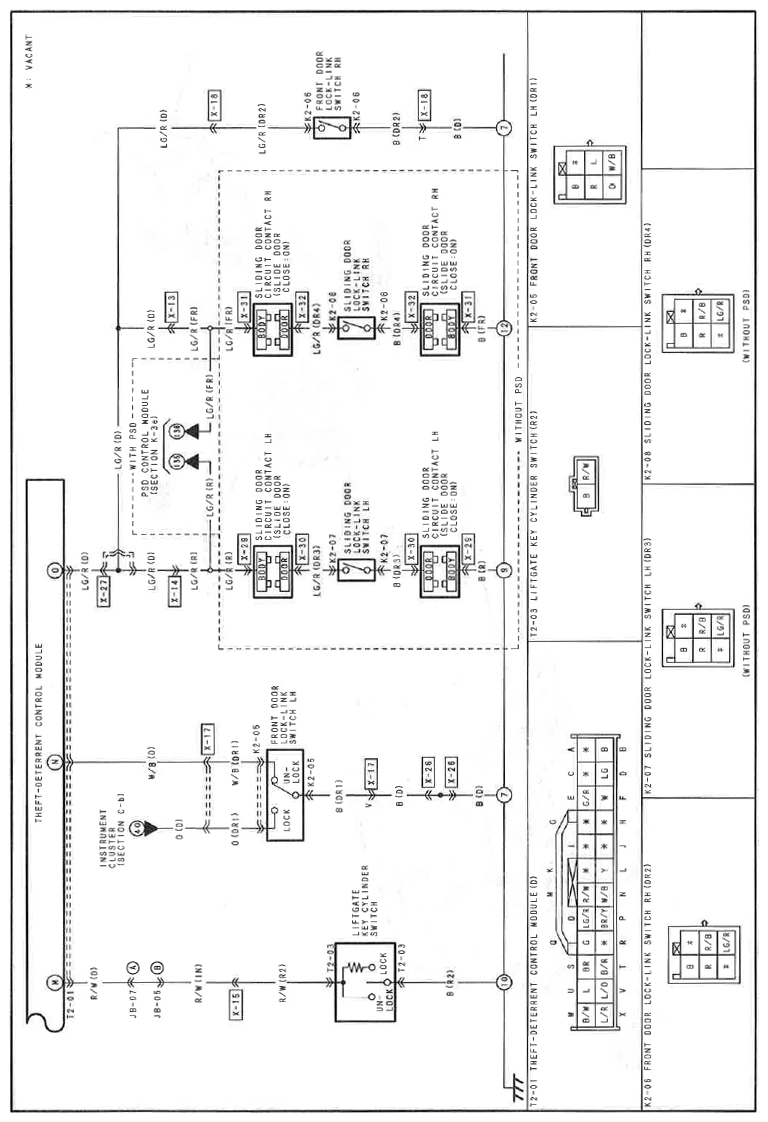

Fig 2: Theft-Deterrent System Wiring Diagram (T-2a; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.

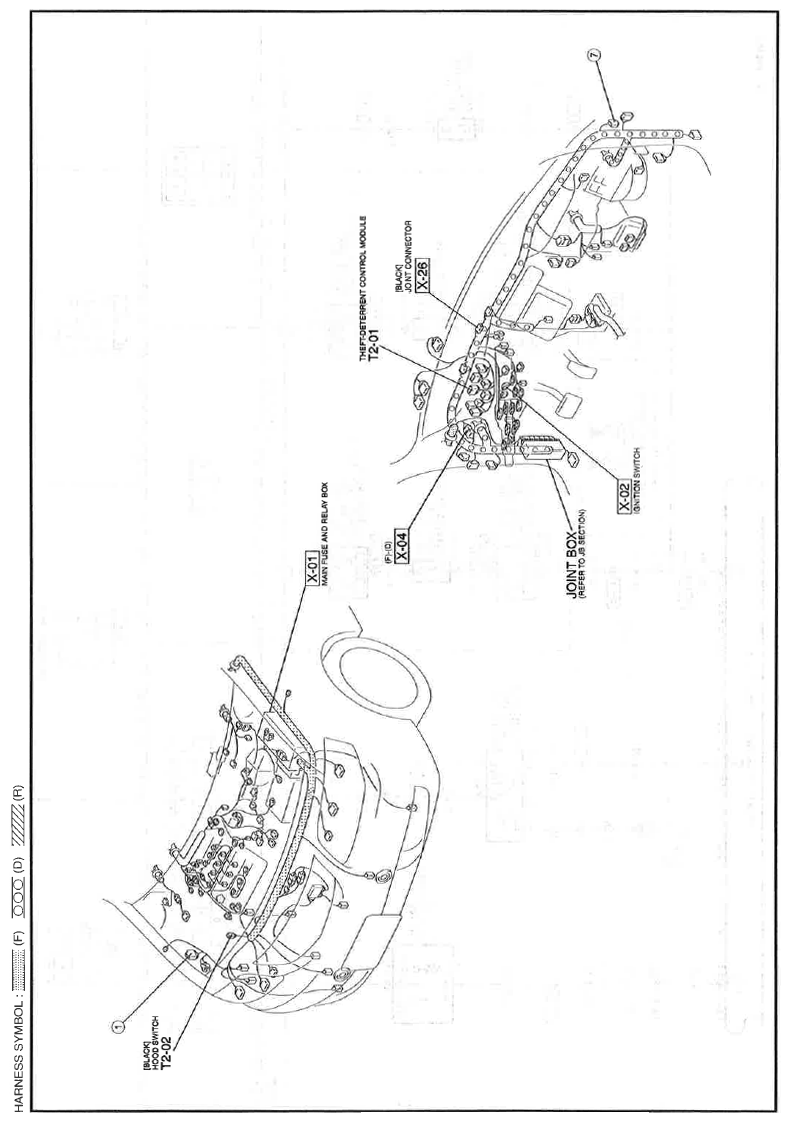

Fig 3: Theft-Deterrent System Wiring Diagram (T-2b; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

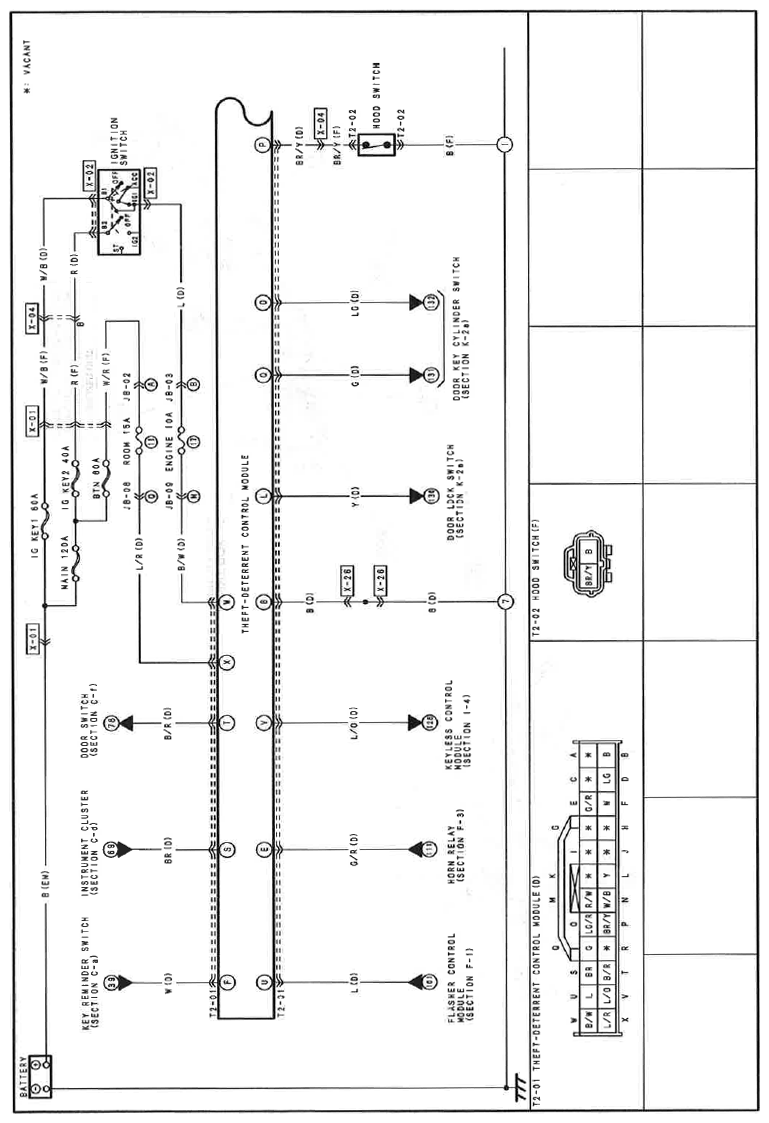

Fig 4: Theft-Deterrent System Wiring Diagram (T-2b; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
