Interior Lighting System
>>
Sliding Sunroof
Sliding Sunroof

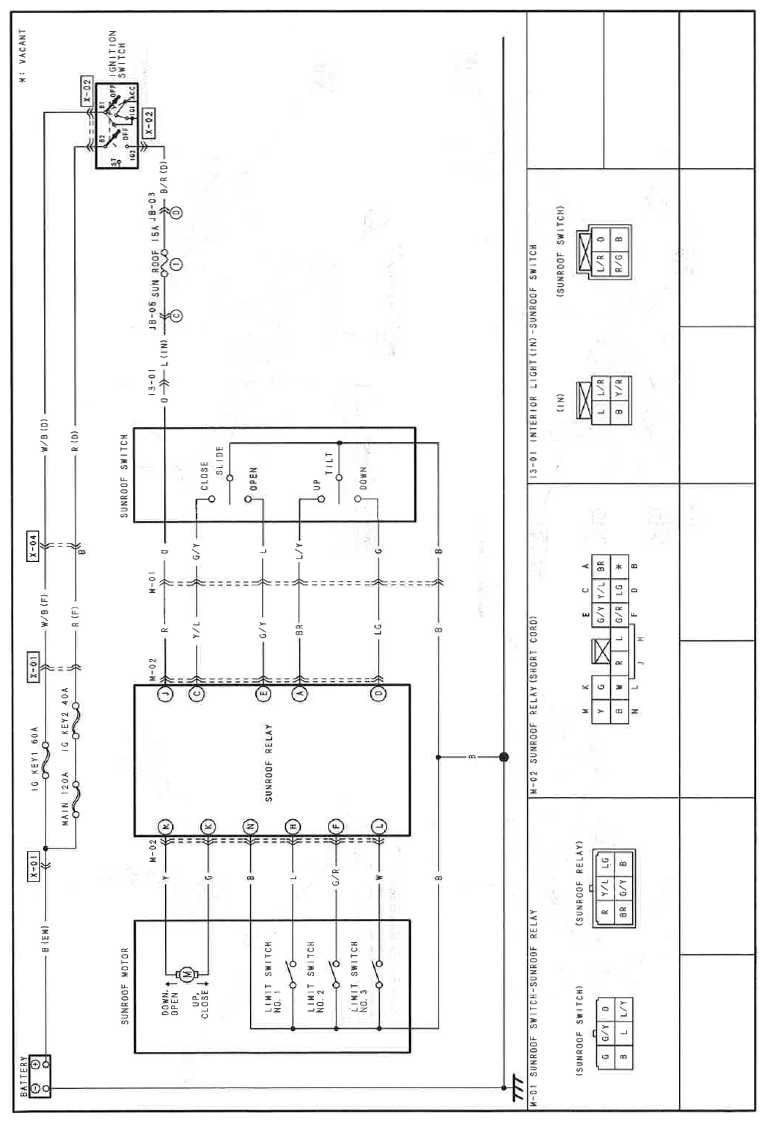

Fig 1: Sliding Sunroof Wiring Diagram (M; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

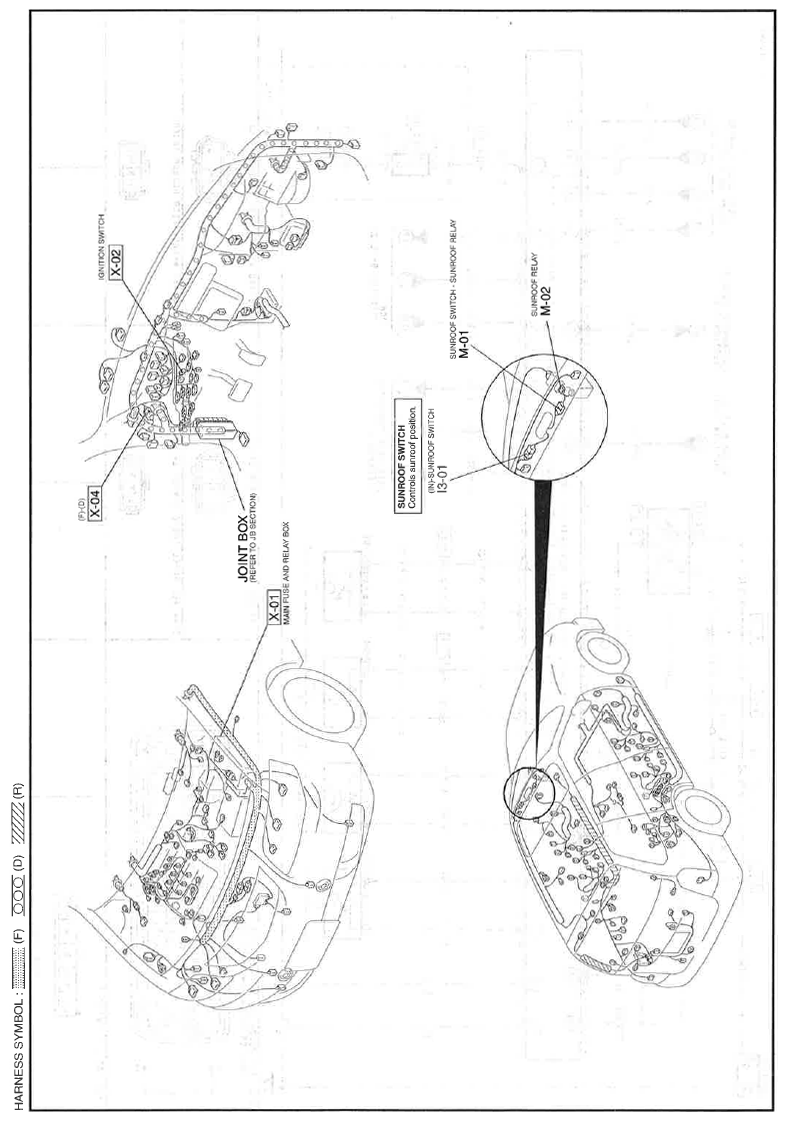

Fig 2: Sliding Sunroof Wiring Diagram (M; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
