Power Window System

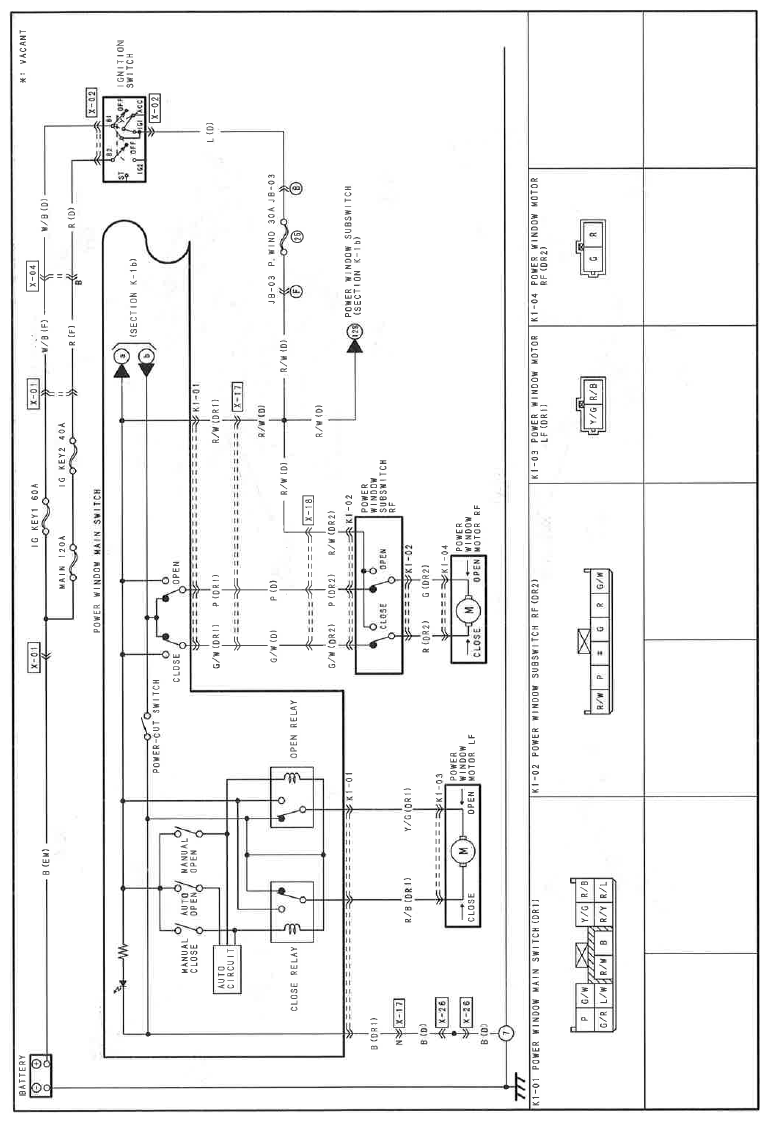

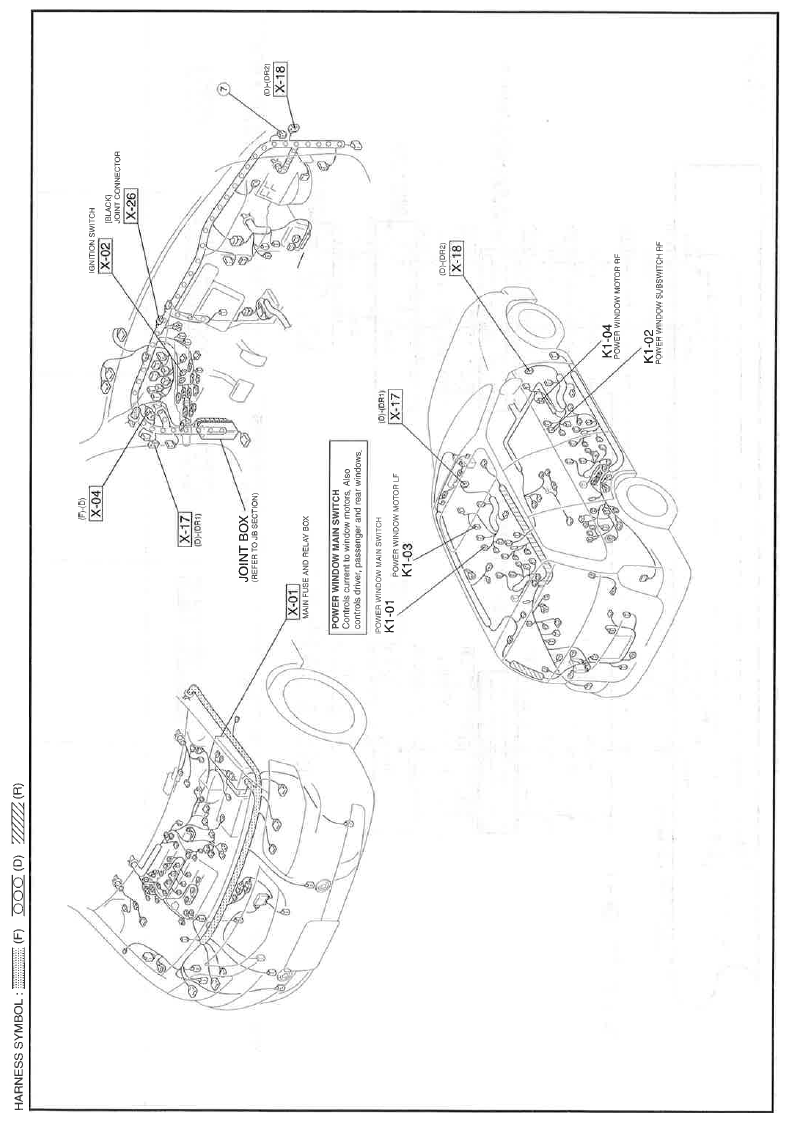

Fig 1: Power Window System Wiring Diagram (K-1a; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

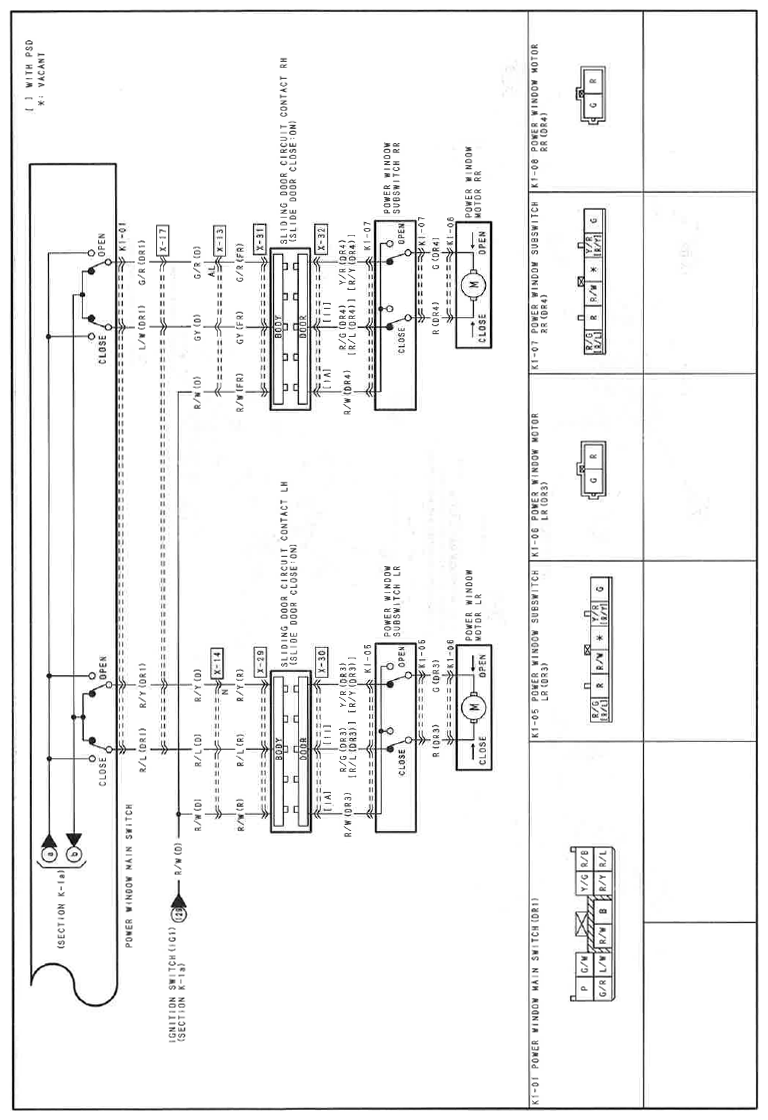

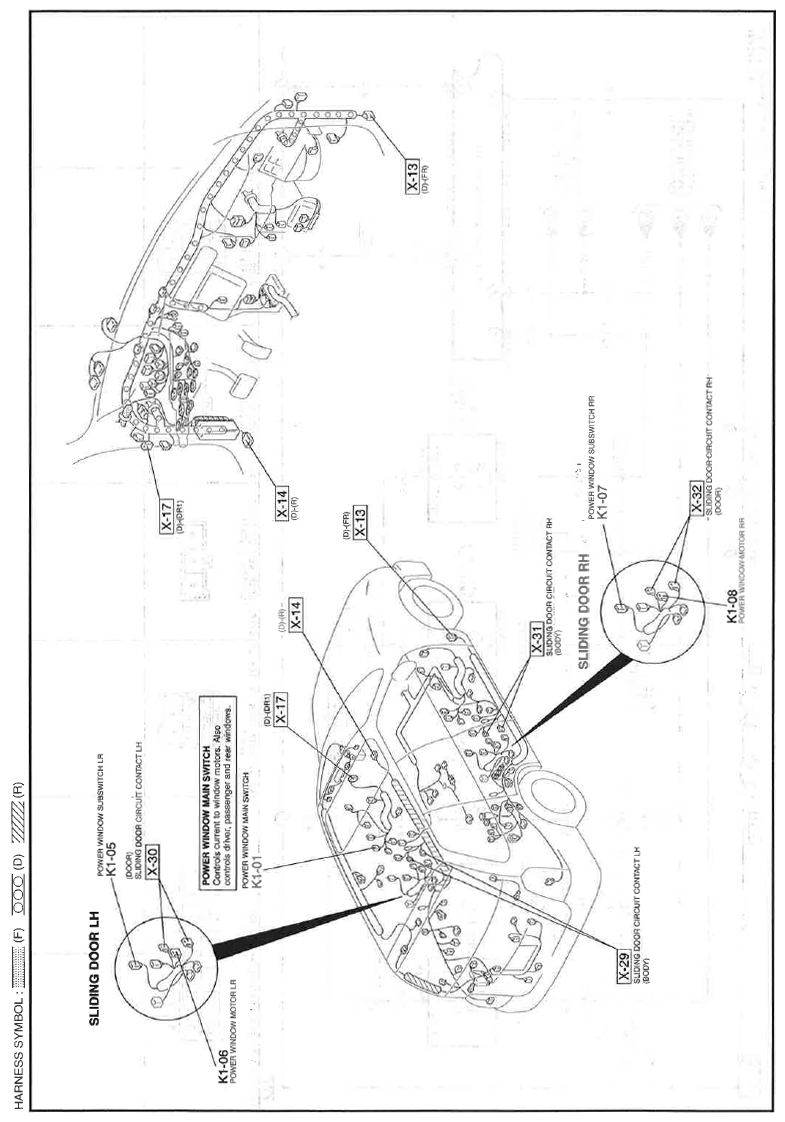

Fig 2: Power Window System Wiring Diagram (K-1a; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 3: Power Window System Wiring Diagram (K-1b; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Power Window System Wiring Diagram (K-1b; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
