Wiring Diagrams
>>
OEM Wiring Diagram
>>
Interior Lighting System
>>
Power Seat
Power Seat

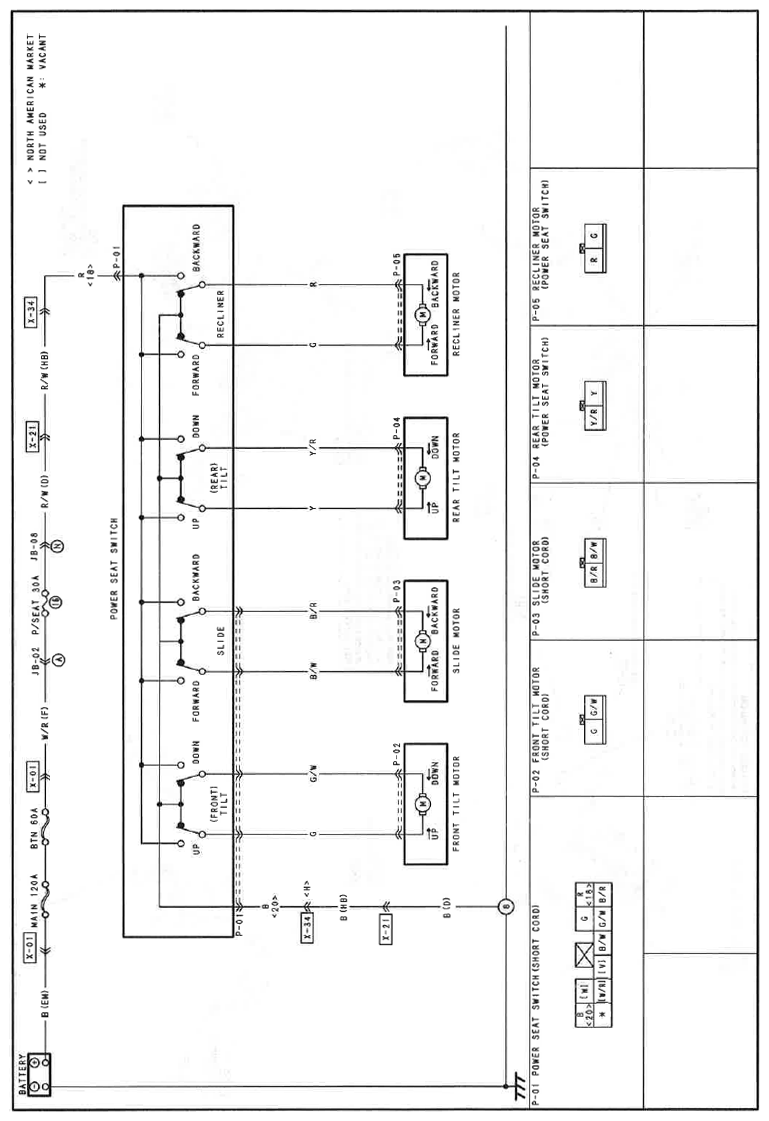

Fig 1: Power Seat Wiring Diagram (P; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

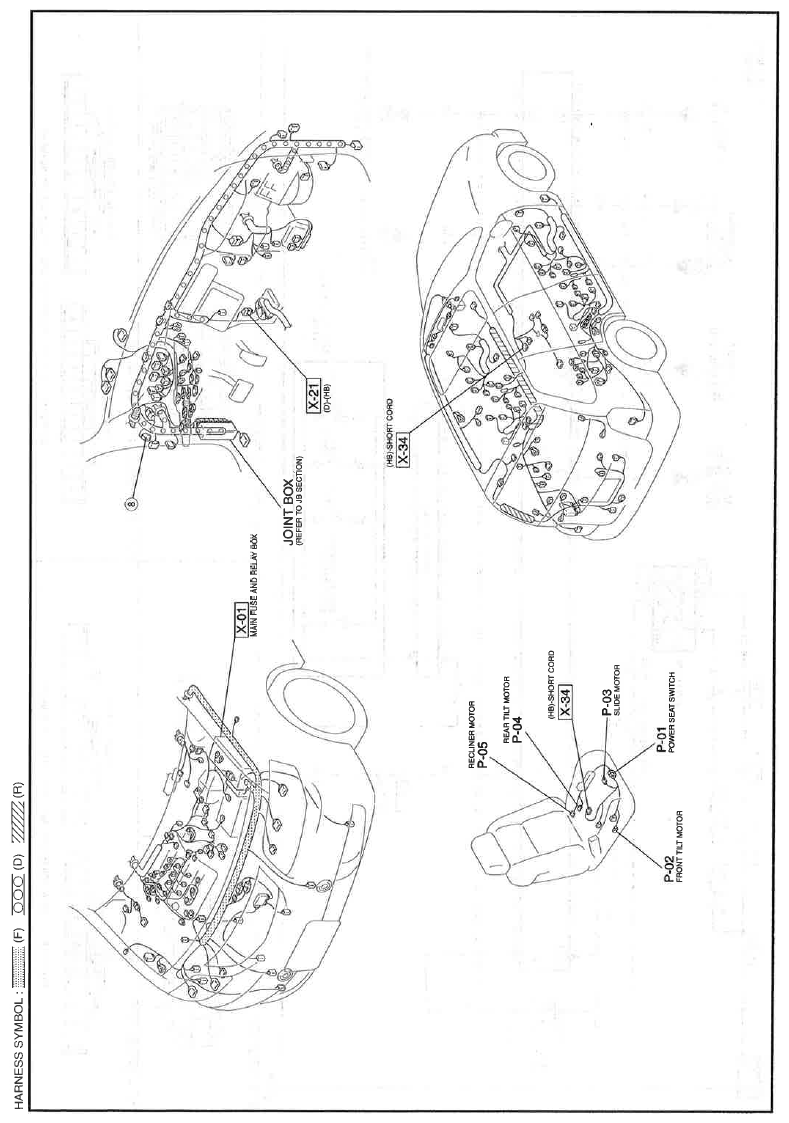

Fig 2: Power Seat Wiring Diagram (P; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
