OEM Wiring Diagram
>>
Interior Lighting System
>>
Power Door Lock System
Power Door Lock System

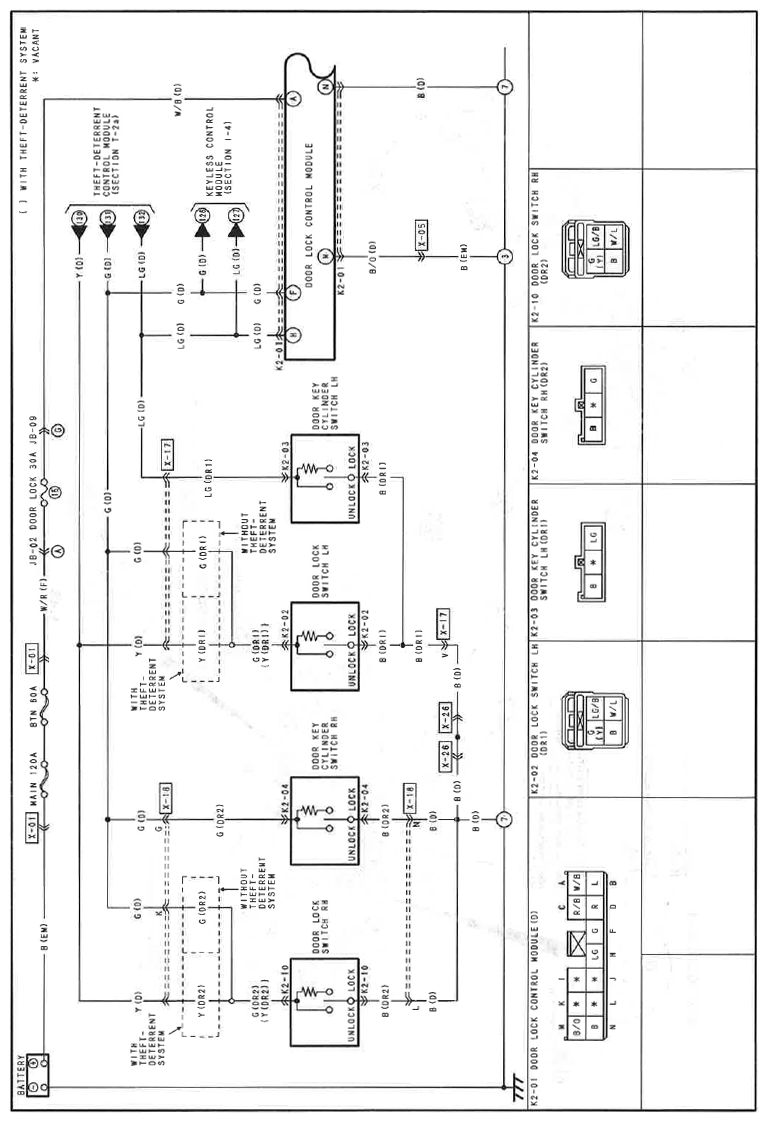

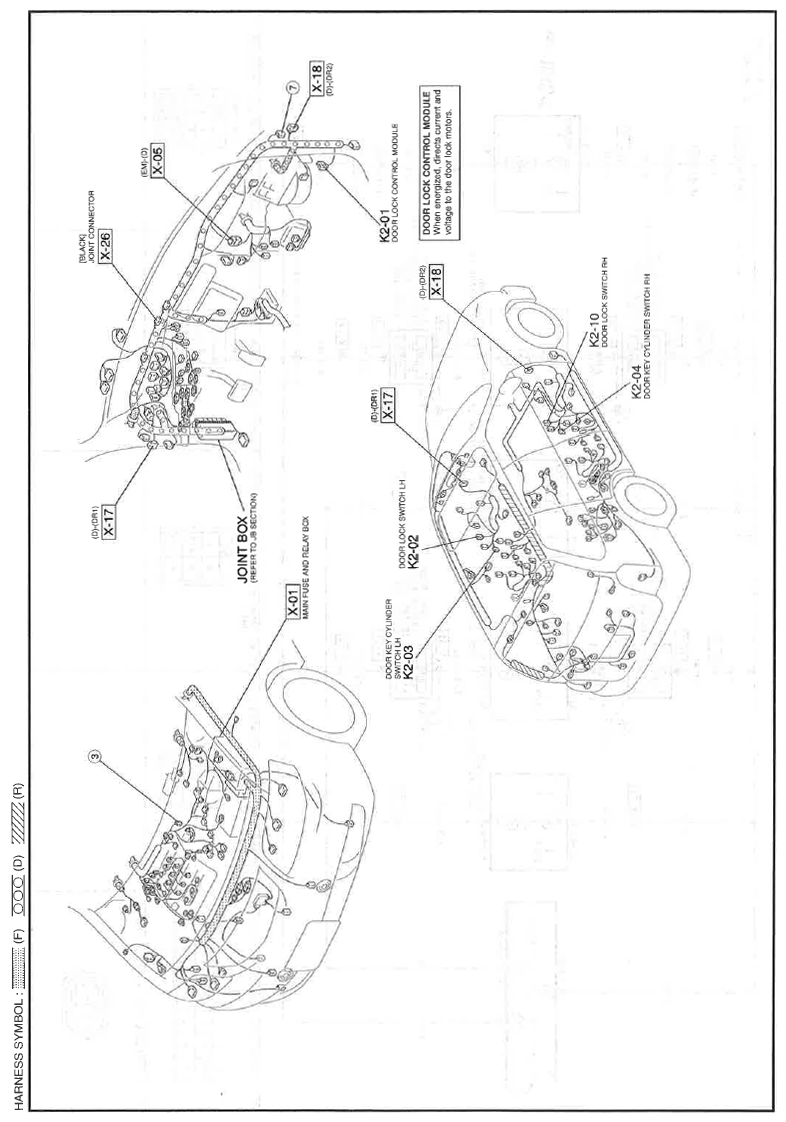

Fig 1: Power Door Lock System Wiring Diagram (K-2a; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

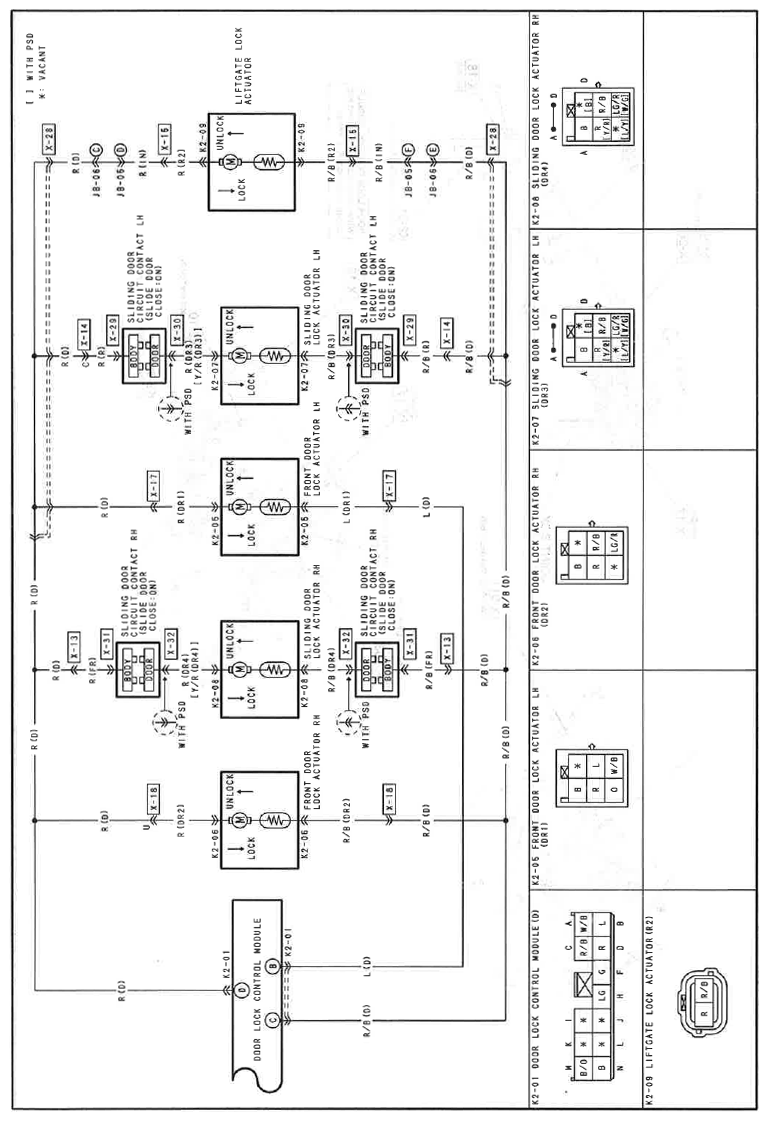

Fig 2: Power Door Lock System Wiring Diagram (K-2a; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.

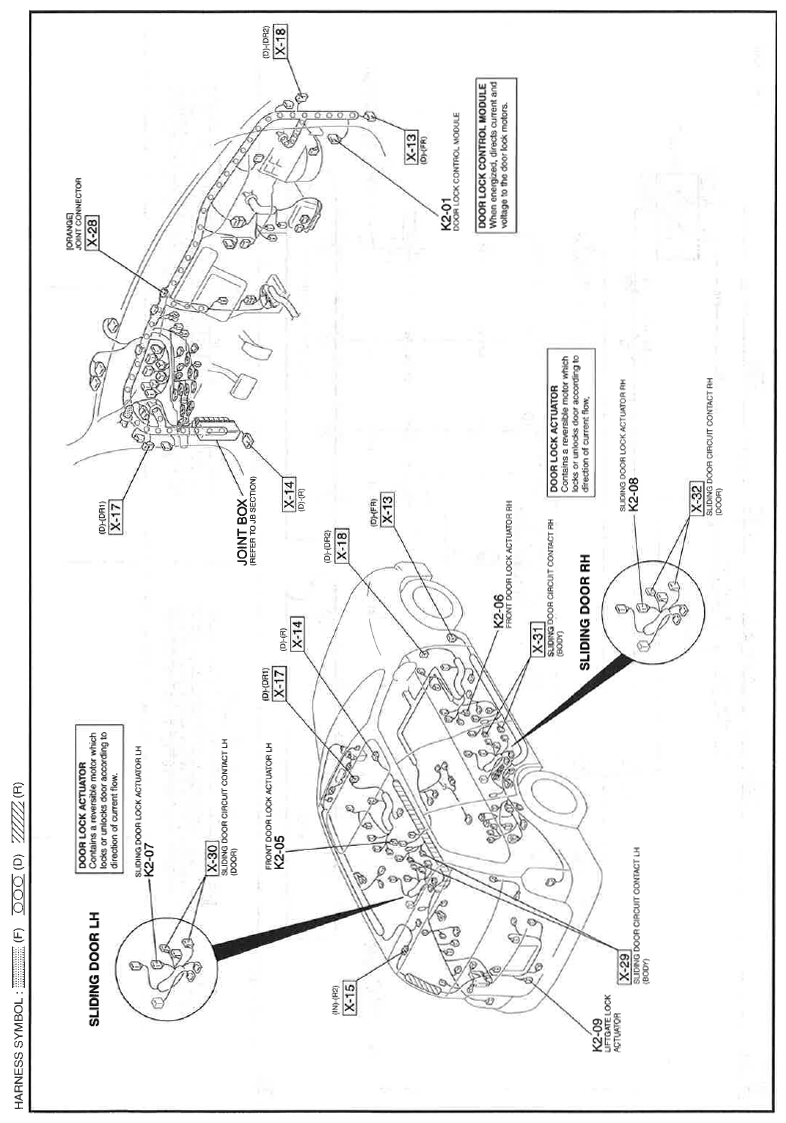

Fig 3: Power Door Lock System Wiring Diagram (K-2b; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Power Door Lock System Wiring Diagram (K-2b; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.

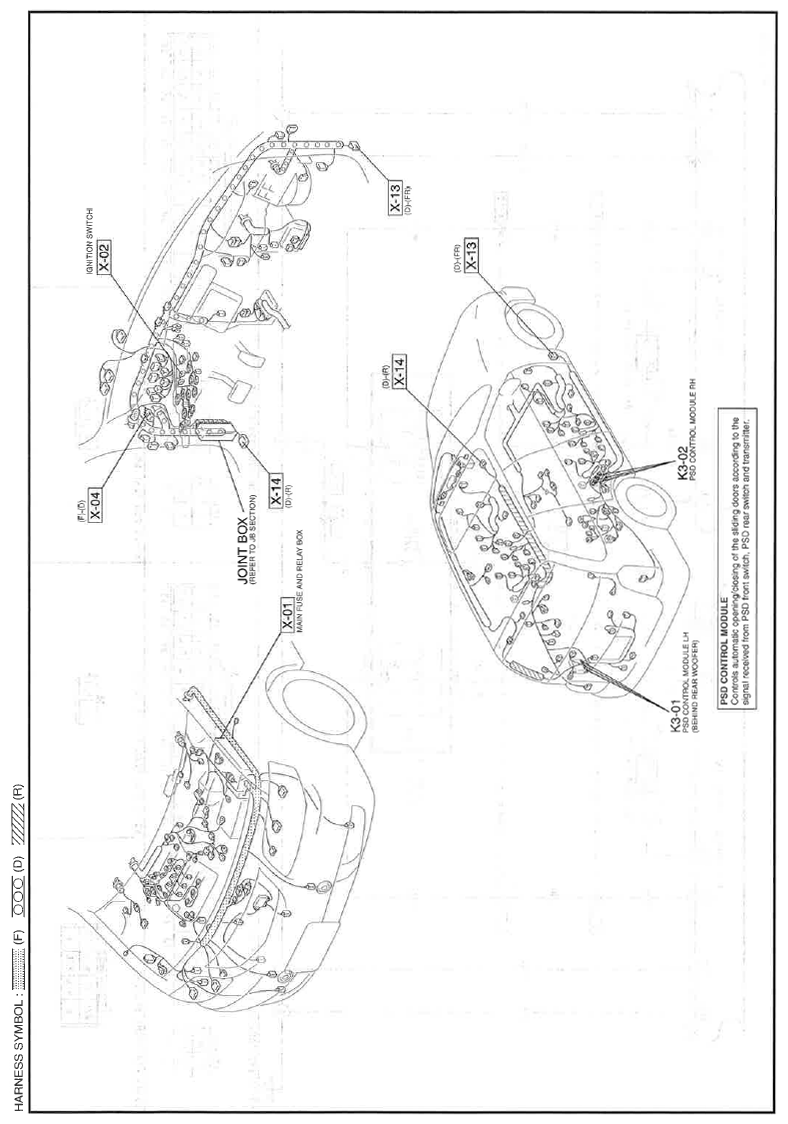

Fig 5: Power Door Lock System Wiring Diagram (K-3a; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

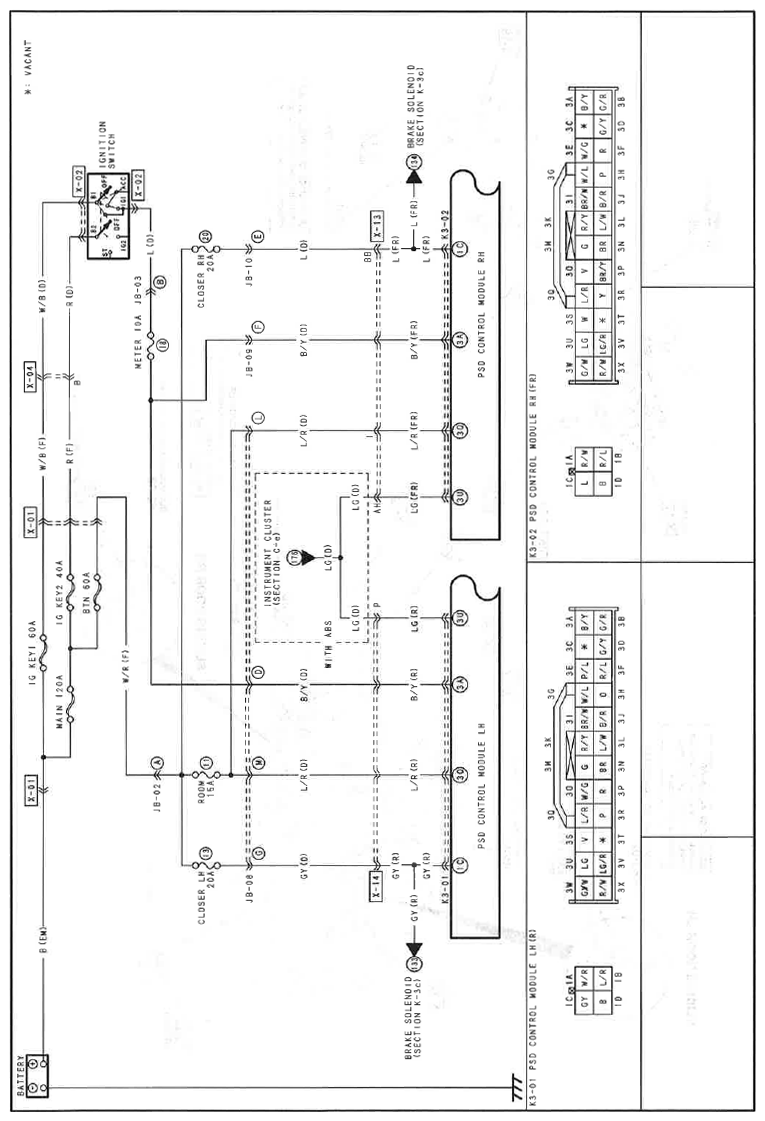

Fig 6: Power Door Lock System Wiring Diagram (K-3a; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
