Wiring Diagrams
>>
OEM Wiring Diagram
>>
Interior Lighting System
>>
Keyless Entry System
Keyless Entry System

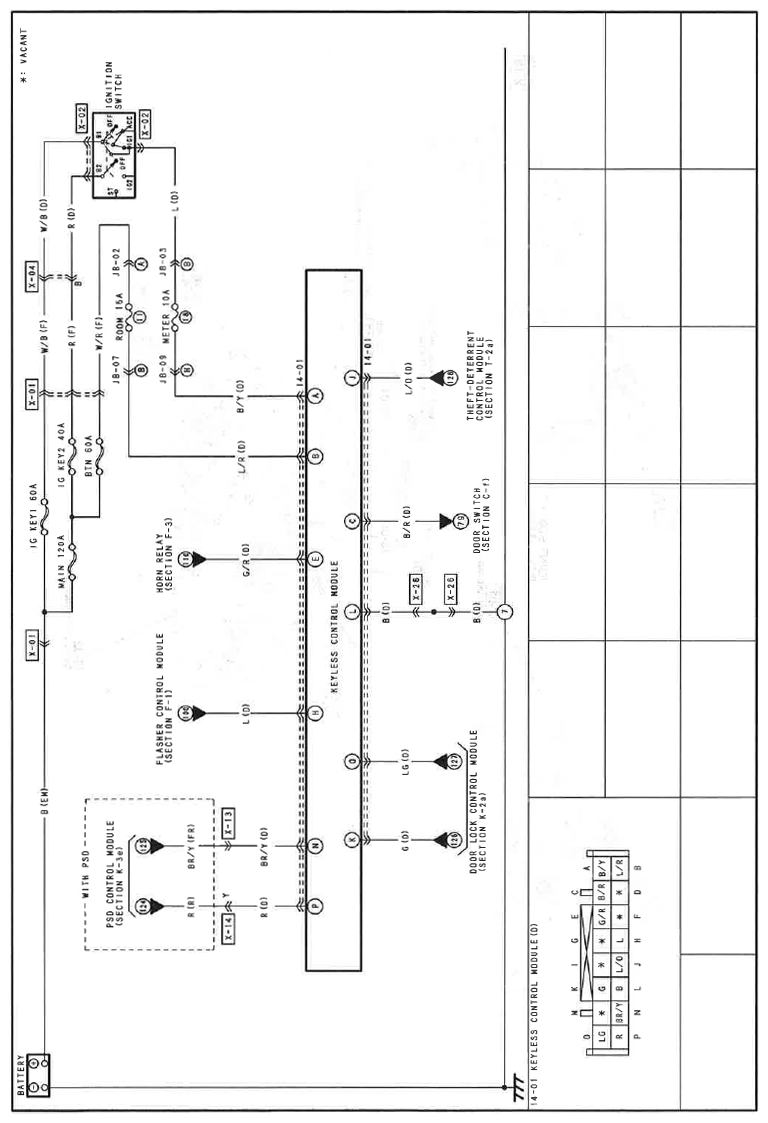

Fig 1: Keyless Entry System Wiring Diagram (I-4; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

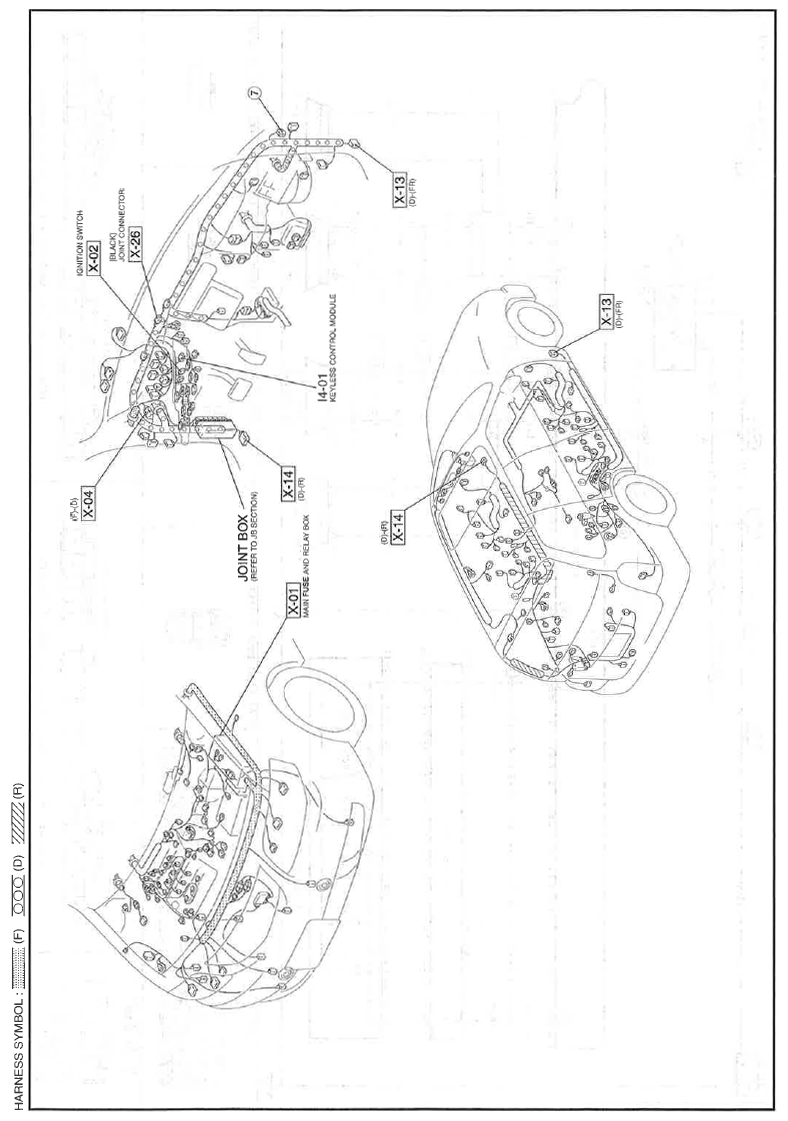

Fig 2: Keyless Entry System Wiring Diagram (I-4; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
