Immobilizer System
Fig 1: Immobilizer System Wiring Diagram (T1; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

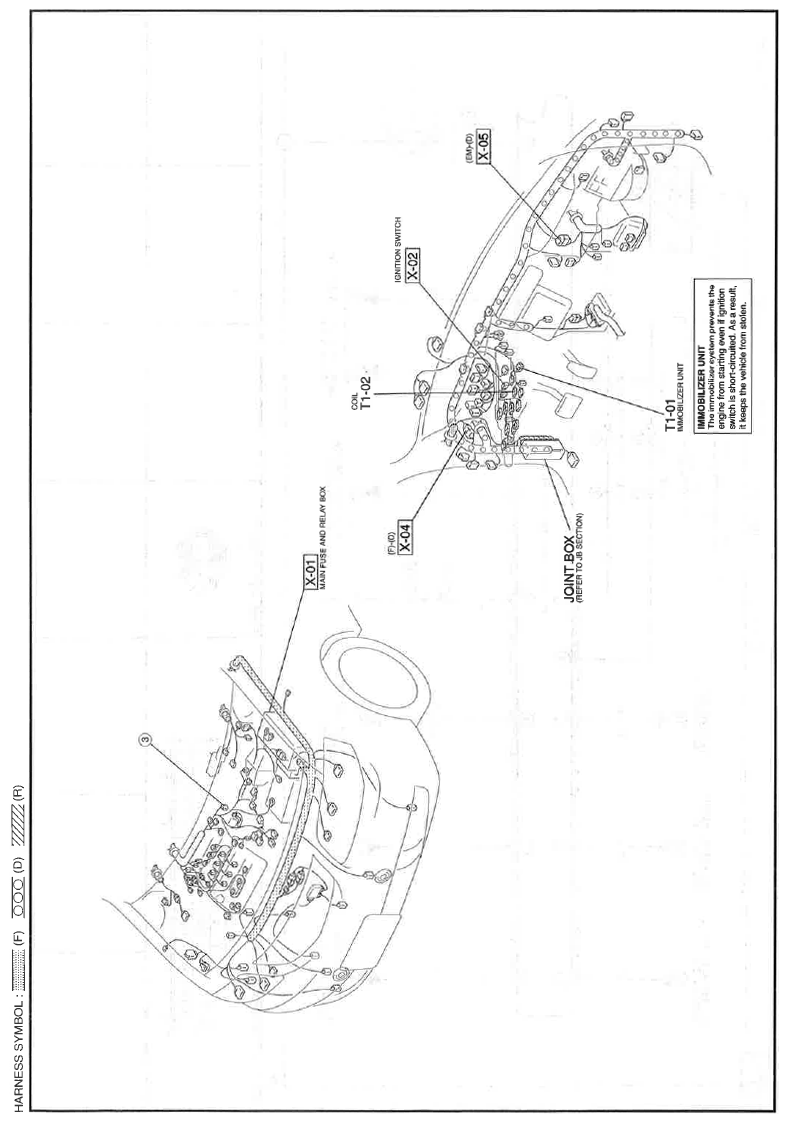

Fig 2: Immobilizer System Wiring Diagram (T1; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
