Audio System

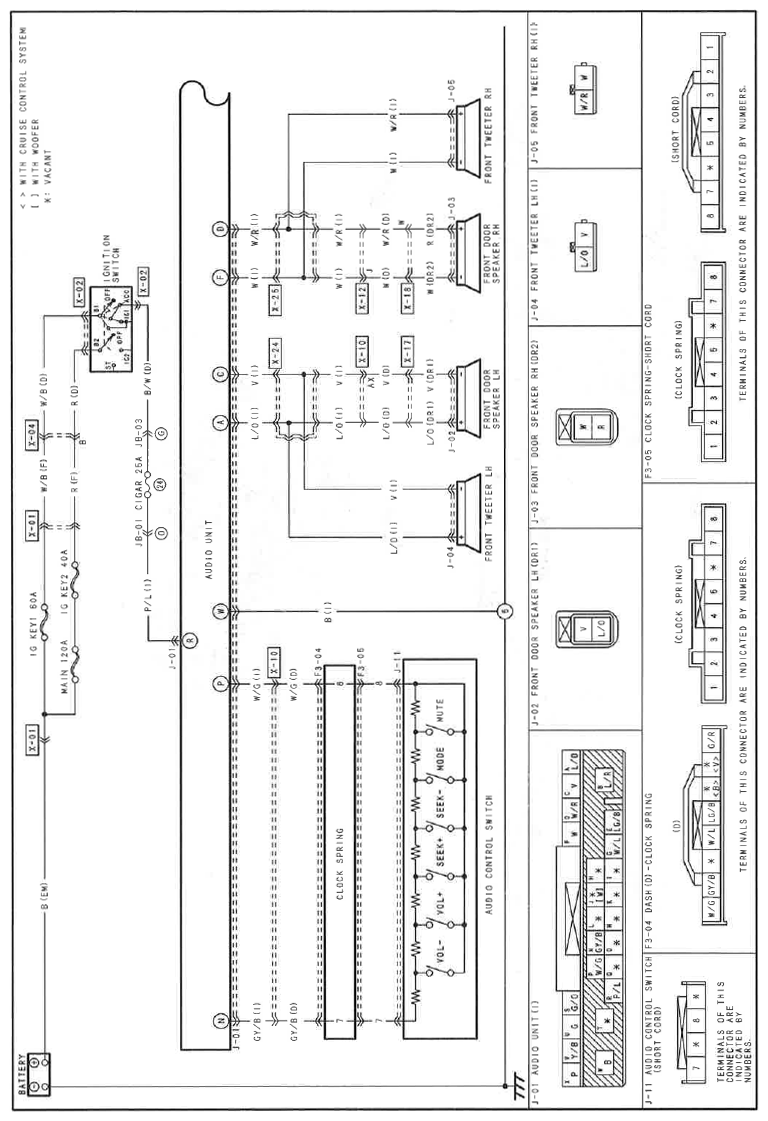

Fig 1: Audio System Wiring Diagram (J-a; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

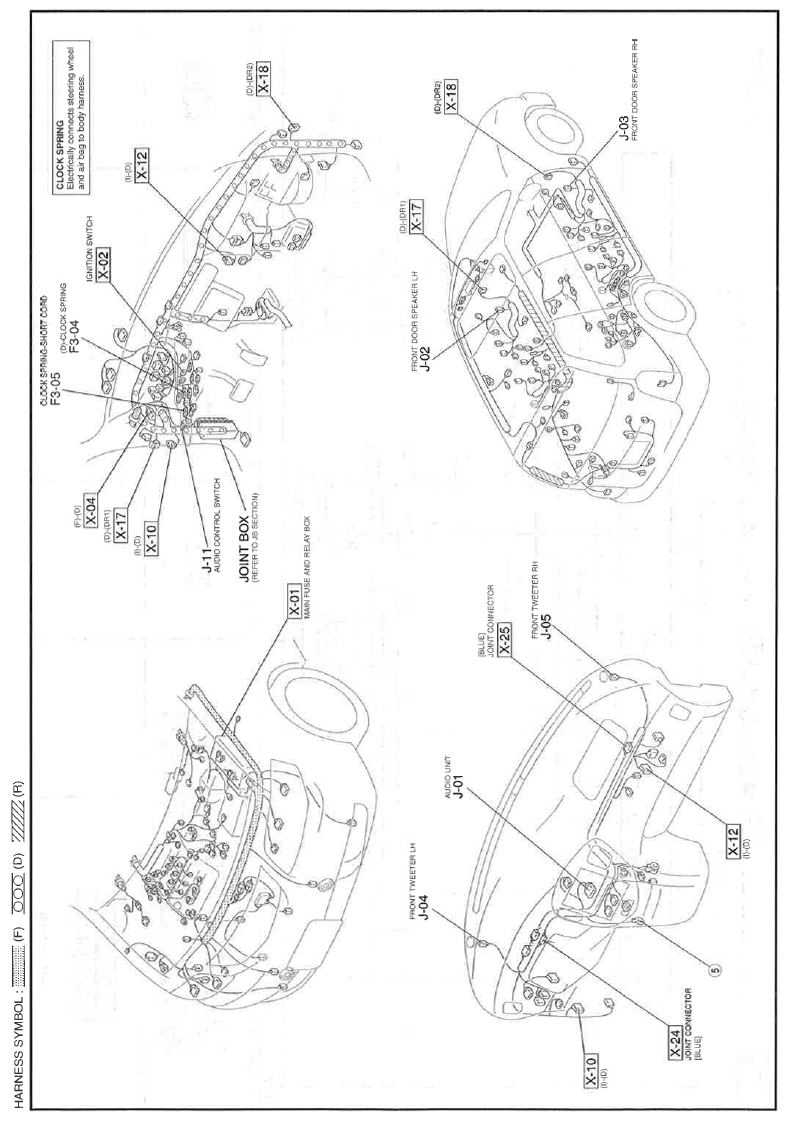

Fig 2: Audio System Wiring Diagram (J-a; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.

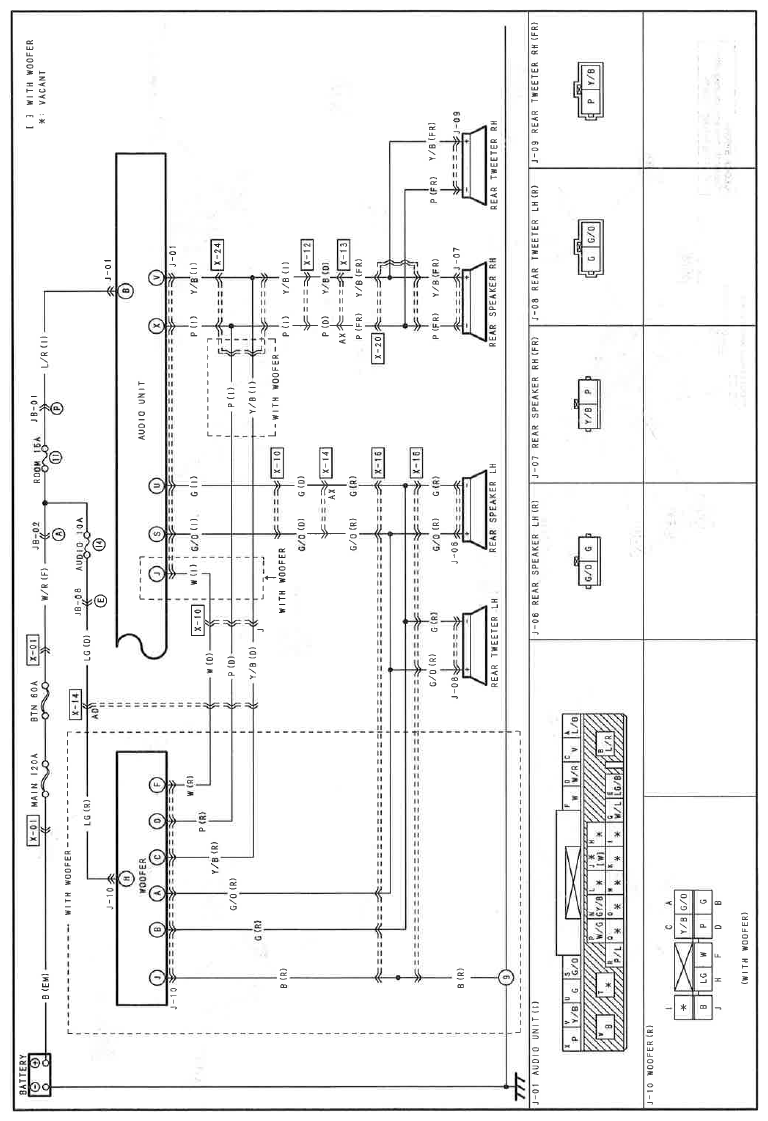

Fig 3: Audio System Wiring Diagram (J-b; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

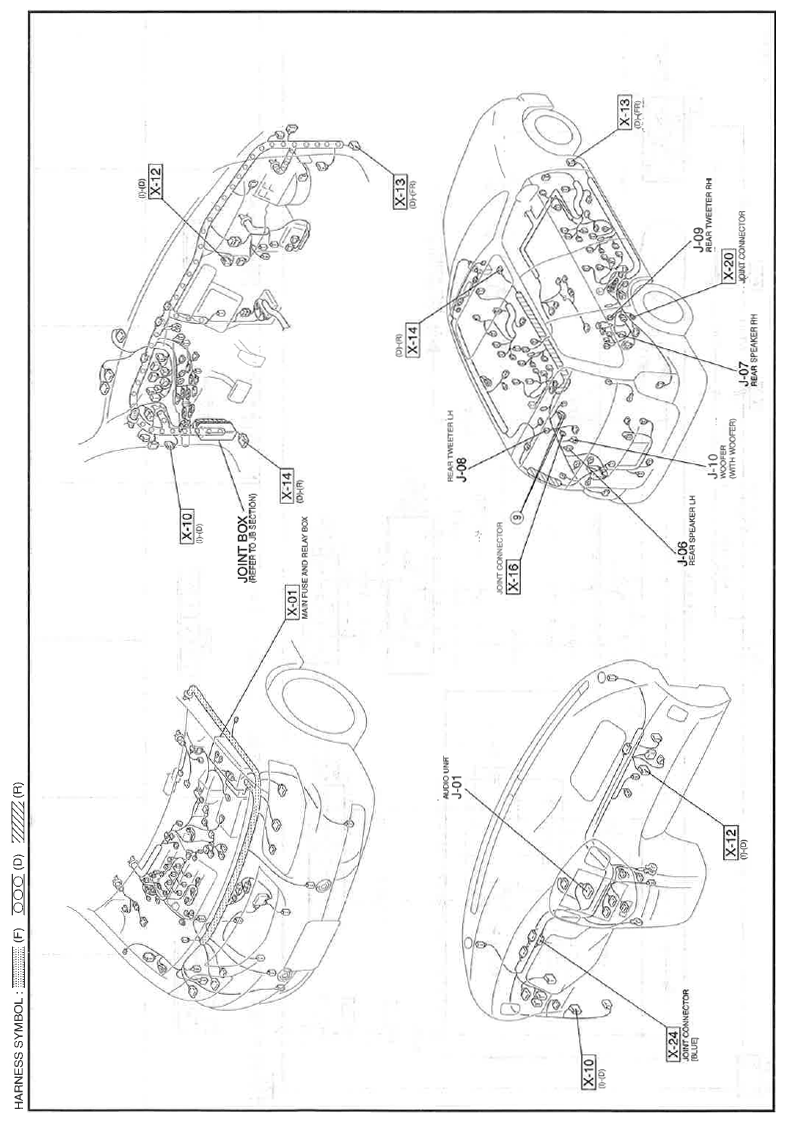

Fig 4: Audio System Wiring Diagram (J-b; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
