Antilock Brake System/Traction Control System
Antilock Brake System/Traction Control System

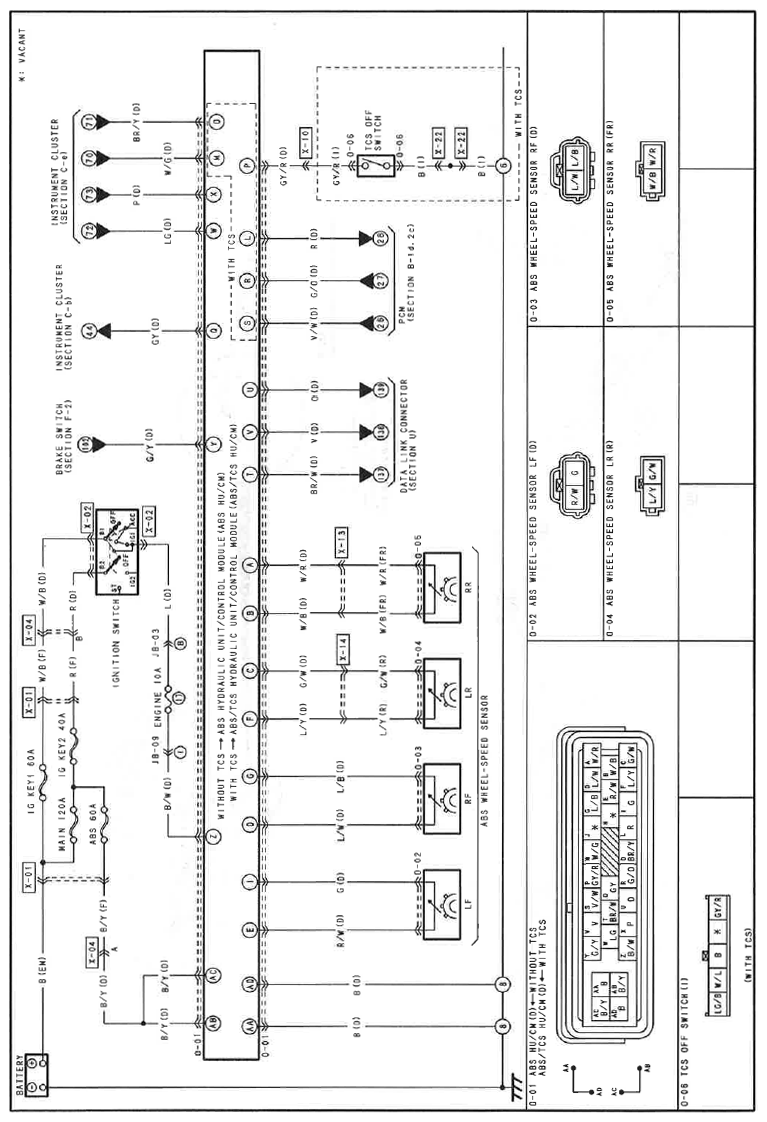

Fig 1: Antilock Brake System/Traction Control System Wiring Diagram (O; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Antilock Brake System/Traction Control System Wiring Diagram (O; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
