Condenser Fan System/Cooling Fan System

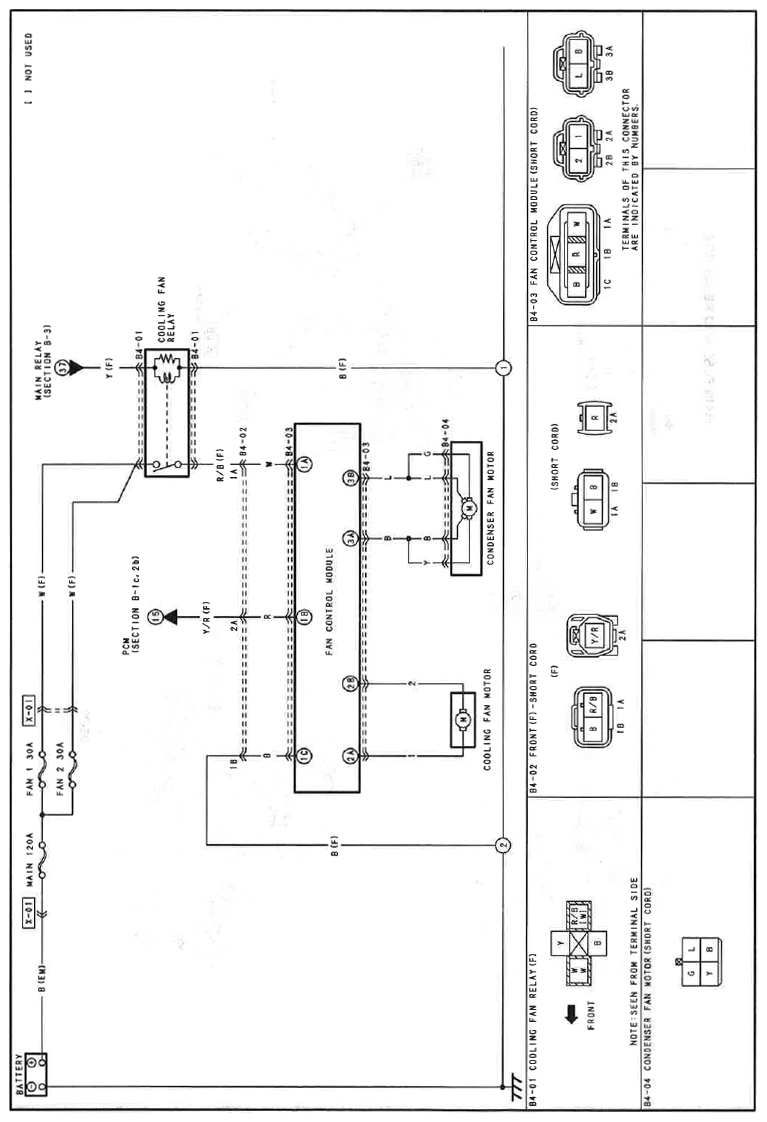

Fig 1: Condenser Fan System/Cooling Fan System Wiring Diagram (B-4; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

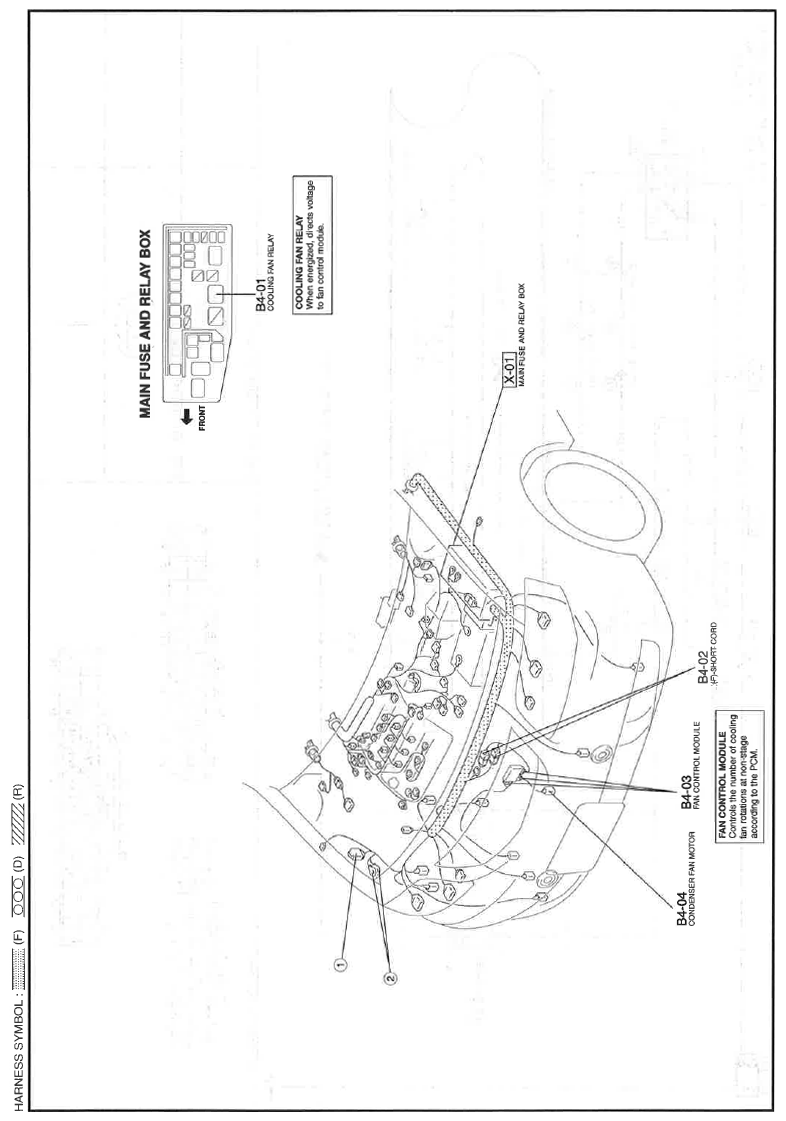

Fig 2: Condenser Fan System/Cooling Fan System Wiring Diagram (B-4; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
