Front Fog Light

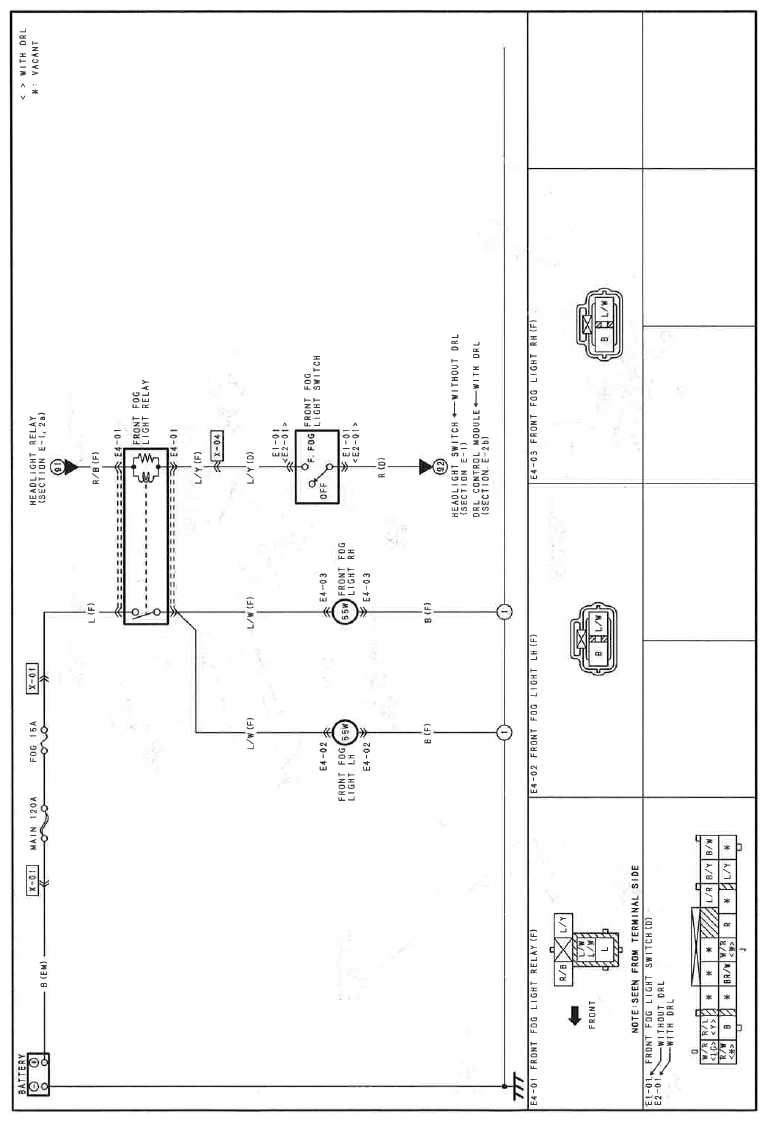

Fig 1: Front Fog Light Wiring Diagram (E-4; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

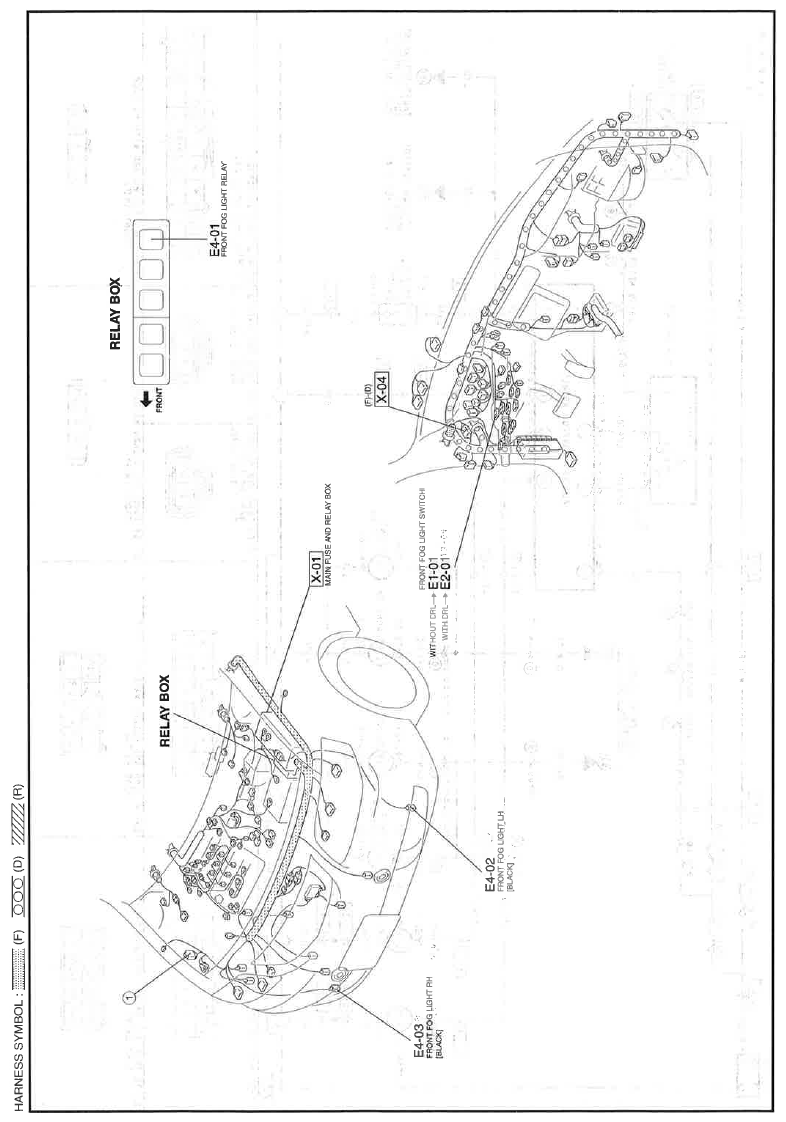

Fig 2: Front Fog Light Wiring Diagram (E-4; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
