Engine Control System (North AMERICAN Market)

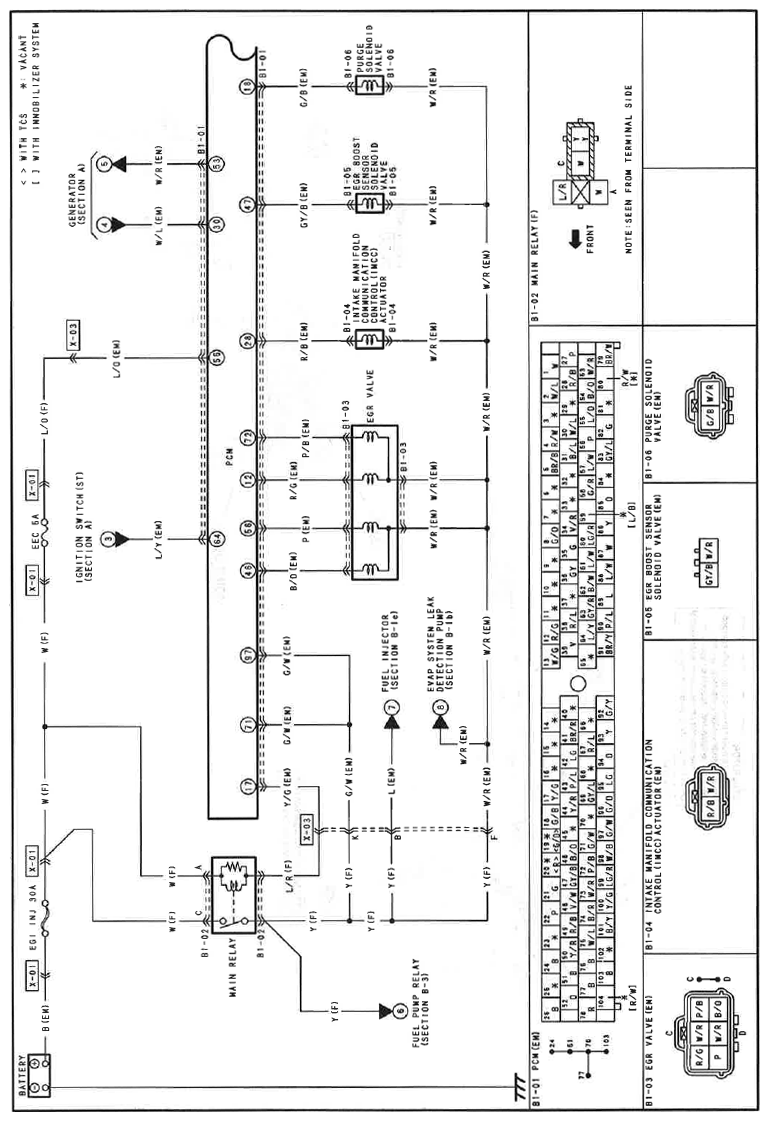

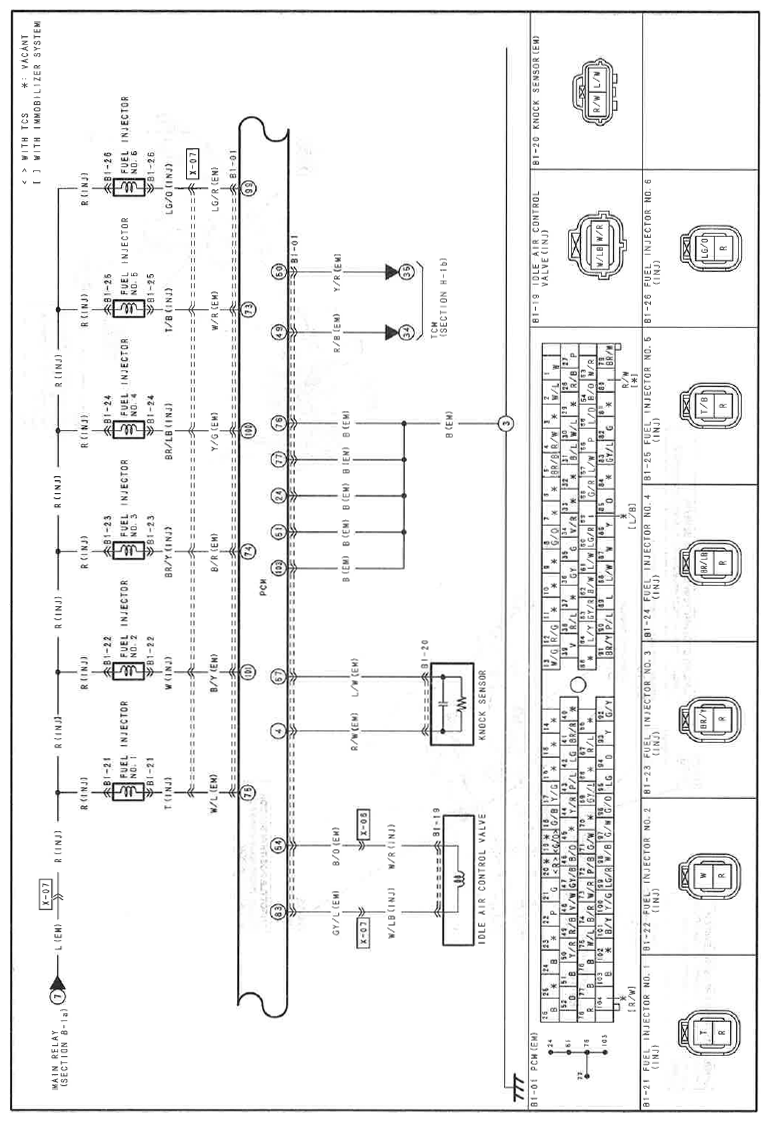

Fig 1: Engine Control System (North American Market) Wiring Diagram (B-1a; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

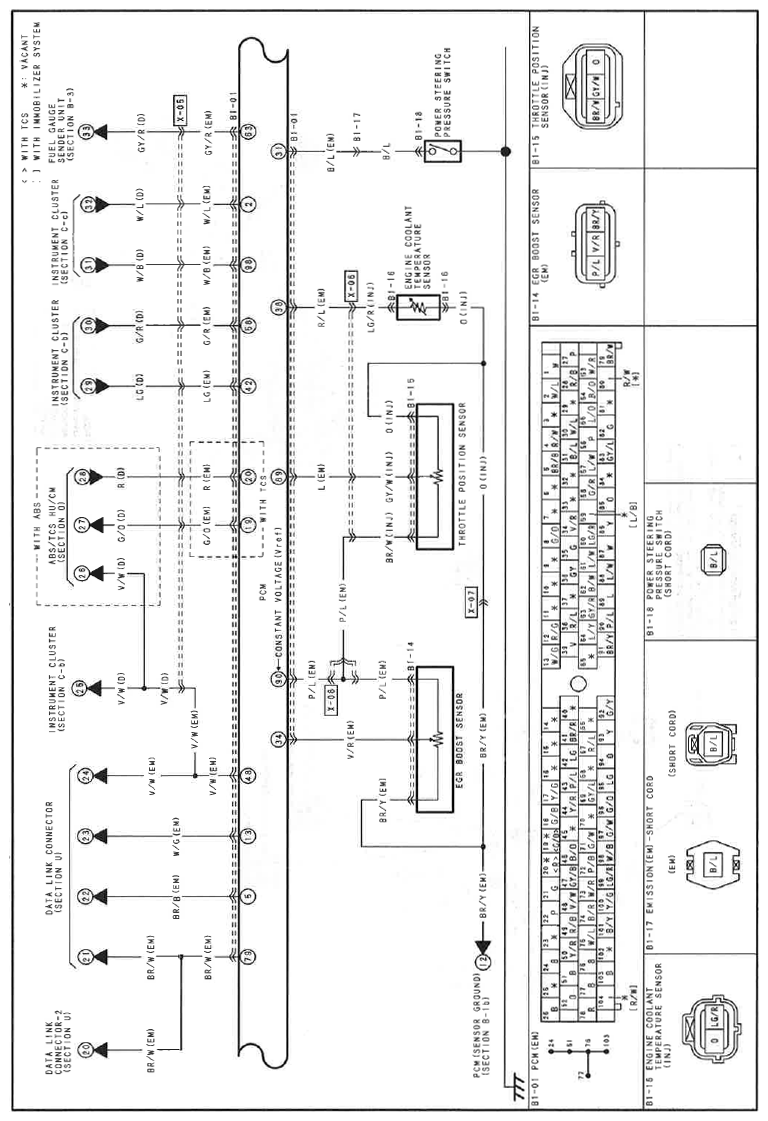

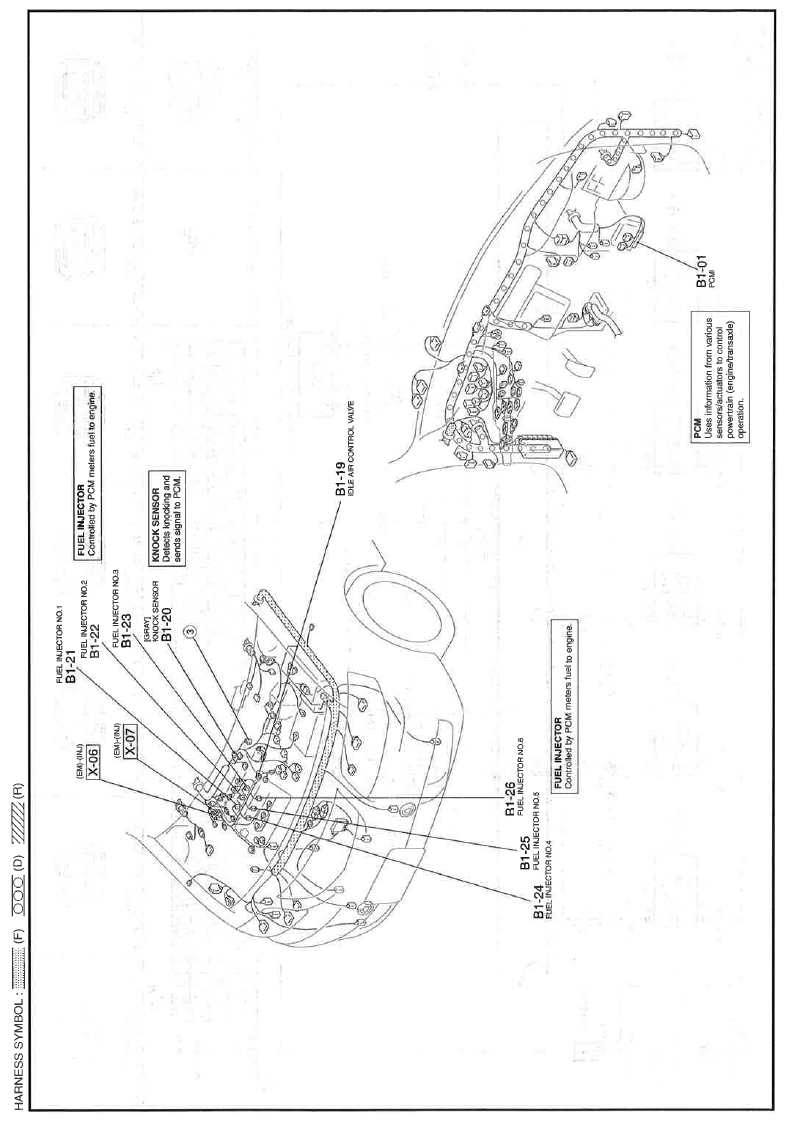

Fig 2: Engine Control System (North American Market) Wiring Diagram (B-1a; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

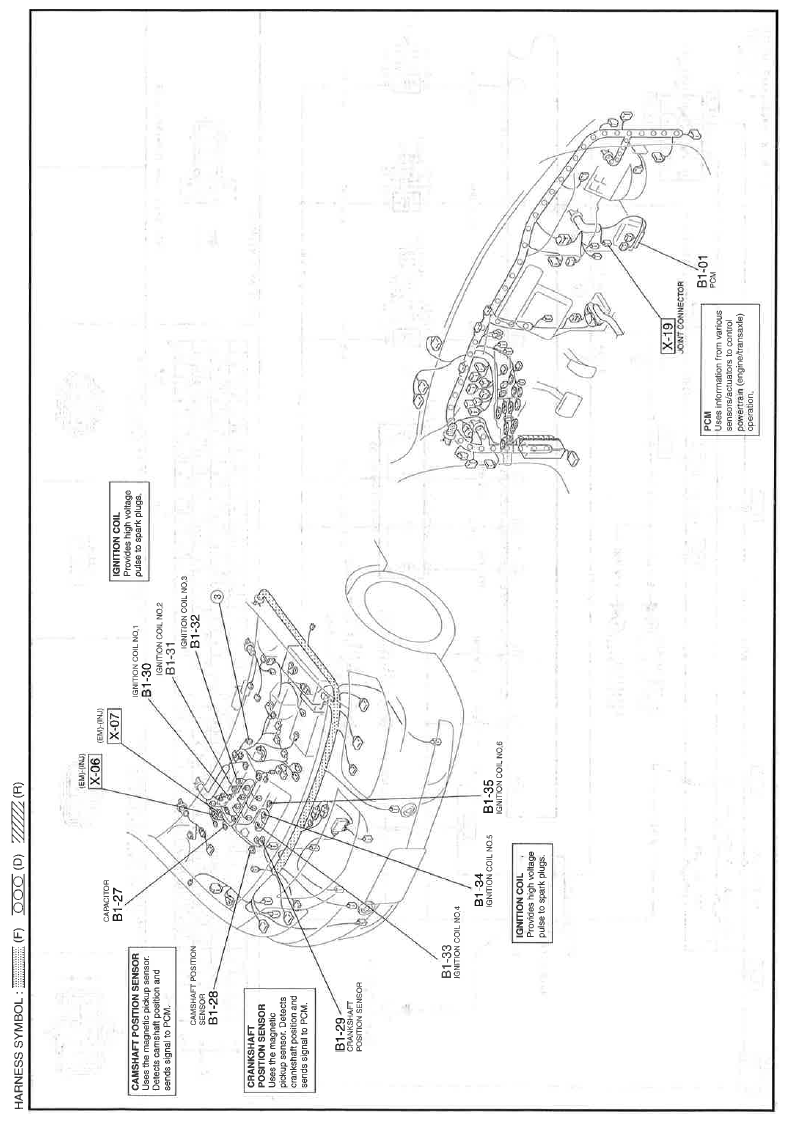

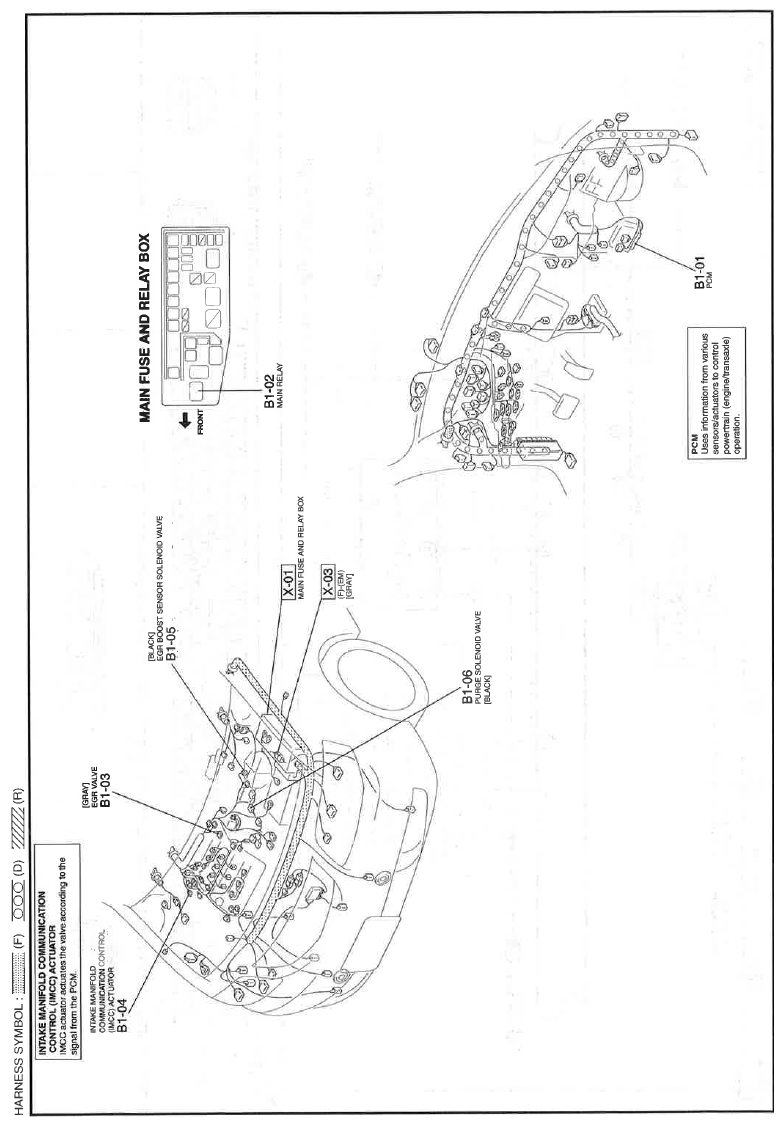

Fig 3: Engine Control System (North American Market) Wiring Diagram (B-1b; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

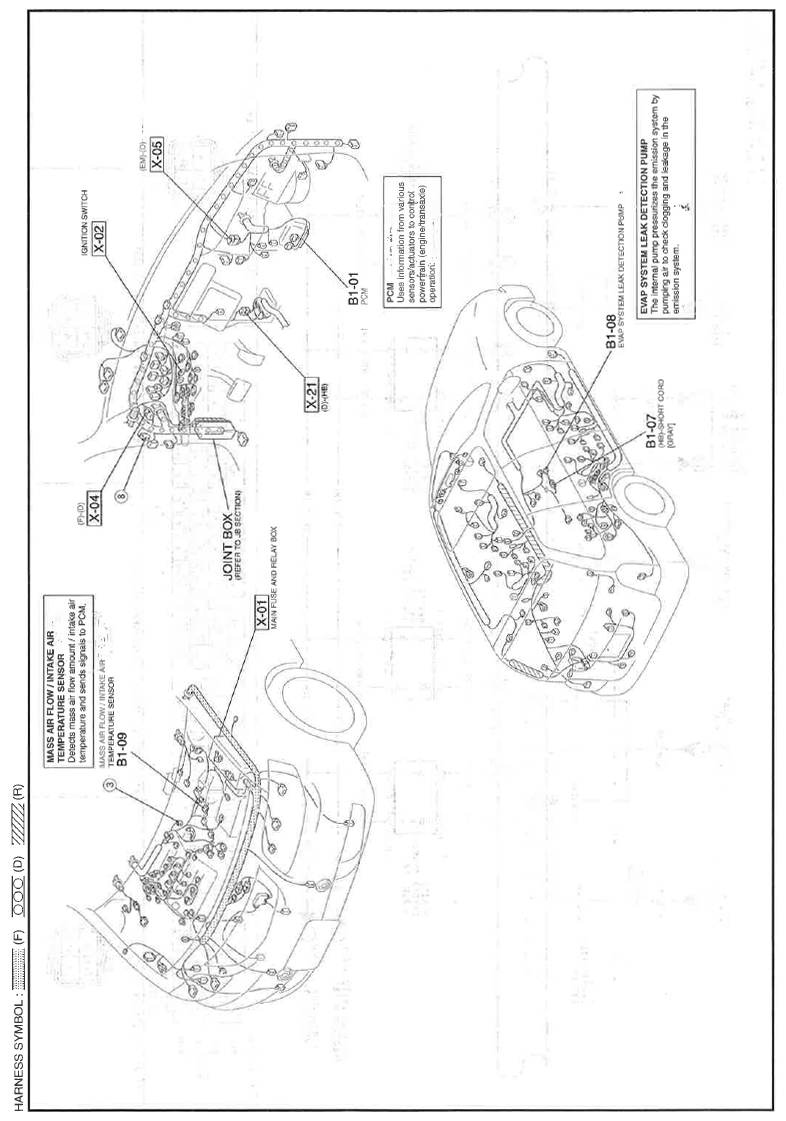

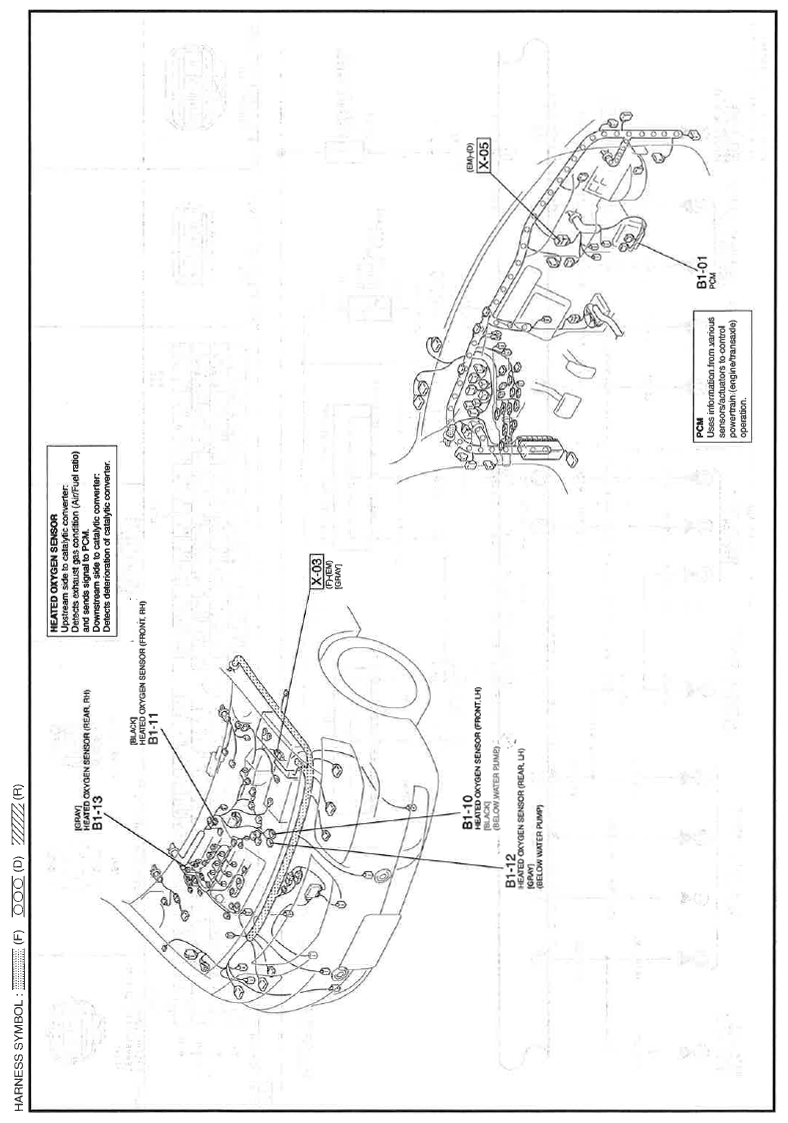

Fig 4: Engine Control System (North American Market) Wiring Diagram (B-1b; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

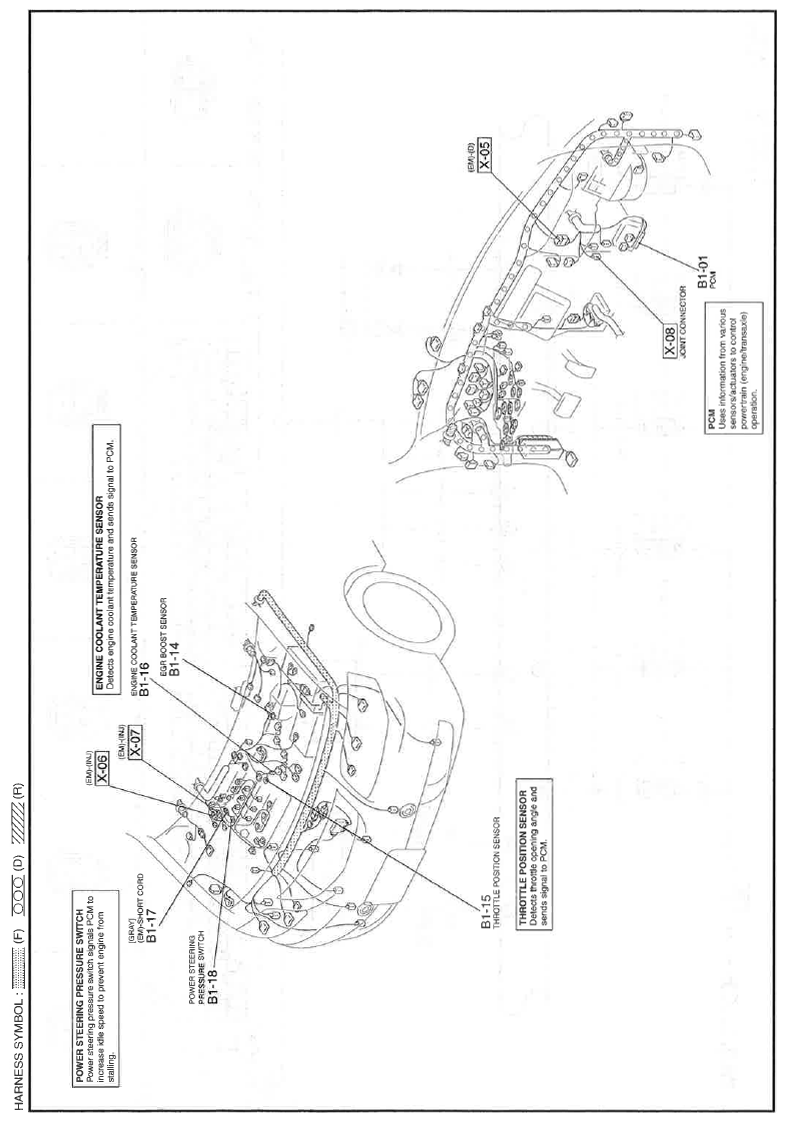

Fig 5: Engine Control System (North American Market) Wiring Diagram (B-1c; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

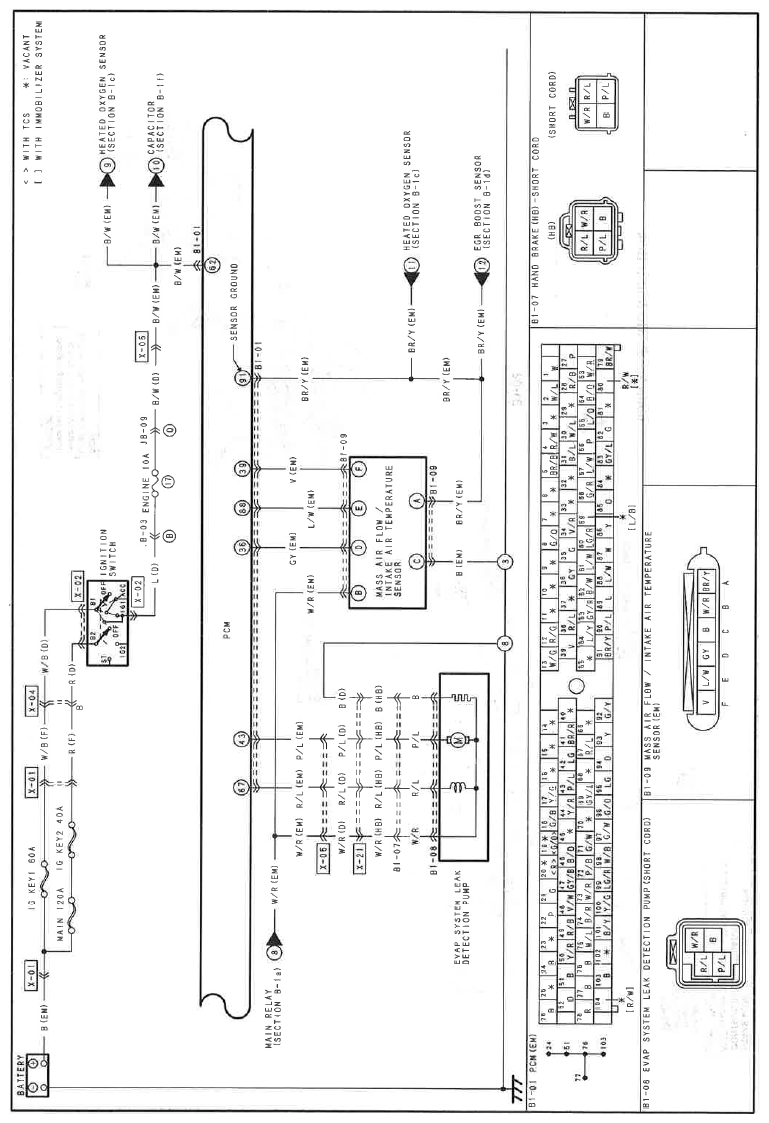

Fig 6: Engine Control System (North American Market) Wiring Diagram (B-1c; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

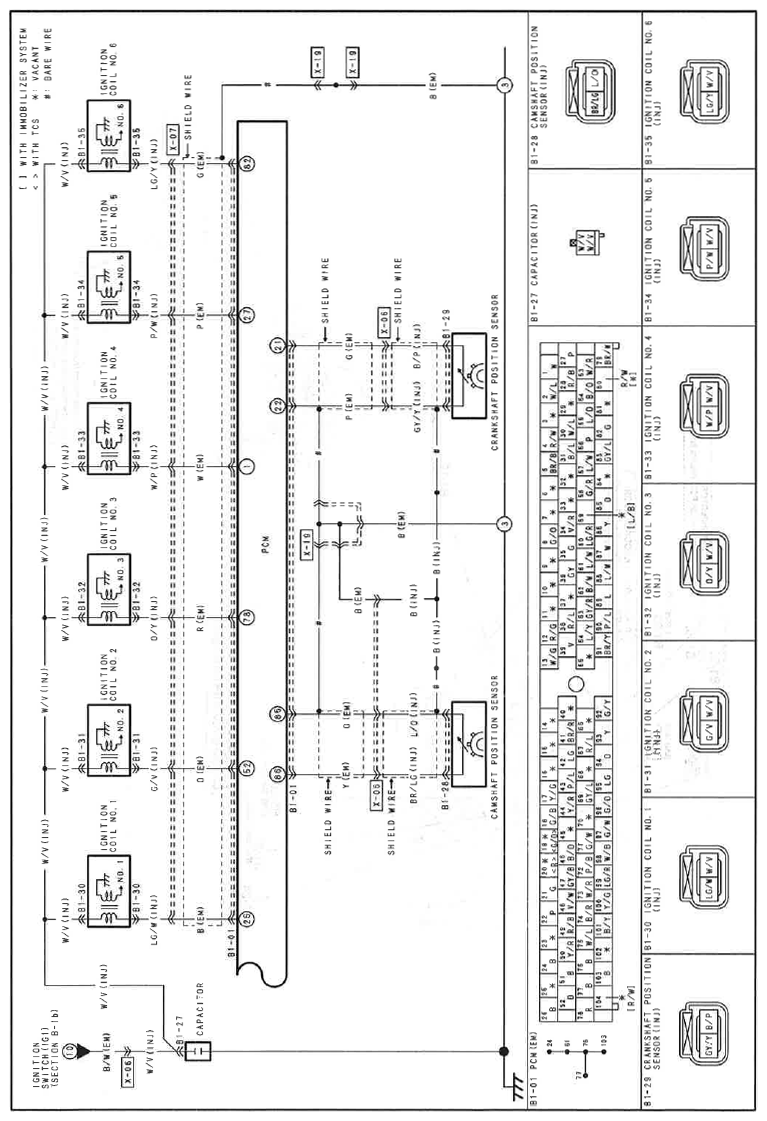

Fig 7: Engine Control System (North American Market) Wiring Diagram (B-1d; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

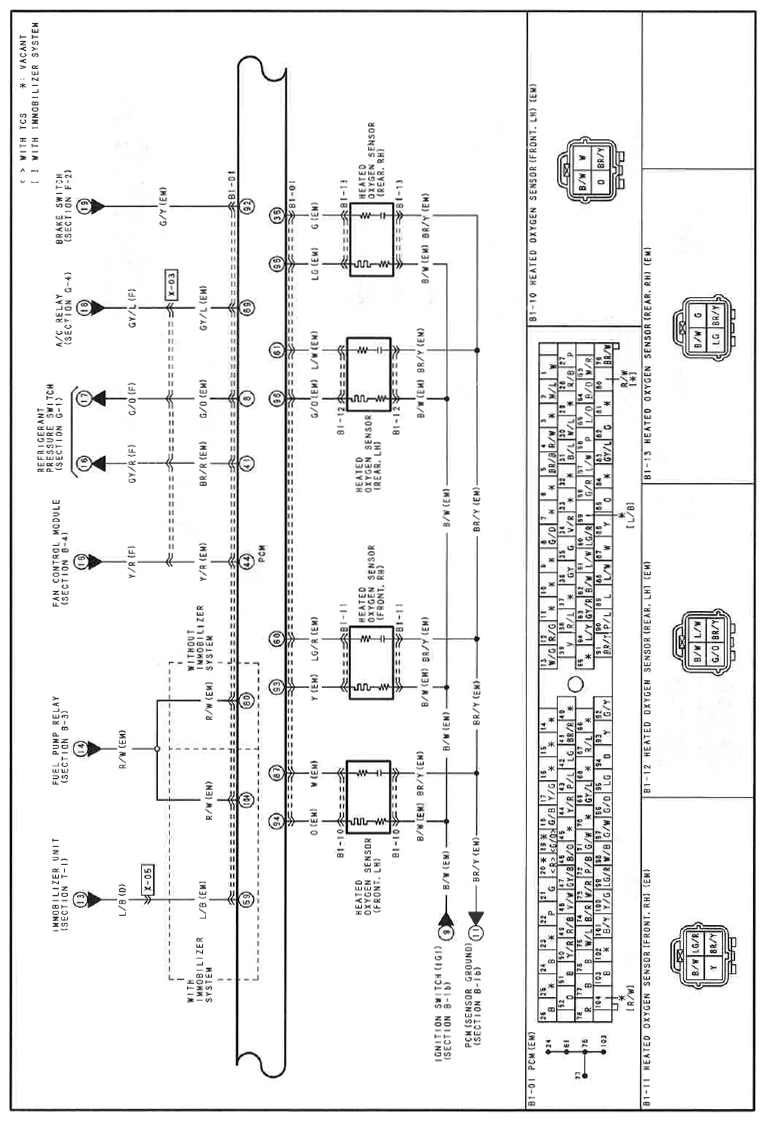

Fig 8: Engine Control System (North American Market) Wiring Diagram (B-1d; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 9: Engine Control System (North American Market) Wiring Diagram (B-1e; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 10: Engine Control System (North American Market) Wiring Diagram (B-1e; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 11: Engine Control System (North American Market) Wiring Diagram (B-1f; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 12: Engine Control System (North American Market) Wiring Diagram (B-1f; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
