Notes
Common Connector List: Notes

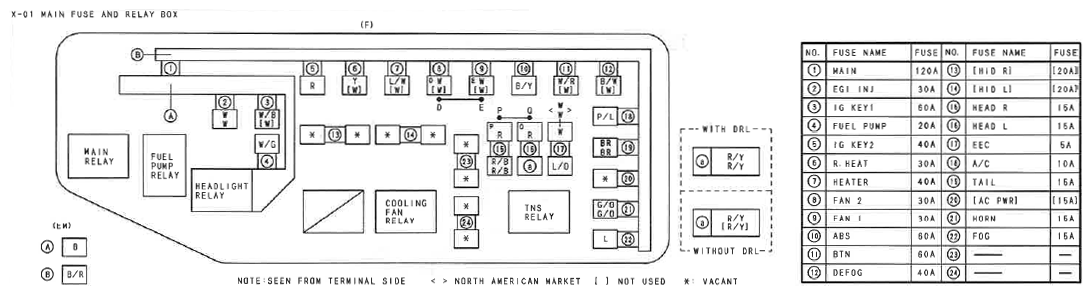

Fig 1: Fuse & Relay Box Components With Common Connector Terminal (X-1; 1 Of 5)
Courtesy of MAZDA MOTORS CORP.
Main Fuse & Relay Box Identification Legend
RELAY DESCRIPTION
Main relay
Fuel pump relay
Headlight relay
Cooling fan relay
TNS relay

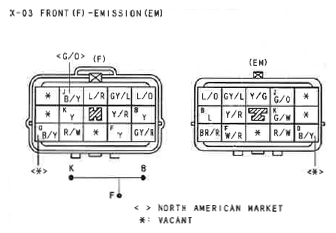

Fig 2: Common Connector Terminal (X-1; 2 Of 5)
Courtesy of MAZDA MOTORS CORP.

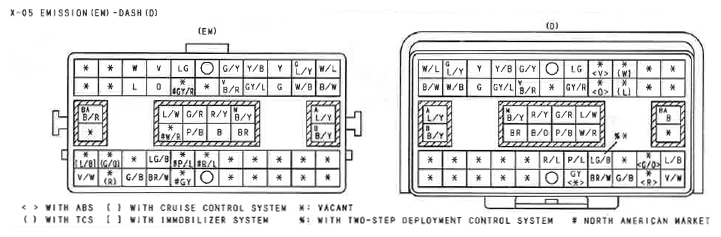

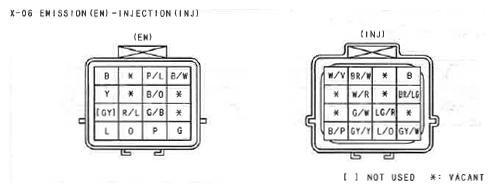

Fig 3: Common Connector Terminal (X-1; 3 Of 5)
Courtesy of MAZDA MOTORS CORP.

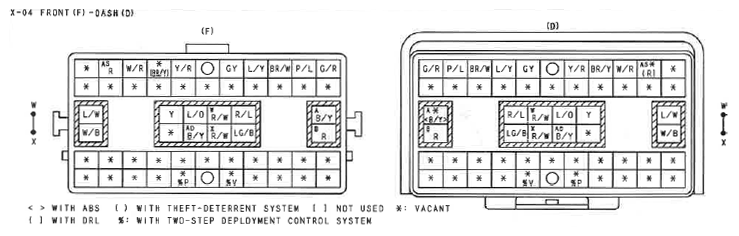

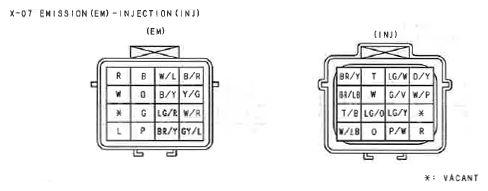

Fig 4: Common Connector Terminal (X-1; 4 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 5: Common Connector Terminal (X-1; 5 Of 5)
Courtesy of MAZDA MOTORS CORP.

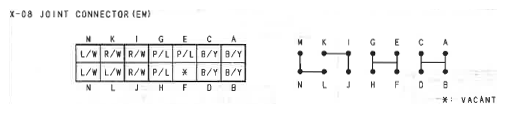

Fig 6: Common Connector Terminal (X-2; 1 Of 5)
Courtesy of MAZDA MOTORS CORP.

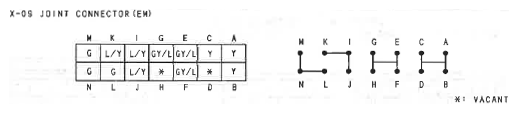

Fig 7: Common Connector Terminal (X-2; 2 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 8: Common Connector Terminal (X-2; 3 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 9: Common Connector Terminal (X-2; 4 Of 5)
Courtesy of MAZDA MOTORS CORP.

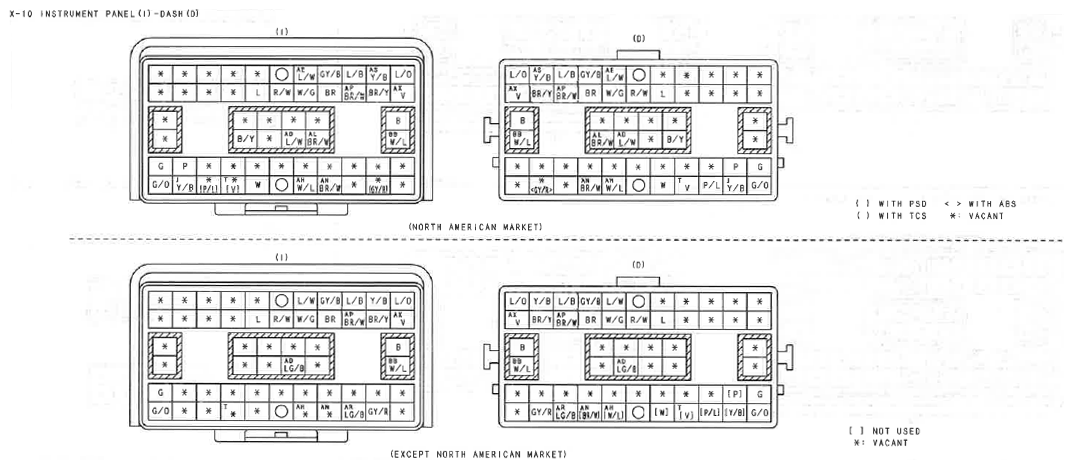

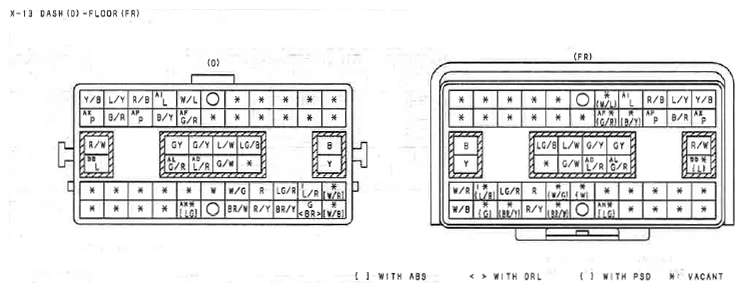

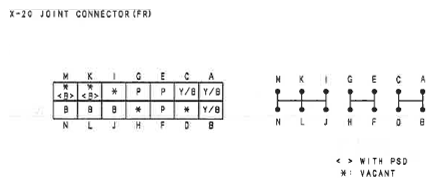

Fig 10: Common Connector Terminal (X-2; 5 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 11: Common Connector Terminal (X-3; 1 Of 6)
Courtesy of MAZDA MOTORS CORP.

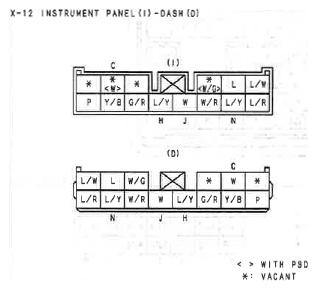

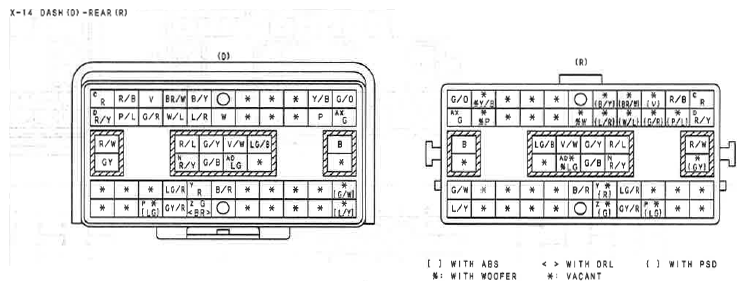

Fig 12: Common Connector Terminal (X-3; 2 Of 6)
Courtesy of MAZDA MOTORS CORP.

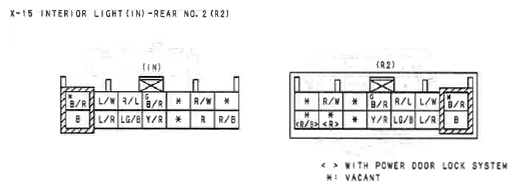

Fig 13: Common Connector Terminal (X-3; 3 Of 6)
Courtesy of MAZDA MOTORS CORP.

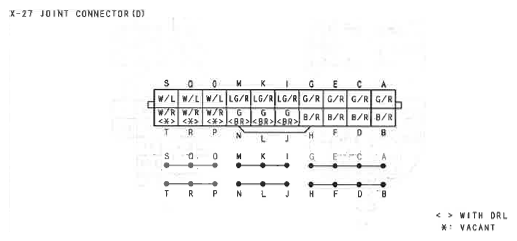

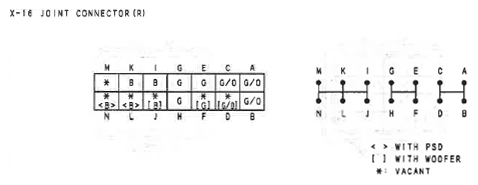

Fig 14: Common Connector Terminal (X-3; 4 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 15: Common Connector Terminal (X-3; 5 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 16: Common Connector Terminal (X-3; 6 Of 6)
Courtesy of MAZDA MOTORS CORP.

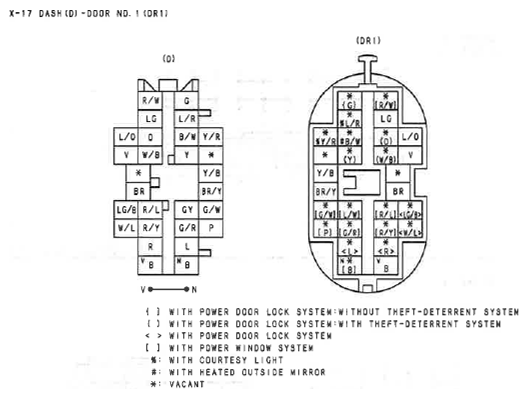

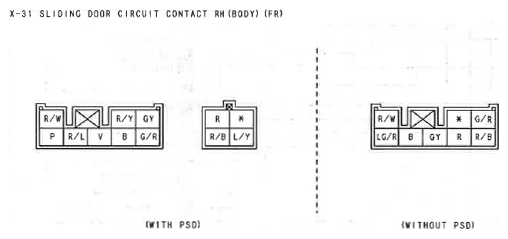

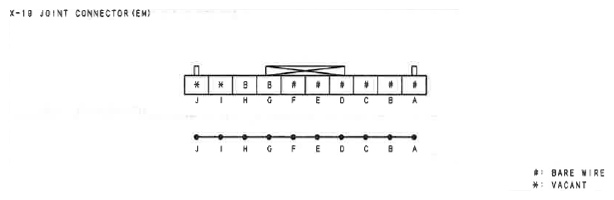

Fig 17: Common Connector Terminal (X-4; 1 Of 6)
Courtesy of MAZDA MOTORS CORP.

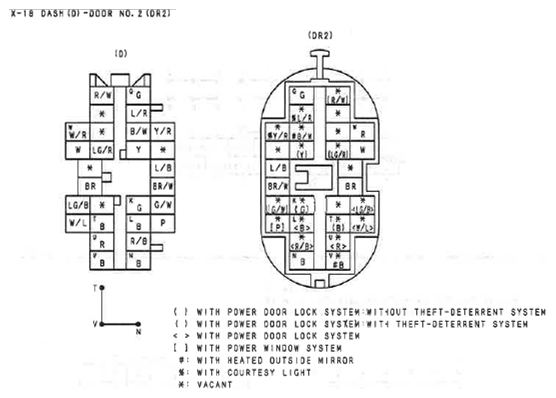

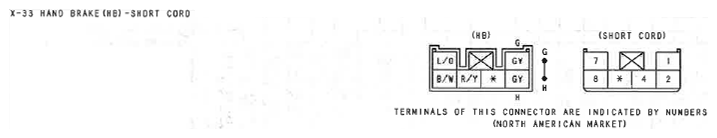

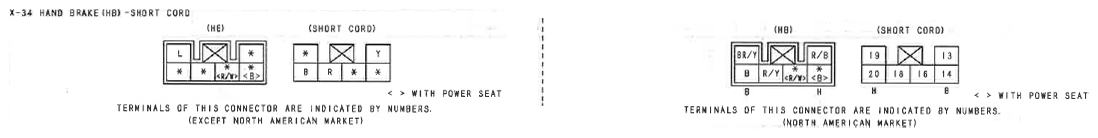

Fig 18: Common Connector Terminal (X-4; 2 Of 6)
Courtesy of MAZDA MOTORS CORP.

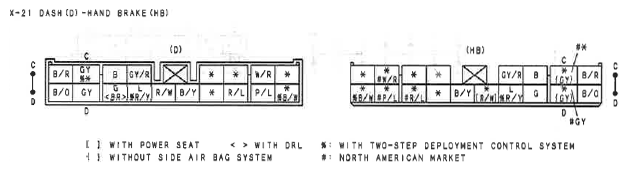

Fig 19: Common Connector Terminal (X-4; 3 Of 6)
Courtesy of MAZDA MOTORS CORP.

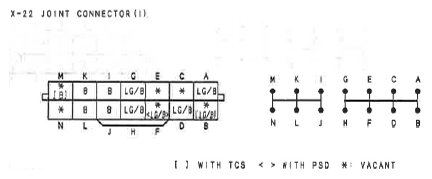

Fig 20: Common Connector Terminal (X-4; 4 Of 6)
Courtesy of MAZDA MOTORS CORP.

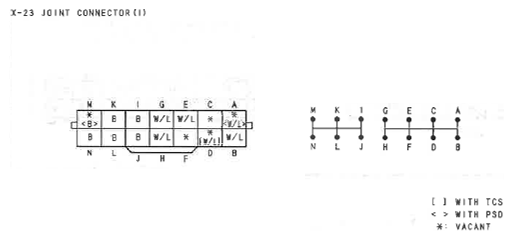

Fig 21: Common Connector Terminal (X-4; 5 Of 6)
Courtesy of MAZDA MOTORS CORP.

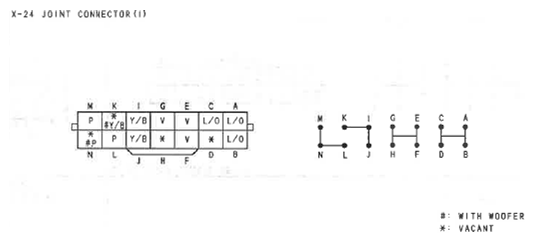

Fig 22: Common Connector Terminal (X-4; 6 Of 6)
Courtesy of MAZDA MOTORS CORP.

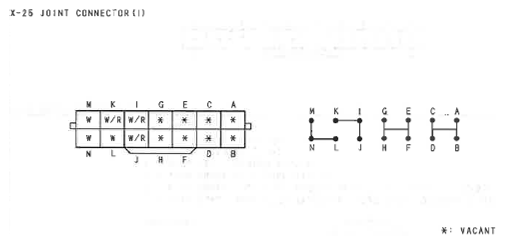

Fig 23: Common Connector Terminal (X-5; 1 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 24: Common Connector Terminal (X-5; 2 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 25: Common Connector Terminal (X-5; 3 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 26: Common Connector Terminal (X-5; 4 Of 6)
Courtesy of MAZDA MOTORS CORP.

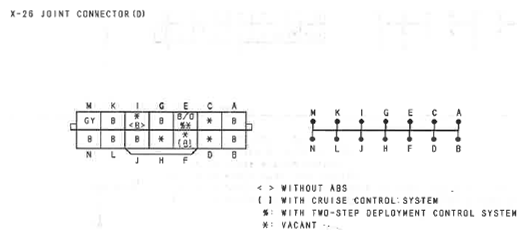

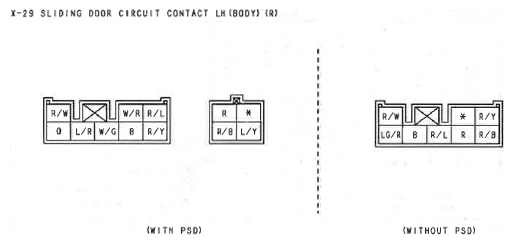

Fig 27: Common Connector Terminal (X-5; 5 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 28: Common Connector Terminal (X-5; 6 Of 6)
Courtesy of MAZDA MOTORS CORP.

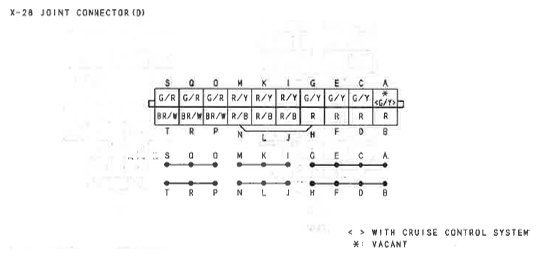

Fig 29: Common Connector Terminal (X-6; 1 Of 6)
Courtesy of MAZDA MOTORS CORP.

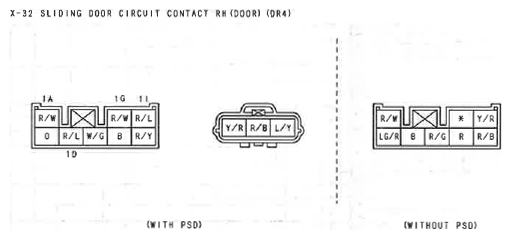

Fig 30: Common Connector Terminal (X-6; 2 Of 6)
Courtesy of MAZDA MOTORS CORP.

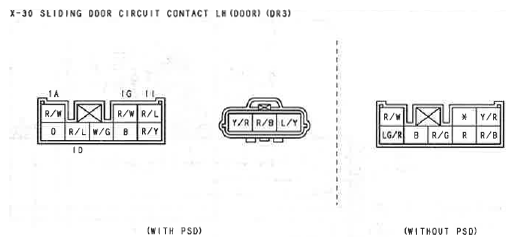

Fig 31: Common Connector Terminal (X-6; 3 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 32: Common Connector Terminal (X-6; 4 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 33: Common Connector Terminal (X-6; 5 Of 6)
Courtesy of MAZDA MOTORS CORP.
Fig 34: Common Connector Terminal (X-6; 6 Of 6)
Courtesy of MAZDA MOTORS CORP.
