Wiring Diagrams
>>
OEM Wiring Diagram
>>
Body Related System
>>
A/C Compressor Control
A/C Compressor Control

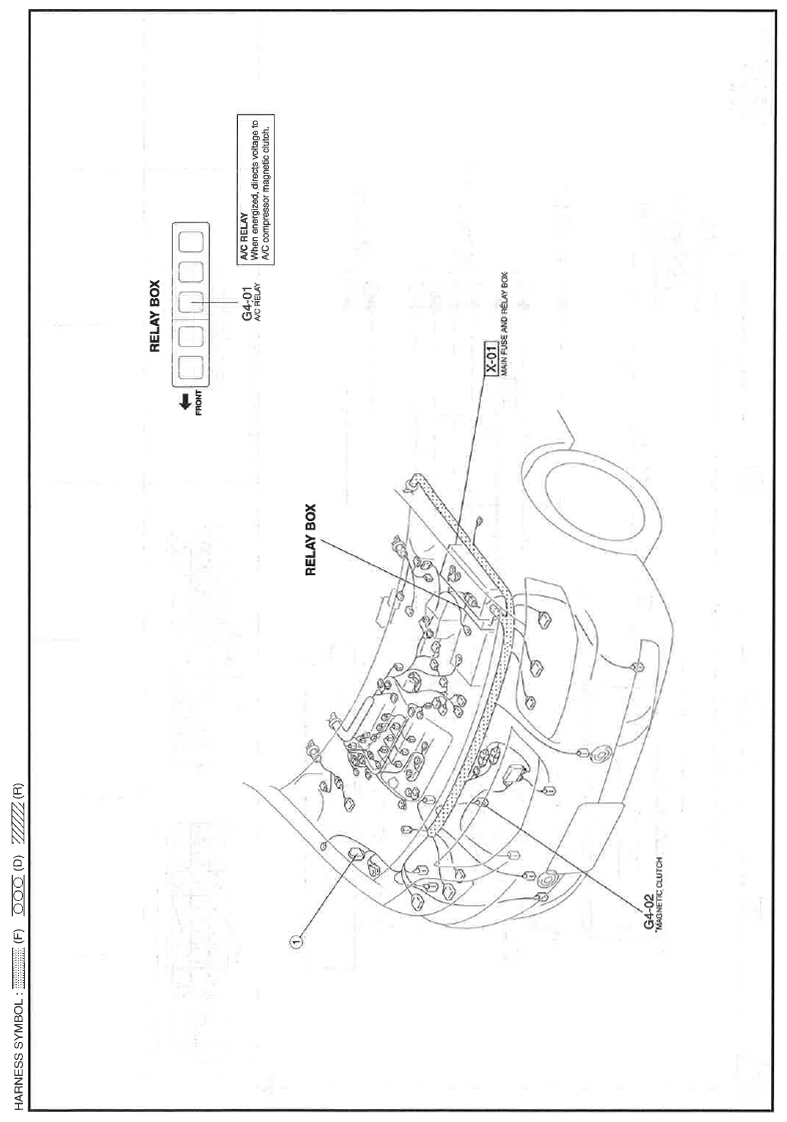

Fig 1: A/C Compressor Control Wiring Diagram (G-4; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

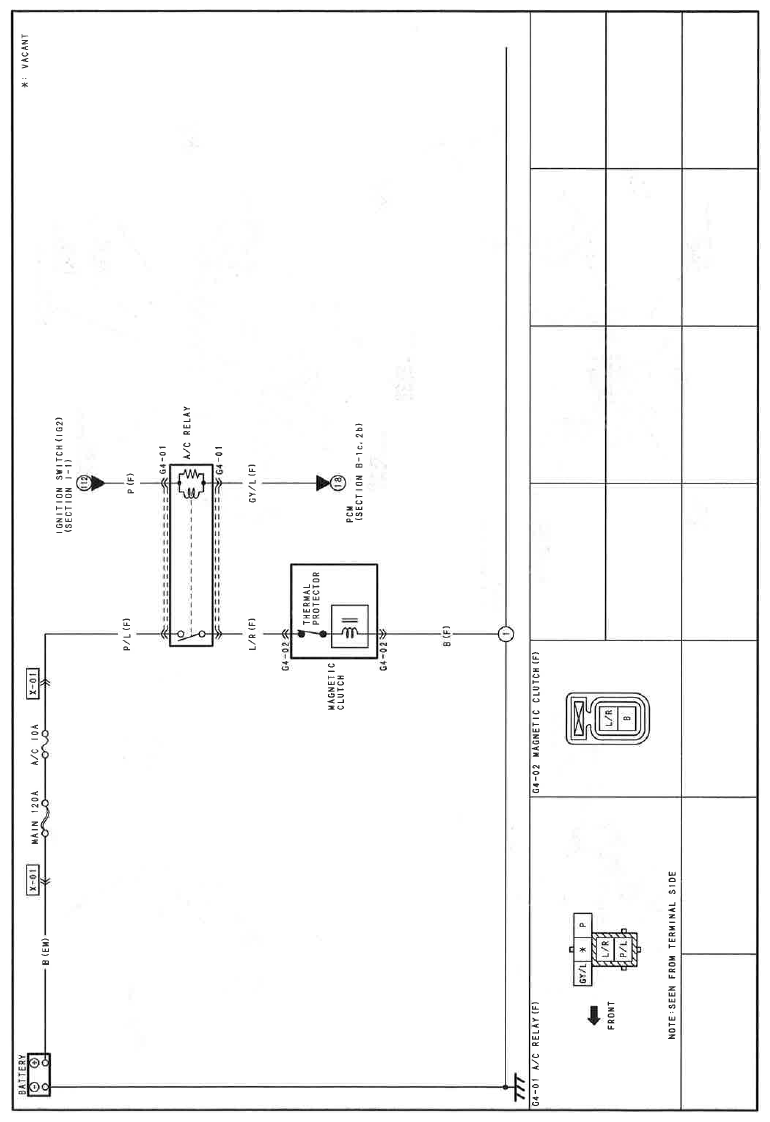

Fig 2: A/C Compressor Control Wiring Diagram (G-4; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
