Power Sliding Door System Connector End View

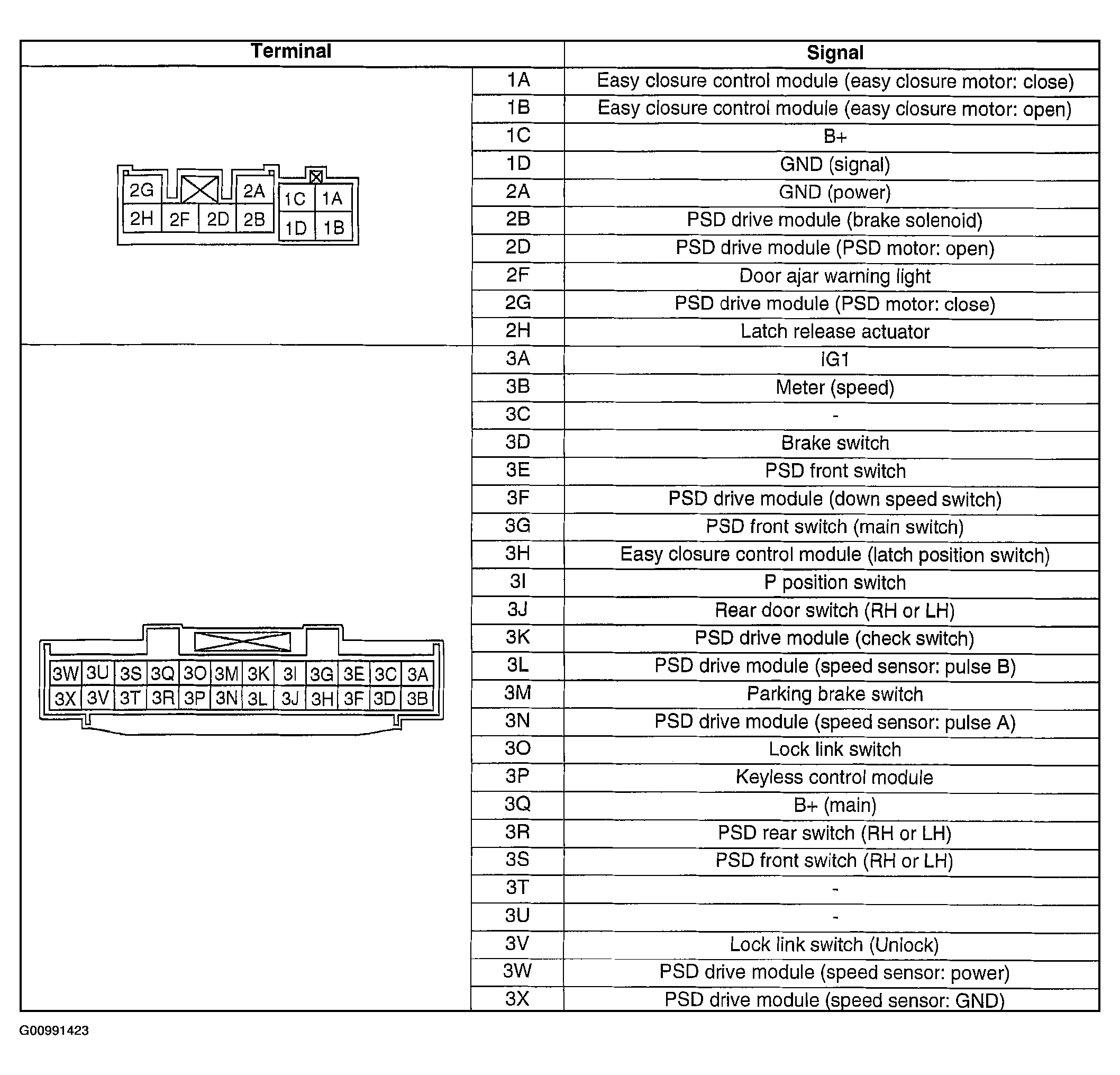

Fig 1: Power Sliding Door System Connector End View

G00991423

Courtesy of MAZDA MOTORS CORP.
