Latch Position Switch Connector End View

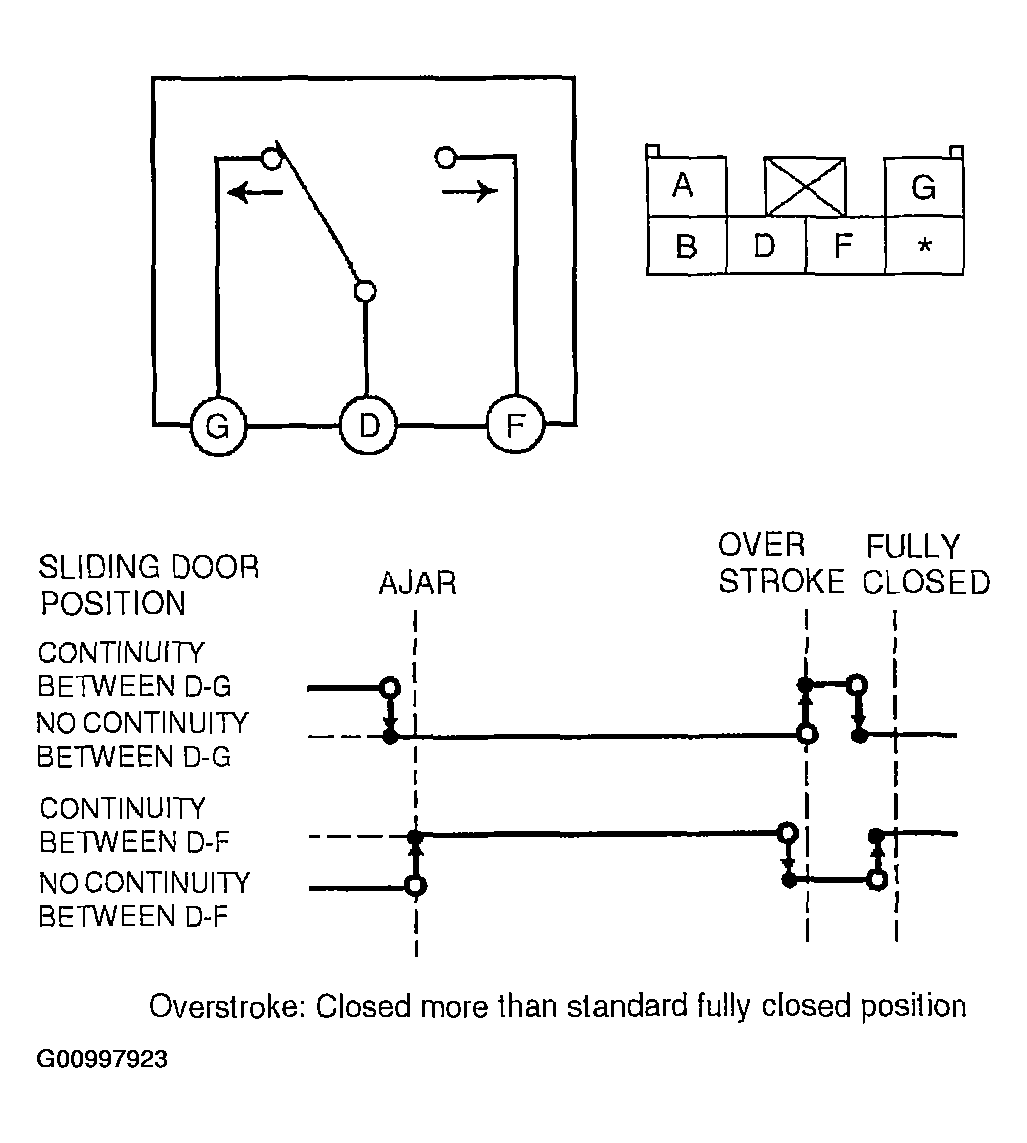

Fig 1: Latch Position Switch Connector End View

G00997923

Courtesy of MAZDA MOTORS CORP.
